Clear view pallet fork carrier 2 t with EURO mount, with 4 welded-in bushings to accommodate front loader tines with M22 thread (FAIE No. 17706). Load capacity 2000 kg, beam width 1200 mm. Suitable for forks ISO 2A and ISO 2B.

To accommodate FEM 2/ISO 2 pallet fork carrier frames.The hydraulic hold-down device can be quickly attached and removed from the fork carrier using a clamp connection. Including hydraulic hoses and connectors, opening width 1340mm, weight 75kg, pallet fork carrier mount ISO-2/FEM2, conical mount, width 383mm.

Quick change frame basic kit with side locking. For welding on wheel loader consoles so that a transition from the type-specific mount to the EURO mount can be made. With 20 mm thick side panels. Sandblasted surface.

​Quick and easy coupling and uncoupling for implements on category 2 (85 cm) and 3 (102 cm) front loaders. The upper mounting bolts can be repositioned to allow individual tilt angle adjustment. The quick-change frame also has a mechanical central locking system. Mounting pins on the front loader side 30 mm, mounting shaft on the implement side 40 mm, mounting width of the front loader arm minimum 855 mm inside and maximum 1120 mm outside, locking pin Ø 20 mm, total width 1165 mm, weight 57 kg. With a load centre of gravity of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame is suitable as a replacement for OEM front loader change frames.

​Quick and easy coupling and uncoupling for implements on category 2 (85 cm) and 3 (102 cm) front loaders. The upper mounting bolts allow individual tilt angle adjustment by repositioning. The quick-change frame also has a hydraulic locking mechanism. The hydraulic hose lines with a length of 1.5 m are included in the scope of delivery. The lines have a connection with an M18x1.5 mm union nut - 12L connection. Mounting pin on the front loader side 30 mm, mounting shaft on the implement side 40 mm, mounting width of the front loader arm minimum 855 mm inside and maximum 1120 mm outside, locking pin Ø 20 mm, total width 1165 mm, weight 53 kg. With a load centre of gravity of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame is suitable as a replacement for OEM front loader change frames.

The round bale fork can be adjusted hydraulically to different bale sizes.Gentle treatment of the silage bales thanks to rotating steel tubes attached to the heavy-duty tine 1200mm. After removing the steel pipes, the heavy-duty tines can be used to pick up bales. Attachment to the front loader via Euro mount or attachment to the three-point possibleLoad load max. 1000kgOpening width 550-1700 mmScope of delivery: support frame including hydraulic cylinder and hoses with coupling, heavy-duty tine 1200mm with attached, rotating steel tubes, weight 140 kg.

For converting the mechanical locking to a hydraulic locking of the implements with a double-acting cylinder. Including 1.5 m hose, connection M18x1.5/12L union nut.In conjunction with guide no. 103099 (see accessories) you can attach this conversion kit to any quick-change frame. The installation length L(min) is 714mm. With the stroke of 150mm, the maximum length L(max) is 864mm. The locking bolt has a diameter of 20mm.We would like to point out that the hydraulic control circuit for the locking cylinder has a flow rate of 10-15L/min. and the maximum pressure should be limited to 160bar.

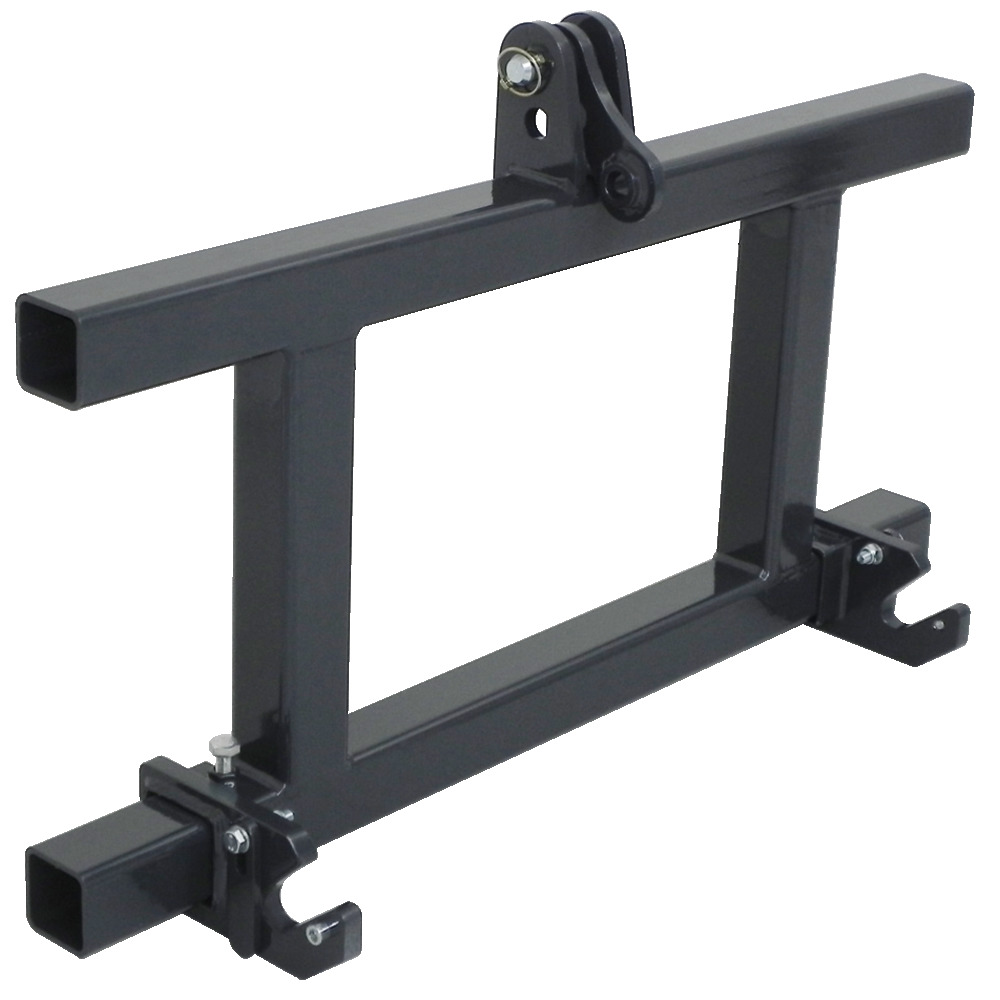

For welding on consoles or mounting hooks from different manufacturer systems. Lower link hook Cat.2 adjustable in width from 800 mm to 1150 mm.

Suitable adapters make it possible to rationalise the use of existing machines, implements and tools. With the three-point adapter, tools and implements with EURO mountings that are suitable for front loader attachment can be used on the rear or front hydraulics. Bale forks, manure forks, shovels etc. can therefore be used universally.The tools and implements with Euro attachment can also be used with tractors without front loaders. Pick-up height 110 mmLoad capacity 1000 kgWeight 70 kg

Suitable adapters make it possible to rationalise the use of existing machines, implements and tools. With the three-point adapter, tools and implements with EURO mountings that are suitable for front loader attachment can be used on the rear or front hydraulics. Bale forks, manure forks, shovels etc. can therefore be used universally.The tools and implements with Euro attachment can also be used with tractors without front loaders. Pick-up height 300 mmLoad capacity 1500 kgWeight 70 kg

For standard front loader tines and large bale tines with M22 thread, FAIE order no. 9437, 18614, 17706, 18597. Max. load 400 kg at a distance of 1000 mm from the frame. The tine carrier is suitable for fork carriers with ISO-2 / FEM-2 (oblique guidance of the fork tines) hanging dimensions. The height of the fork carriage is 407mm.

For heavy-duty tines with M28 thread, FAIE No. 15062, 7275, 7277, 18596. Max. load 500 kg at a distance of 1000 mm from the frame. The tine carrier is suitable for fork carriers with ISO-2 / FEM-2 (oblique guidance of the fork tines) hanging dimensions. The height of the fork carriage is 407mm.

The universal shovel with a welded EURO mount is well suited for light earth moving, for loading and unloading free-flowing bulk material and silage. The additional wear plates and stiffeners increase the mechanical stability of the blade. The high-quality scraper edge made of hardened steel 500 HB is particularly wear-resistant. Thanks to the position indicator on both sides, you always have the working height of the universal shovel in view.Steel sheet with 4 mm thickness, powder-coatedwith EURO mount for front loader additional wear plates on the side and on the undersidehardened scraper edge HB 500visual display on both sides

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments at the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Suitable for Weidemann Hoftrac and wheel loaders, Wacker-Neuson wheel loadersDelivery: 1 pair and screw set

for welding, 40.2x38x322 mm, 1 pair
