for hydraulic device operation with 1 cylinder to the quick-change frame. The mounting kit is delivered pre-cut in a piece of sheet metal (962x150 mm). For assembly, only the remaining webs are cut through so that the individual parts can be welded. Sheet thickness 15 mm. Delivery corresponds to the parts colored red.

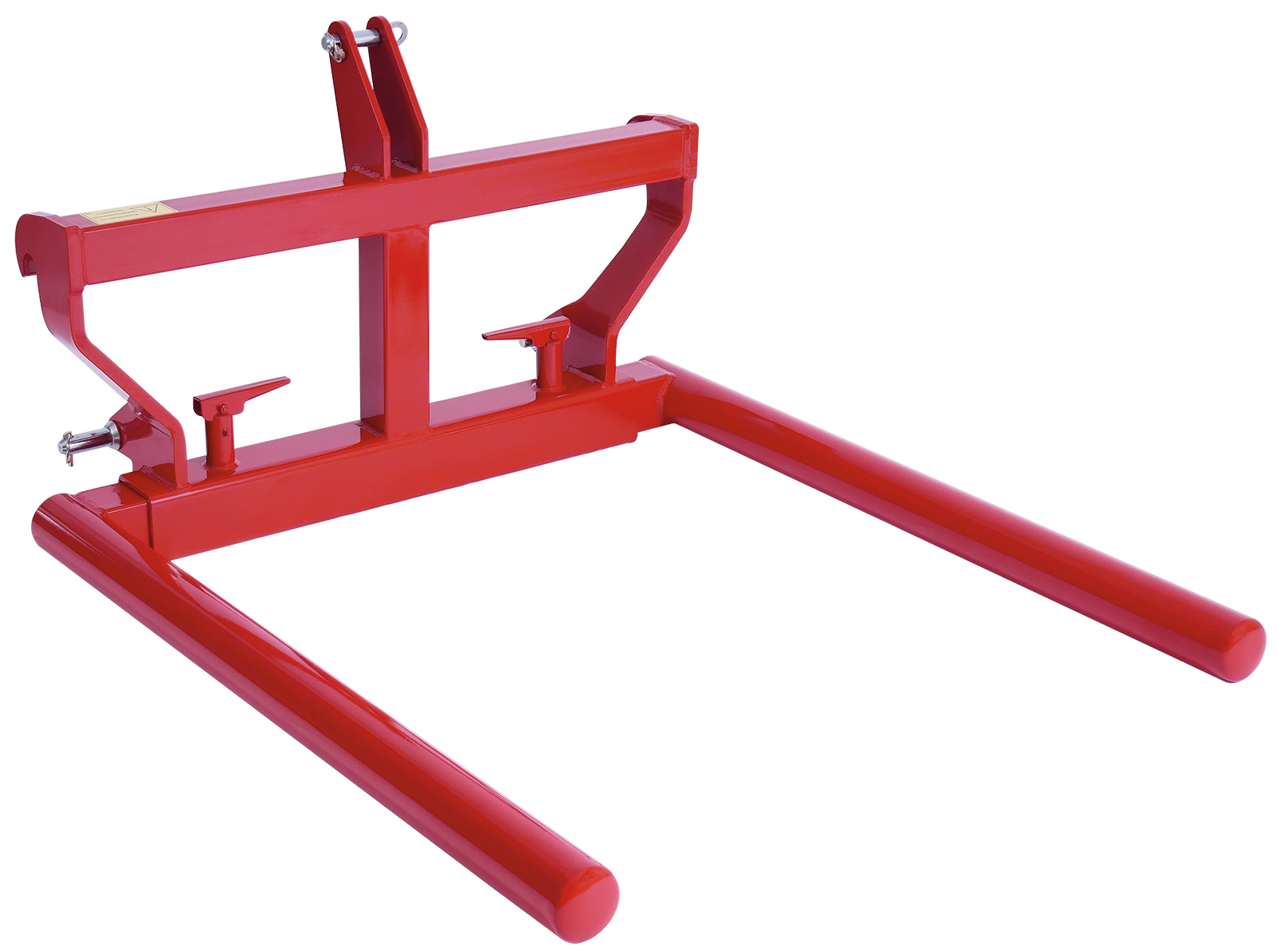

Mechanically adjustable fork with 1200 mm long support tubes. The support tubes can be folded up for road transport.With EURO and three-point linkage for front and rear operation, opening width 900-1100 mm adjustable in 50 mm steps, bale size 900-1500 mm, material fine-grained steel QSTE380, weight 90 kg, max. load 1000 kg.Version with support tubes

Width 1500 mm, frame height 900 mm, frame profile tube 80x80 mm, weight 110 kg.

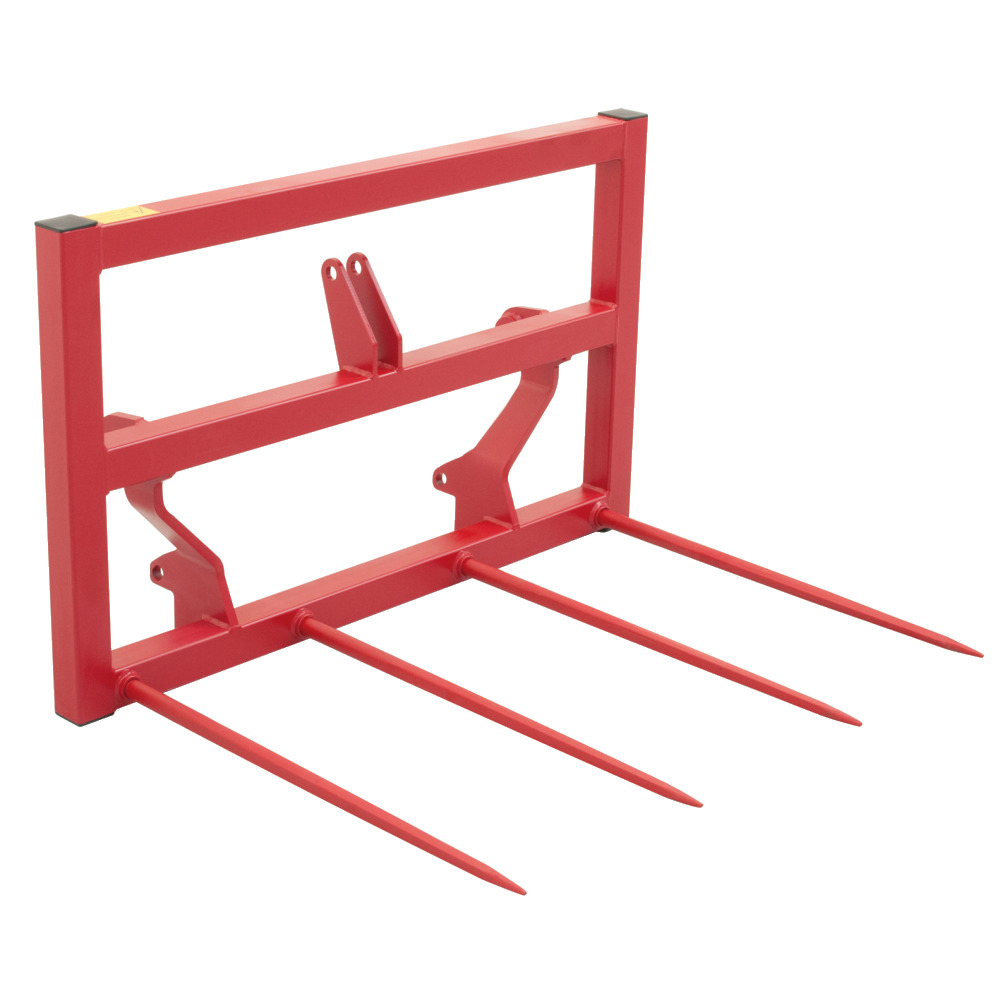

High-quality spring steel skewers, 1100 mm long, thick-walled skewer support tube with welded-in conical sleeves, distance between the tines 680mm, frame size 1080x500 mm, load capacity 1000 kg, weight approx. 58 kg.Without accessories for the three-point attachment.

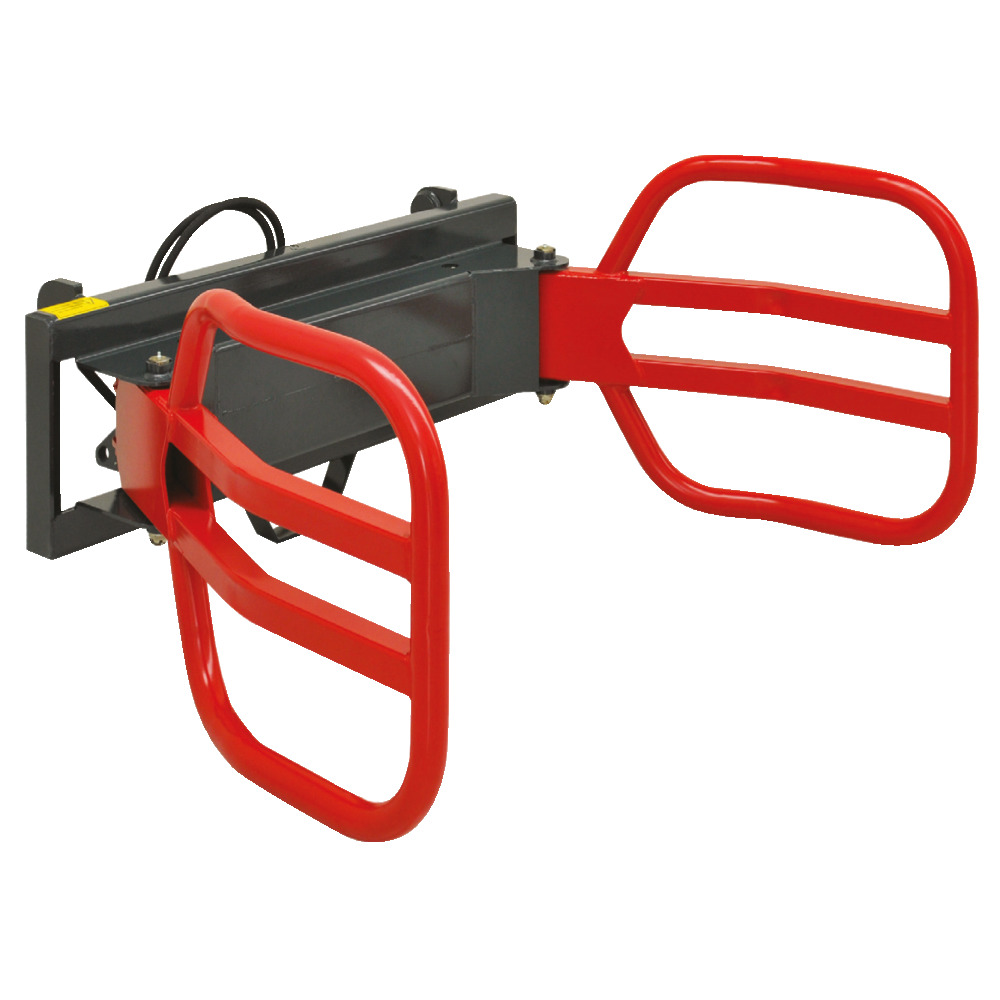

The latest generation of bale tongs is even more stable and robust. For use with foil bales, all components in contact with the bale are rounded and prevent any damage in advance. The gripping arms are also rounded at the front and back and are mounted at the pivot points with induction-hardened, internally lubricated bolts. The wall thickness of the pipes was also increased. These are now manufactured continuously from the cylinder to the end of the gripper arms. This measure made it possible to increase the stability of the gripper arms. All grease nipples are quickly accessible.Includes 1.5 m hydraulic hoses with connector. For round bales with a diameter of 0.9 m to 1.5 m, maximum bale weight 1000 kg, gripper arm compensation - no offset of the bales when picking up, even pressure on both sides, favorable center of gravity close to the tractor/tractor, weight 180 kg.

The latest generation of bale tongs is even more stable and robust. For use with foil bales, all components in contact with the bale are rounded and prevent any damage in advance. The gripping arms are also rounded at the front and back and are mounted at the pivot points with induction-hardened, internally lubricated bolts. The wall thickness of the pipes was also increased. These are now manufactured continuously from the cylinder to the end of the gripper arms. This measure made it possible to increase the stability of the gripper arms. All grease nipples are quickly accessible.Includes 1.5 m hydraulic hoses with connector. For round bales with a diameter of 0.9 m to 1.5 m, maximum bale weight 1000 kg, gripper arm compensation - no offset of the bales when picking up, even pressure on both sides, favorable center of gravity close to the tractor/tractor, weight 180 kg Prepared for screwing or welding on mounting brackets for various makes.

With FEM 2 / ISO 2 mount for pallet fork carrier frame. With 2 carrier arms, a load of up to 1500 kg and a big bag size of up to 1000x1000 mm can be accommodated.Outreach: 900 mmWeight: 35 kgReception on pallet fork carrier: FEM 2 / ISO 2 Height fork carrier: 407 mm

Load capacity 1500 kg when using all 4 hooks, for big bags 900x900 mm and 1000x1000 mm, color anthracite gray, dimensions (LxWxH): 1275x1050x860 mm, weight: 90 kg

Maximum flexibility for your business: The Schneider pallet fork carrier – the multi-tool for front and rear loaders! Turn your front loader into a fully-fledged logistics professional and save yourself the cost of investing in an additional forklift. Whether it’s bulky goods, pallets or big bags – the robust Schneider pallet fork carrier handles any load with ease. Your benefits at a glance: • Extreme load-bearing capacity: Equipped with forged forks made from high-strength steel, this carrier guarantees maximum stability in tough everyday working conditions. The practical FEM2A quick-release coupling allows the tines to be adjusted to the desired width in no time at all. • Maximum compatibility: Choose between the classic Euro mount or connections for Weidemann and Schäffer farm and telescopic loaders to suit your fleet. Thanks to an adapter, it can even be used with the rear hydraulics. • One carrier, countless possibilities: This implement is far more than just a pallet fork. Expand its range of functions to suit your needs: Bale transport: With heavy-duty forks (e.g. Faie No. 17706) on the lower crossbar, the carrier becomes an efficient 2- or 4-way bale fork. Big bag handling: Special lifting arms make the transport of bags (900x900 mm & 1,000x1,000 mm) safe and easy. Timber industry & assembly: Use the carrier with a grapple (Faie No. 29014) for round timber or fit additional attachments such as gripping arms. Conlusion: The Schneider pallet fork carrier is the cost-effective solution for anyone who values efficiency and versatility. Upgrade now and carry out loading and unloading operations faster than ever before! Features 4 welded sockets for mounting front loader forks with M22 thread (FAIE No. 17706). Manufactured from QSTE380 fine-grain steel. Load capacity 2 t, carrier width 1200 mm, fork tines 80x40 mm FEM II standard – ISO 2A. Scope of delivery: 1 pallet fork carrier and 2 VETTER fork tines ISO 2A

The compact multi-grab shovel for universal use is suitable for loading loose or bulky goods such as manure or shrub cuttings. The screwed side panels prevent load losses. The compact multi-grab bucket is available for tractors, farm loaders and wheel loaders with a Euro mount. Thanks to the high opening width, the edge of the bucket can be moved towards a wall when the gripper is open. Total height 645 mm, blade plate 6 mm thick, including side plates, plug BG3, double scraper edge 500HB

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments from the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: 1 pair and screw set

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments at the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: including screw set

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments at the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: including screw set

Suitable for our farm loaders with perforated plate holders. 1 pair, including screw set

Suitable for Schffer wheel loaders, 40.4x41x280mm. 1 pair, including screw set

Mounting plate for Kramer Hoflader, 30.1x30.2x250mm. 1 pair, including screw set

Suitable for Schffer court loader, 41x31x280mm. 1 pair, including screw set

Suitable for Giant Hoflader, 40.5x41x310mm. 1 pair, including screw set

Suitable for Weidemann Hoflader, 40.4x38x322mm. 1 pair, including screw set

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments from the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: 1 pair and screw set

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments from the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: 1 pair and screw set

With the perforated plate (LP) holder, all common front loaders, wheel loaders, telescopic or yard loaders can be combined with our attachments.We supply the attachments from the factory with two firmly welded perforated plates. The specific mounts for the carrier vehicles are simply screwed to these. When ordering a corresponding attachment, please specify the type of relevant telescopic, yard or wheel loader.Delivery: 1 pair and screw set

Hook 40.6mm, locking eye 41mm, hole spacing 310mm, 1 pair

Hook 40mm, locking eye 31mm, hole spacing 280mm, 1 pair
