Barn ventilation & fans

?Multifan that can be installed in the side wall of buildings. Wall fans are used for agricultural purposes, for example as fans in greenhouses, pig houses, poultry houses and dairy farms. They can also be used in industry, for example as ventilation in factories and other buildings. The speed of the fans is adjustable and the fans are designed for continuous use in environments where rusting or damp conditions are common, as well as for outdoor use. 3 year guarantee.Technical data: 230 V, 50 Hz, ambient temperature -25 to +40C, protection class IP55For dimensions, see table

Compact basket fan. Ideal for use in the stable. Connection 230 volts.

Compact basket fan. Ideal for use in the stable. Connection 230 volts.

Large, powerful stable fan. Suitable for high stables (the stable fan should be installed at least 2.50 m above the ground)Technical data:Voltage: 400 voltsQuantity Blades: 3Diameter blades: 1,300 mmAir output: 40,010 m/hProtection class: IP551.5 amps< /li>630 watts50 HzWeight 41.3 kgSound level ~ 63 db(A) at 2m, 52 db(A) at 7m distanceDimensions: basket 1,390 mm, basket depth 320 mm

​Basket fans are quiet, powerful, and energy-efficient solutions for effective air circulation.They offer excellent value for money and are easy and flexible to install in any location.With over-temperature protection and uniform air circulation, they ensure a comfortable barn climate.Key Features:Quiet Operation: Ideal for noise-sensitive environmentsPowerful Performance: High air circulation for effective ventilationEnergy Saving: Reduces operating costs through efficient performanceEasy Installation: Flexible mounting in any locationOver-temperature Protection: Protection against overheatingUniform Air Circulation: Optimal air distribution across the entire areaApplications:Basket fans are ideal for use in medium to large barns.They can be suspended for both horizontal and vertical airflow. In horizontal operation, they are ideal for open and closed barns. In open barns, the airflow should be directed towards the prevailing wind direction, or cooler air should be drawn in from the north side.In enclosed barns, the fans should be connected to the supply air ventilation system.The S20 basket fan covers approximately 40 m², with a recommended distance of approximately 8 m between fans.Technical specifications:Color: blackVoltage: 220-240 V, 50 HzPower consumption: 250 WMax. current: 1.1 ASpeed: Stage 1 88%: 1,200 rpm; Stage 2 100%: 1,350 rpmAir circulation: Stage 1 88%: 13,728 m³/h; Stage 2 100%: 15,600 rpmHorizontal throw range: approx. 10 mSound pressure level at 1 m distance: 71 dB(A)Weight: 12 kgDiameter: 69 cmDepth: 20 cmProtection class: IP54Benefits for the barn climate:Fresh air: Improves the Improved air quality and a pleasant climate in the barnPrevent heat stress: The fans help regulate the temperature and prevent heat stress in the animalsReduced air and soil humidity: The even air distribution reduces humidity in the barn, contributing to a healthier environmentReduced risk of infection: Better air circulation reduces the risk of infections and diseasesAmmonia reduction: The fans help lower the ammonia level in the air, improving the air quality for both humans and animalsSupplied with hanging chain set, connection cable (approx. 1 m) and plug

​Basket fans are quiet, powerful, and energy-efficient solutions for effective air circulation.They offer excellent value for money and are easy and flexible to install in any location.With over-temperature protection and uniform air circulation, they ensure a comfortable barn climate.Key Features:Quiet Operation: Ideal for noise-sensitive environmentsPowerful Performance: High air circulation for effective ventilationEnergy Saving: Reduces operating costs through efficient performanceEasy Installation: Flexible mounting in any locationOver-temperature Protection: Protection against overheatingUniform Air Circulation: Optimal air distribution across the entire areaApplications:Basket fans are ideal for use in medium to large barns.They can be suspended for both horizontal and vertical airflow. In horizontal operation, they are ideal for open and closed barns. In open barns, the airflow should be directed towards the prevailing wind direction, or cooler air should be drawn in from the north side. In enclosed barns, the fans should be connected to the supply air ventilation system.... The S22 basket fan covers approximately 70 m²; the recommended distance between fans is approximately 12 m.Technical specifications:Color: blackVoltage: 220-240 V, 50 HzPower consumption: 280 WMax. current: 1.3 ASpeed: Stage 1 (88%): 1,200 rpm; Stage 2 (100%): 1,350 rpmAir circulation: Stage 1 (88%): 18,744 m³/h; Stage 2 (100%): 21,300 rpmHorizontal throw range: approx. 10 mSound pressure level at 1 m distance: 64 dB(A)Weight: 20.6 kgDiameter: 83.5 cmDepth: 25.5 cmProtection class: IP54Benefits for the barn climate:Freshness Air: Improves air quality and ensures a comfortable climate in the barn.Prevents heat stress: The fans help regulate the temperature and prevent heat stress in the animals.Reduced air and soil humidity: Even air distribution reduces humidity in the barn, contributing to a healthier environment.Reduced risk of infection: Better air circulation reduces the risk of infections and diseases.Ammonia reduction: The fans help lower the ammonia level in the air, improving the air quality for both humans and animals.Supplied with suspension chain set, connection cable (approx. 1 m), and plug.

These ~built-in fans can be installed in existing devices and shafts/pipes or fixed in an exhaust duct. They can be mounted both horizontally and vertically. The flexibility of the mounting makes it possible to easily modify the fan so that it is suitable for use in enclosed spaces. Suitable for agricultural use in supply and exhaust air ducts in stables.In addition, they can also be used for a wide variety of industrial applications such as warm air generators, air humidifiers, etc. Advantages: Mounting struts and impeller can be adjusted to any pipe dimension, low power consumption, electronically adjustable with a transformer, dust and splash-proof (IP55), low maintenance, low noise, 3-year guarantee...< br>Technical data: 230 V, 50 Hz, ambient temperature -25 to +40C, protection class IP55For dimensions, see table

Suitable for basket fan 123472+123474

​Designed for maximum efficiency and durability, these fans deliver outstanding performance in a variety of applications, from industrial to commercial environments.Key Features:Powerful: With impressive airflow rates and high speeds, the S01 and S03 ensure optimal ventilation, even in large spaces.Energy Efficient: Thanks to state-of-the-art technology, these fans consume less energy, resulting in lower operating costs.Durable: Robust materials and high-quality workmanship guarantee a long service life and reliable operation.Quiet Operation: Specially designed blades and optimized motors ensure quiet operation, ideal for noise-sensitive environments.Easy Installation: The fans are user-friendly and can be installed quickly and easily.Applications: For use in barns, factories, warehouses, office buildings, and other large spaces requiring efficient and reliable ventilation.Technical specifications:Color: whiteVoltage: 230 V, 50 HzPower consumption: 50 WMax. current: 0.35 ASpeed: 300 rpmAir circulation: 15,000 m³/hBlade shape: straightSound pressure level at 1 m distance: 52 dB(A)Weight: 9.5 kgBlade diameter: 142 cmHeight: 69 cm (can be shortened)Protection class: IP54

Allows continuous climate control using single-phase fan control based on temperature.Stepless TRIAC control for single-phase fans (max. 6.3 A)0-10V- Output signal for controlling: one or two fan control devices, valve flaps, heating systemsRelay outputs for controlling: alarms, heating systems, a second fanIntegrated voltage and current protection< /li>Reading out the ventilation statusWith bridging switchIncl. two temperature sensors for the inside and outside temperature Equipped with a relay output for alarm function Advantages: Even fan operation, low acquisition costs, easy installation and simple Operation, can be used in new and existing ventilation systems.Settings: Setpoint, minimum and maximum value, bandwidth. Continuously variable fan speed control (max. 6.3 A), independently programmable 0-10V output signal for air inlets or additional controllers. Integrated voltage and current protection, ventilation status reading, 100% bypass switch, including temperature sensor.Technical data: ~Controller type Triac controller, 230 V single-phase, fan Output voltage 70-230 V, fan Output current 0.5-6.3 A, IP54 plastic housing, inputs: temperature sensor, outputs: ventilation controller (6.3 A), 0-10 volts for air inlets or additional controllers. LxWxH: 205 x 235 x 120 mm

Allows continuous climate control using single-phase fan control based on temperature. - Stepless TRIAC control for single-phase fans (max. 10 A)- 0-10 V output signal for control of: One or two fan control devices, valve flaps, heating systems- Relay outputs for controlling: alarms, heating systems, a second fan- Integrated voltage and current protection- Reading out the ventilation status- With bridging switch- Incl. two temperature sensors for the inside and outside temperature- Equipped with a relay output for alarm function Advantages: Even fan operation, low acquisition costs, lighter Installation and easy operation, can be used in new and existing ventilation systems.Settings: Setpoint, minimum and maximum value, bandwidth. Continuously variable fan speed control (max. 6.3 A), independently programmable 0-10V output signal for air inlets or additional controllers. Integrated voltage and current protection, ventilation status reading, 100% bypass switch, including temperature sensor.Technical data: Controller type triac controller, 230 V single-phase, fan output voltage 70-230 V, fan output current max 10 A, IP54 plastic housing, inputs: temperature sensor, outputs: ventilation controller (10 A), 0-10 volts for air inlets or additional controllers. LxWxH: 270 x 225 x 120 mm

Electronic speed controller for smooth fan operation, easy to install and operate!Settings: Manual speed control for continuous control of single-phase fans, on and off switch with integrated signal light.Technical data : Fuse F1 (fan output) 10 A, mains power supply 230 V, 50/60 Hz, fan output voltage 30-220 V, fan output current 1-10 A, IP54 ABS housing, WxHxD: 12.7 x 20.5 x 9.5 cm, outputs: fan connection

Electronic speed controller for smooth fan operation, easy to install and operate!Settings: Manual speed control for continuous control of single-phase fans, on and off switch with integrated signal light.Technical data : Fuse F1 (fan output) 5 A, mains power supply 230 V, 50/60 Hz, fan output voltage 30-220 V, fan output current 0.8-5 A >, IP54 ABS housing, WxHxD: 9.6 x 16.4 x 8.5 cm, outputs: fan connection

​Our special clips for windbreak fabric make it easy and secure to attach and fasten a windbreak screen. They hold securely in the material thanks to the interlocking teeth. The clips offer additional stable eyelets and the option of attaching the mesh to ropes. Made of black plastic

High-quality, highly tear-resistant, and durable windbreak fabric.Versatile use for wind protection and to prevent drafts. E.g., in stables, entrances, windows, terraces, and balconies.UV-stable. Wind protection approx. 90%.Mesh size approx. 1x1 mm.Roll width 150 cm.

Rotating hanging bracket for basket fan 123470+123471

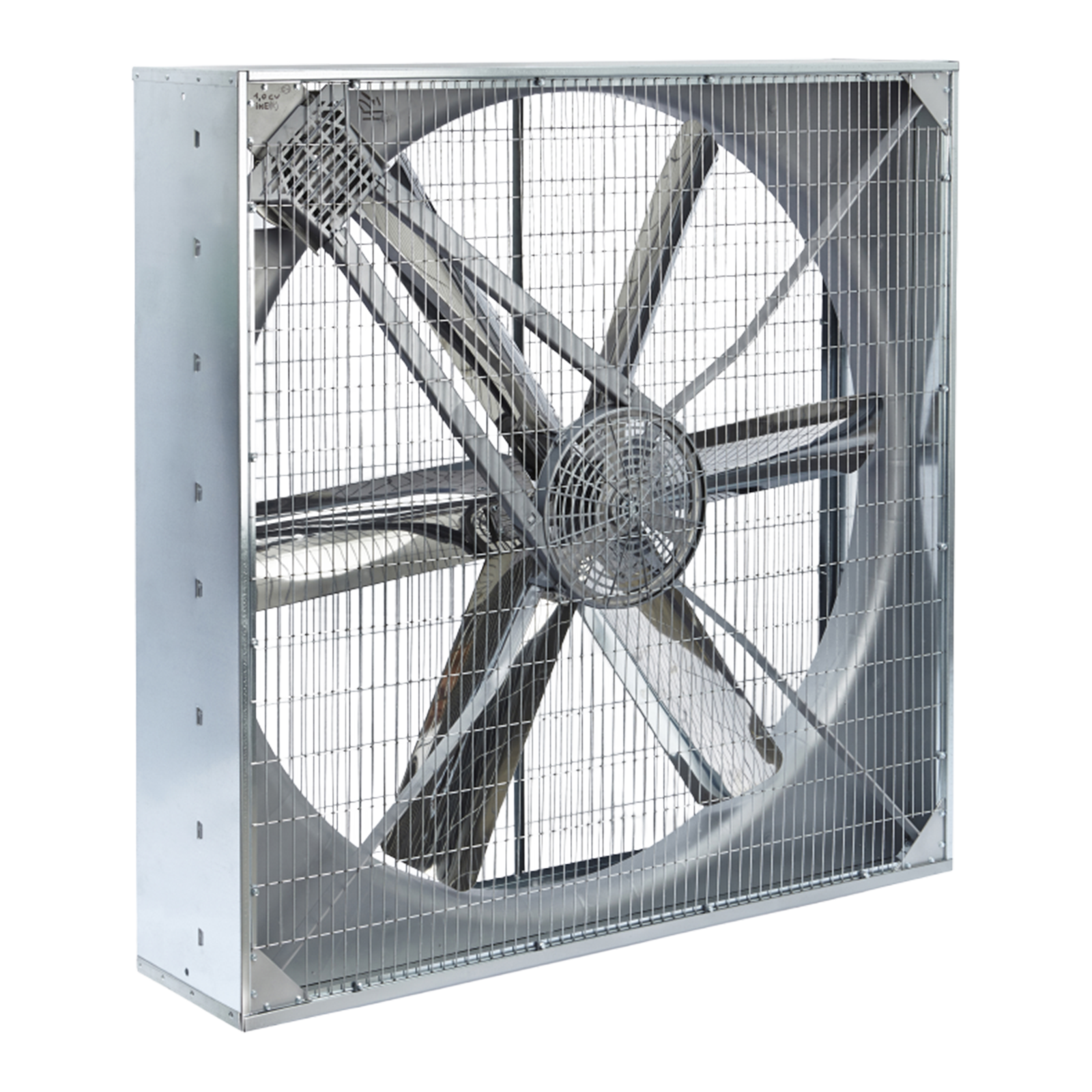

​The stable fan provides fresh air and a pleasant stable climate. Galvanized housing. Stainless steel blades. 2 eyelets for easy hanging (e.g. with chain)Technical data:Housing 138 x 138 x 32 cmWing diameter 125 cmWeight: 57 kgNumber of propellers: 6Air flow rate at 0 Pa [m³/h] 44,000 Engine speed [rpm] 1400 Propeller speed [rpm] 439 Frequency [Hz] 50 Noise level [dB] <65 Power [kW] 1.1 Voltage [V] 380Made in EUROPETranslated with DeepL.com (free version)

Due to the multifunctional design and the high air output, these fans have a wide range of uses~ From industry to agriculture, can be used both indoors and outdoors. It is stackable, easy to transport and has a two-sided grid. Delivery without cable and plug! Application options: Industry (extraction of warm air, machine cooling, ...), animal husbandry (additional ventilation in extreme situations, emergency ventilation), agriculture and horticulture (drying small quantities of potatoes, air distribution in greenhouses, ...), public buildings (emergency ventilation in warm or humid weather)Technical data: 230 V, 50 Hz, ambient temperature 0C - 40C, IP55, ERP2020< br>

Thanks to the integrated chassis, this swiveling fan with integrated 3-stage controller is ideal for mobile use in agriculture or industry. The fan with a rotor diameter of 80 cm delivers a maximum air output of 15,8000 m/h at 930 rpm. Volume 56 dB(A). 230 volts, 50 Hz, protective cover IP54, 320 watts. Dimensions 90x98x37 cm (WxHxD).Technical data / performance step controller:Stage I: 12,500 m/h, 200 WStage II: 13,000 m/h, 250 WLevel III: 15,800 m/h 320 WAttention: Currently delivered in white

​The integrated chassis makes this pivoting fan with integrated 3-speed controller ideal for mobile use in agriculture or industry. The fan with a rotor diameter of 80 cm has a maximum air output of 15,8000 m³/h at 930 rpm. Noise level 56 dB(A). 230 volts, 50 Hz, protective cover IP54, 320 watts. Dimensions 90x98x37 cm (WxHxD).Special version with cooling nozzle ring. 8 nozzles with a capacity of 1 l/min ensure particularly effective cooling.Technical data / capacity Stage controller:Stage I: 12,500 m³/h, 200 WStage II: 13,000 m³/h, 250 WStage III: 15,800 m³/h 320 W

For optimal protection of fan motors against overload and phase malfunctions, stable and reliable. Delivery includes IP55 housing. Can be used as an on/off or lock switch, with adjustable current range.

With automatically opening and closing slats, color gray (RAL 7015), PVC ultraviolet protected, reinforced slats with a steel rod that functions as a pivot point. Easy wall mounting. From a width of 60.5 cm, the slats are in two parts. The specified diameter refers to the matching impellers of the fan.

​Temperature-controlled speed controller for cage fans.Product description:The S56 temperature-dependent speed controller offers two solutions in one device to maximize fan efficiency and flexibility.This innovative controller allows for both automatic speed adjustment based on temperature and manual speed setting in five stages.Key features:Automatic speed control: As the temperature rises, the fan speed automatically increases to ensure optimal ventilation.Manual setting: One of the five speed settings can be manually selected at any time. In this operating mode, the fan switches off automatically as soon as the set temperature is undershot.Operation:Control knob on the left: Set the target temperature7-way switch on the right: Select between Off, speeds 1 to 5, and Automatic modeIncludes temperature sensor: For precise temperature measurement and controlCompatibility: The S56 speed controller is suitable for fans 133451, 133452, 133453, and 133454. It can also be retrofitted into existing systems.

​This cage fan offers an airflow of 13,600 m³/h and allows for easy and flexible operation for optimal ventilation.With innovative features and a robust design, this fan is ideal for a variety of applications.Key Features:Easy Adjustment: Test the optimal settings directly and without tools.Flexible Direction: Change the direction instantly with a single movement to direct the airflow precisely where needed or distribute it indirectly via walls, floors, or ceilings.Mounting Options: The fan can be mounted on walls or fixtures and allows for one-handed 3D adjustment.Over-Temperature Protection: Protection against overheating.Robust Construction: The grille design prevents water accumulation and provides dust and splash protection according to IP54.Ease of Use: A 2-speed switch is included, and a speed controller is available as an accessory.Applications:The S16 cage fan is ideal for use in various environments that require efficient and flexible ventilation.Whether in industrial, commercial, or agricultural settings, this fan offers the perfect solution for optimal air circulation.Technical Specifications:Color: BlackVoltage: 230 V, 50 HzPower Consumption: 250 WMax. Current: 1.1 ASpeed: Stage 1 (88%): 1,200 rpm; Stage 2 (100%): 1,350 rpmAir Circulation: Stage 1 (88%): 13,728 m³/h; Stage 2 (100%): 15,600 rpmHorizontal Throw: Approx. 10 mSound Pressure Level at 1 m: 71 dB(A)Weight: 12.5 kgDiameter: 69 cmDepth: 20 cmProtection Class: IP54Includes adjustable mounting bracket, power cable (approx. 1 m), and plug
