Diesel pumps & tanks

​Two-stage threadClamping screwFor metal drums with G 2'' internal threadTechnical data:Connection thread: G 2” and M 64x4 aWidth across flats (SW): 50 mmMaterial: Steel housingDimensions LxWxH: 80 x 65 x 37 mmWeight: 0.16 kg

​Canister hand pump for 20 and 30 l canisters with high-quality steel pumping unit incl. 1.5 m rubber hose with ball shut-off valve with connection adapter for canisters with DIN 61 external threadwith 1.5 m hose with ball shut-off valve and outletFurther technical features:Immersion depth: 80 cm

Very easy to install, always informed about the fill level of the tank, ~A float is attached to the display itself, which always passes the information on to the display panel via a kind of cable. ~This gives you You can be sure that the correct values can always be read on your tank. ~In just a few simple steps, the content indicator can be adjusted to the size of your tank. ~The scope of delivery includes various scales included, so that you can use the level indicator for tanks up to a size of 2,000 liters. ~Simply attach the appropriate scale to the front of the glass of the level indicator and mount the indicator on the tank.

​Electrically driven centrifugal pump 12 VDC or 18 VDC with CAS battery system for diesel, heating oil, AdBlue® urea solution and water as a submersible pumpThe centrifugal pump with DC motor is intended for pumping the following liquids in compliance with the operating conditions specified in section 3.3:Liquids with flash point > 55 °C and viscosity < 20 cSt, e.g.- diesel fuel- biodiesel- EL heating oil- Urea solution AUS 32 (AdBlue®)- waterAny other or additional use is not intended.Technical data: Pump 12 VDC Pump 18 VDCVoltage: 12 VDC +/- 10% 18 VDC +/- 10%Fuse: 25 A -Power: 220 W 220 WCurrent consumption in normal operation: 16 A 12 ACurrent consumption with closed dispensing valve: 18 A 13.5 AProtection class: IP 68 IP 68Power supply: via battery or power supply unit with safety transformer via CAS batteryHydraulic data(with water, 20°C)Delivery pressure: max. 1.1 barZero flow rate: 40 l/minDelivery rate under nominal conditions: approx. 25 l/minOperating conditionsTemperature range: - 20 °C to + 60 °CDimensions and weightDiameter: 56 mmLength: 185 mmWeight: 0.65 k

​Suitable for increasing capacity with a 1000 l tank Faie no. 38640 or as a complete solution from tank to pump.The outlet is 1“ male - suitable for all diesel pumps with 1” female thread.Adapter, G 1“ a, G 1” a (85 358) with O-ring (89 111) and 3-way ball valve, R 1” a (18 095 393), supplied pre-assembledPress fitting (23 218)Suction hose, 1.6 m, DN 25, G 1“ a, G 1” i (23 156)Suction pipe, G 1“ i, G 2” a (23 177 951)

Suitable for 220 liter barrels.

Proven and inexpensive hand lever pump for pumping diesel, heating oil, petroleum and oils up to SAE50. 2" connection - suitable for 60/200/220L barrels and tanks such as FA38640 and FA97559. Immersion depth up to 150cm. Delivery rate at 60 strokes/min: approx. 7l/min

​Practical hand pump for pumping fuels such as petrol, diesel, heating oil, kerosene as well as radiator protection and windshield washer fluid. Delivery line approx. 0.4 L/stroke, G2” barrel screw connection and M 64x4a suitable for standard 60/200/220L barrels. Complete with discharge elbow, barrel screw connection and telescopic suction pipe incl. suction strainer adjustable from 355-955mm.

Tried and tested, inexpensive hand pump for pumping diesel and heating oil, but also suitable for engine, gear and cutting oil. Connection 2? (200 L barrels). Diving depth 120 cm, including PVC outlet hose (1 m) and outlet piece. Output approx. 12 L/min.

For diesel and biodiesel

Complete tank system for use in agriculture, commerce, sewage treatment plants, municipalities, etc. This system offers the possibility of fueling vehicles easily and cost-effectively, but also of ensuring the fuel supply to vehicles or generators in the event of a blackout. The system consists of 2 double-walled diesel tanks 998L complete with suction line, leak indicator and level indicator, a farm filling station with a self-priming 50L/min diesel pump with 550W/230Volt, 4m outlet hose (reel available as an option), a counter with total and day counter, an automatic fuel nozzle and a connecting cable 2m to the tanks. The delivery of two individual tanks ensures easy assembly/approval as well as a high level of fuel security thanks to a possible change system.<~br>~In the event of a lack of mains supply, the system is equipped with a suitable, high-quality hand crank pump as standard. Delivery takes place without assembly.

High-quality professional screw connection

Cost-effective universal pump for diesel/biodiesel, Ad/Blue (separate tap required) or water. The submersible pump can simply be inserted into the bunghole of a 200 l barrel or similar. The standard bunghole adapter ensures a clean and tight connection. Ideal for containers with 2?BSP and S70x6 thread but can also be used universally for other containers.Complete set with pump, 4m hose, 4m cable with switch and pole pliers as well as automatic nozzle for diesel. Technical data: performance. approx. 30 L/min, external dimensions of the pump 160x56mm (LxD.

Prevents longer suction time. Recommended for all diesel pumps. Connection 1?IG.

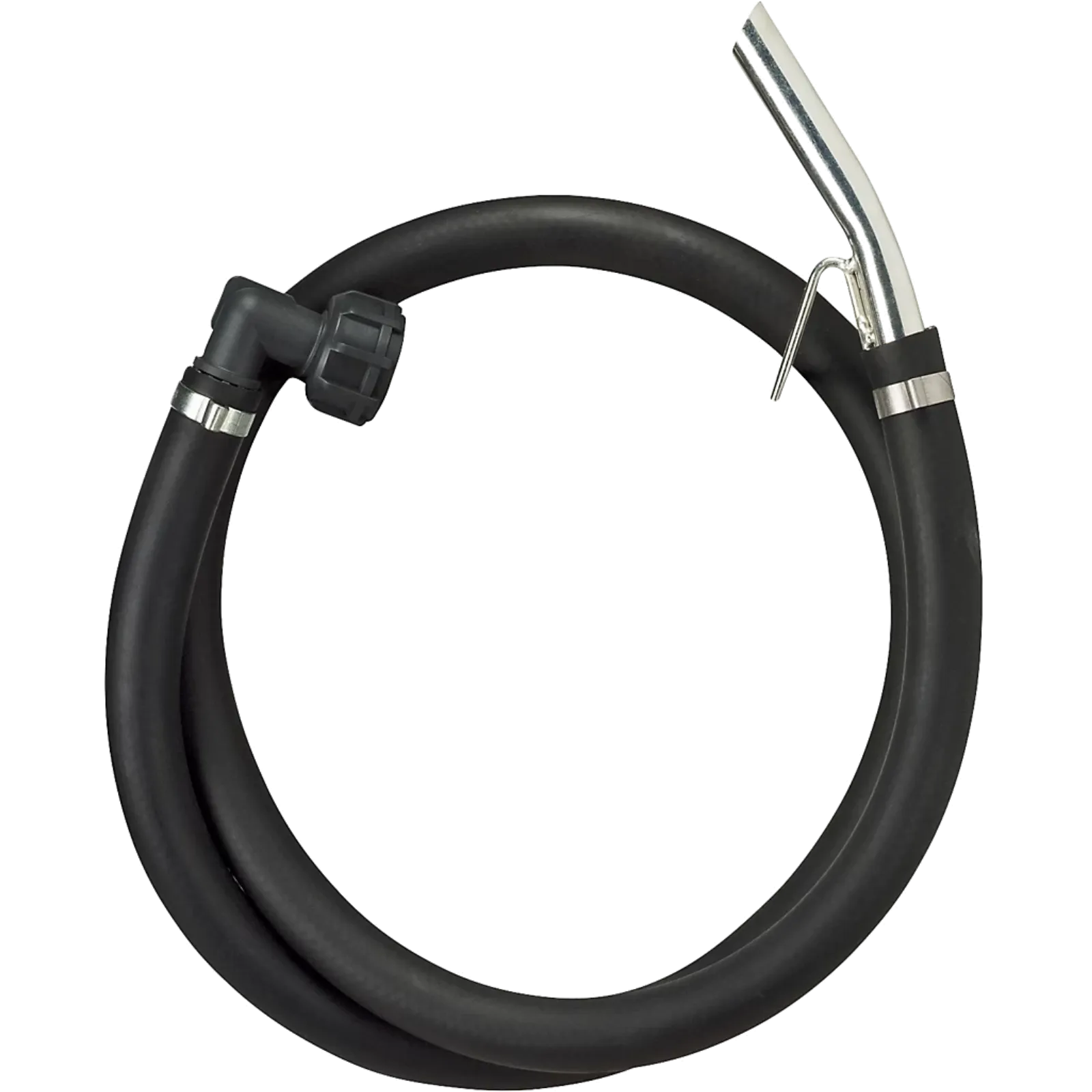

​Hose set with 1.5 m length DN19 electrically conductive hose suitable for petrol, incl. steel outlet elbow, 90° connection bend and 500 mm earthing cable with crocodile clip for petrol drum pump.

Connection set for 750 and 1000 L uni-tanks for filling with tank trucks. Complete with TW coupling, vent line and limit indicator.

Intake pipe approx. 130 cm. Complete with check valve and coupling part for direct connection to all farm filling stations with 1? thread.

Intake pipe approx. 140 cm. Complete with check valve and coupling part for direct connection to all farm filling stations with 1? thread.

This set allows you to easily connect the diesel pump to the tank. This allows you to easily mount the pump on a wall or similar in the desired position. Hose length 2m. The connection set is delivered in individual parts so that you have the opportunity to adapt the hose length individually to your needs.

Counter suitable for all common diesel pumps with daily and total counters. Deviation +/-1%, flow rates max. 120 L/min, connections 1 inch female thread, temperature range -20 to +50C. Dimensions: 220x150x220mm, weight 2.2kg.

With 2? external thread for attaching to the tank as well as a 1? external thread for mounting the pump and a 1? internal thread for the suction line. 360 rotatable. ~

For better protection in bad weather, can be attached on both sides.

Made of sturdy steel housing, smooth-running hand crank drive with high performance (approx. 30 L/min), diving depth up to 980 mm. Suitable for diesel/heating oil, engine oil, gear oil (SAE75-90) and cutting oil. Complete with barrel screw connection G2? (200 L barrels) and outlet elbow 1?.

High quality crank pump developed and manufactured by Pressol. Smooth turning operation thanks to high-quality components and an optimal gear ratio. Delivery line at 60 revolutions approx. 18L/min (diesel). Suitable for self-lubricating, non-aggressive media such as heating oil, diesel, petroleum and oils up to SAE90. The telescopic suction tube (355 - 955mm) makes it ideal for use with 60/200 and 220L barrels. Complete with outlet elbow and barrel screw connection G 2?.
