Ibc range

Suitable for a wide range of canister, barrel and IBC threads. Thread DIN61, flow 5 L/min.

For connecting a drinking bowl to an IBC tank. including flexible armored hose 70 cm.Scope of delivery:1 x armored hose 70 cm (connection 2 x 3/4" female thread)1 x adapter for IBC container incl. seal (S60x6 to 3/4" male)1 x reduction straight 3/4" male to 1/2" female 1 x double nipple 1/2" male to 1/2 "AG1 x double nipple 3/4AG x 3/4AG

Adapter for direct connection to the IBC tank with extension to a hose nozzle for direct connection to a hose.Thanks to the anti-twist nut, the adapter including hose can be easily removed from the IBC. This saves you from having to turn or dismantle ~the hose. ~

CAMLOCK male part, suitable for IBC taps with a 2" coarse thread as an outlet.Is used to connect Camlock nut couplings.Connection to the IBC: S60x6 (DN50) female thread - coarseOutlet: 2" Camlock, male< br>Measured diameter: 55-62mm

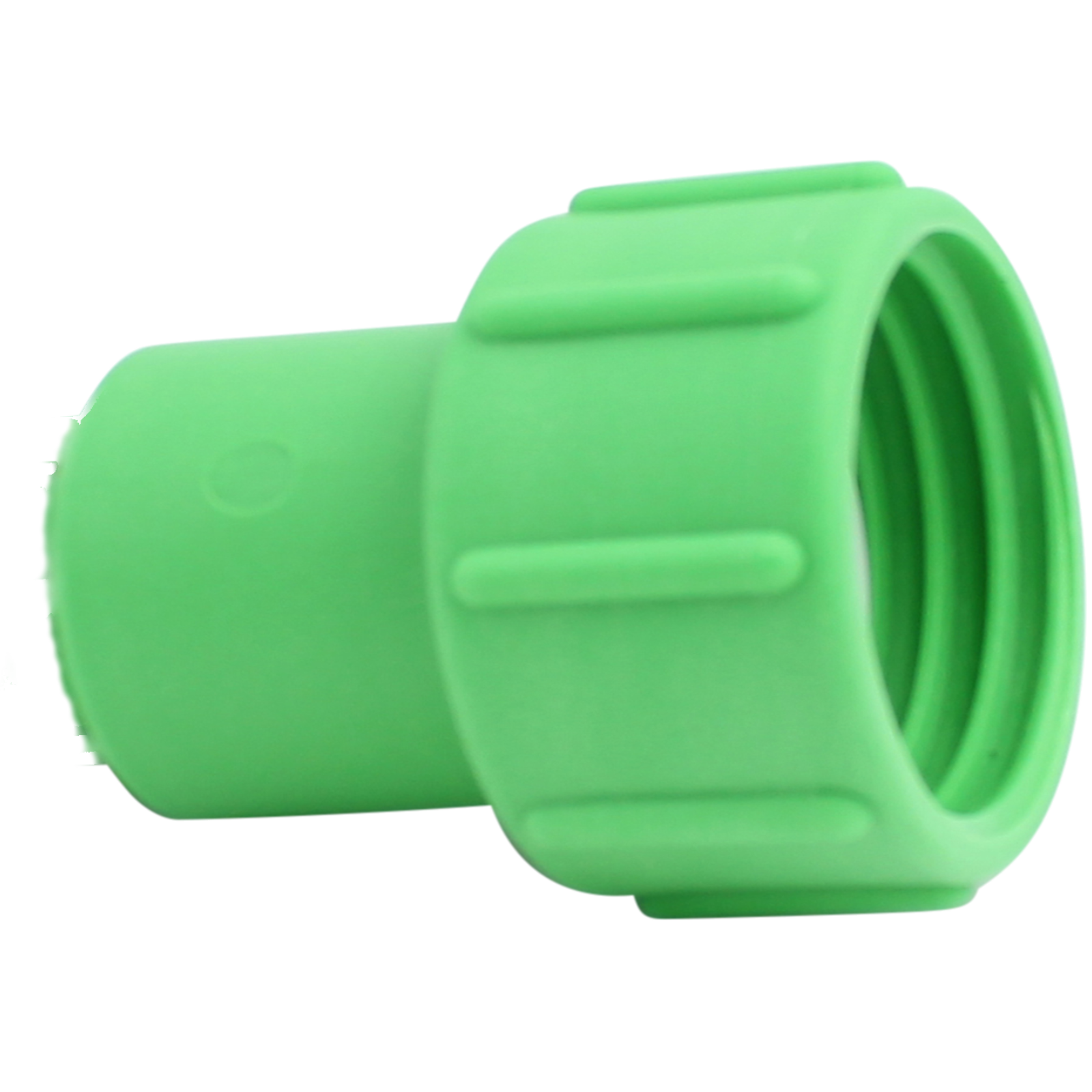

​Standard adapter from 2“ to 1” fine thread female threadOutlet: G1 inch female thread - fine

CAMLOCK male part for screwing directly onto a 2" fine thread.Connection to the IBC: 2" NPS (DN50) IT - fineOutlet: 2" NPT (DN50) AG - fineMeasured diameter: 57-62mm

The problem solver for connecting common click systems to an IBC system. This involves adapting a 2 inch IBC thread to a click system (Gardena connection). The small tap is screwed and easy to connect to the quick coupling system.Technical data: Connection to the IBC: S60x6 (DN50) IT - coarse, outlet: click system - ", measured diameter: 55- 62mm

Standard adapter from S60x6 (2", DN50) to 2" Fine thread (IG), measured diameter 55-62mm

Standard adapter from 2" DN 50 to fine thread IG.

Adapter for direct connection S60x6 (DN50) IG Grob to the IBC tank with extension to a hose nozzle for direct connection to a hose.

Transition piece from 3?IG coarse to 2?AG fine thread. Connection to IBC: S100x8 (DN80) Outlet: S60x6 (DN50) AG Coarse, measured diameter 90-100mm

A problem solver for IBCs with the outlet dimension S100x8!Creates a suitable connection on standard thread 2" coarse thread.Connection to the IBC: S100x8 (DN80)Outlet: S60x6 (DN50) AG - Coarse, measured diameter : 90-100mm

Made of high-quality spray pressure plastic, for reduction

Standard adapter from S60x6 (2" DN50) to fine thread with external thread, connection to IBC: S60x6 (DN50) IT - coarse, measured diameter: 55-62mm

made of high quality plastic, for reduction

Special adapter for IBC taps with an outlet M80x3Connection to the IBC: M80x3 female thread - fineOutlet: S60x6 (DN50) male thread - coarseMeasured diameter: 75-80mm

Adapter to create connections with a 2 inch fine thread on the IBC. Connection to IBC: S60x6 (DN50) IT coarse~ Outlet: 2 NPT (DN50) AG fine~ Measured diameter: 55-62mm

Suitable adapter and can be bridged to the standard 2-inch coarse thread.Connection to the IBC: 2" NPS (DN50) female thread - fine~ Outlet: S60x6 (DN50) AG coarse~ Measured diameter: 57-62mm

IBC adapter from 2?IG to a Storz 52-C coupling (lug spacing 66mm). The large diameter enables loss-free work with a suitable counterpart.Technical data: Connection to the IBC: S60x6 (DN50 - coarse), measured diameter: 55-62mm

Ball valve, suitable for IBC tanks with an S60x6 external thread on the inner container. With a practical aluminum union nut to protect against twisting when installing the tap on the tank. The tap is equipped with a locking bracket and a shut-off screw, which must be removed before opening for the first time.Technical data: Connection to the IBC: S60x6 (DN50) female thread - coarse, outlet: S60x6 (DN50 ) AG coarse, measured diameter: 55-62mm

High-quality ball valve for IBC system with an S75x6 external thread on the inner container. The tap has a locking bracket and a shut-off screw, which must be removed before opening for the first time. A rotating union nut made of aluminum serves as protection against rotation during assembly.Technical data: Connection to the IBC: S75x6 (DN50) IT - coarse, outlet: S60x6 (DN50) AG - coarse, measured diameter: 70-77mm

High-quality ball valve for IBC system with an S80x6 external thread on the inner container. The tap has a locking bracket and a shut-off screw, which must be removed before opening for the first time. A rotating union nut made of aluminum serves as protection against rotation during assembly.Technical data: Connection to the IBC: S80x6 (DN50) IT - coarse, outlet: S60x6 (DN50) AG - coarse, measured diameter: 74-81mm

Stable metal ball valve with IBC adapter S60x6 (2" / DN50) for connection to standard IBC valves. Standard version with fixed nut, removable nozzle, handle equipped with non-slip rubber.Technical data: Connection to the IBC: S60x6 (DN50) IT - coarse, outlet: " (19mm) hose nozzle, measured Diameter: 55x62mm

Solid metal ball valve with matching IBC adapter S60x6 (2" / DN50) for connection to standard IBC valves. Professional design with anti-twist protection so that the tap is always in the correct position. With rubberized stopcock, hose nozzle can be removed if necessary.Technical data: Connection to the IBC: S60x6 (DN50) IT - coarse, hose nozzle " (19 mm), measured diameter: 55-62mm
