Agricultural trailer construction

For connecting the towing vehicle to the trailer. Made of polyamide 12 PL, operating pressure 19 bar. 20 turns, working length up to 400 cm, connection M18x1.5 internal thread.

With integrated fuse. It can't open on its own. For tipper bodies and car trailers, galvanized (without eyelet).

The anti-twist device for the field rail is screwed to the field rail together with the field rail bolt. The top link is then connected to the anti-twist device. This prevents the tiller rail from rotating and lifting when towing a trailer. The top link mount can be selected for Cat.1 and Cat.2 using a stepped bolt (no StVZO approval)

Prevents the compressed air brake systems from freezing in winter, protects against corrosion and thereby improves the lubrication of the valves.Technical information: Frost protection for the compressed air brake system

Trailer load 3500 kg, tongue load 120 kg, D value 18.5

Trailer load 3500 kg, tongue load 120 kg, D value 24.8

Up to 8 t total weight, use: in agricultural vehicle and light tipper construction for rear tippers or three-way tippers. With loose, replaceable Durethan shell.

L = for agricultural vehicles and transport equipment up to 30 km/h, N = for heavy agricultural vehicles over 30 km/h, top quality, at a speed below 30 km/h the permissible axle load for TYPE N increases by 30 - 50%

Suitable for Simol support foot DG590/706/3SF, outer diameter: 35 mm, bore: 13 mm, 15 teeth.

for eccentric lock 6043

20mm

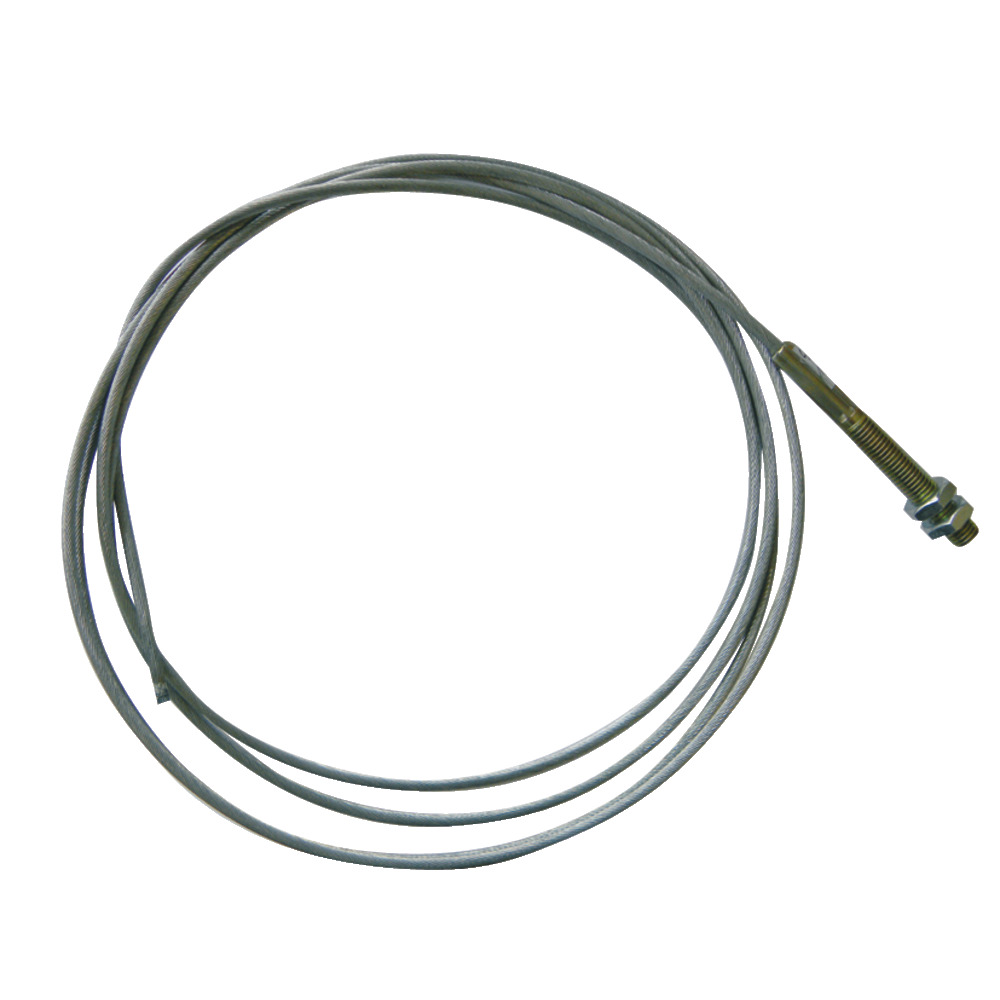

Sheath 2300 mm long, 12 mm, rope 3800 mm long, 5 mm, incl. insert pocketReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome, tab cross section 51x10 mm.

Sheath 3500 mm long, 12 mm, rope 6200 mm long, 5 mm, including insert pocket, tab cross-section 51x10 mmReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome.

Sheath 2300 mm long, 12 mm, rope 5200 mm long, 5 mm, incl. insert pocketReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome, tab cross section 51x10 mm.

Brake hose for compressed air brake systems in motor vehicles and trailer vehicles. The compressed air hose is 100% pressure tested according to DIN 74310 and has a corded textile insert. The core and the top are made of black, smooth EPDM. The brake hose is very abrasion-resistant, resistant to aging and weather. Roll length 10m

95x100mm

150x125mm

For connecting the compressed air brake system of the towing vehicle to the trailer

For connecting the compressed air brake system of the towing vehicle to the trailer

M16x50mm, 10.9 to flange towing eye

Brass, for draining condensation from the air tank, venting the pressure lines and air tank

für die Druckluftbremsanlage

Dust cover for compressed air coupling head Can be used instead of Wabco: 9522006524 &~ 9522006514
