Base plate with Avant mount

The implement triangle is a mechanical component that is used to attach an attachment to a tractor/tug or other agricultural vehicle on the three-point hydraulics with the attachment triangle. The device triangle is permanently connected to the attachment by welding. The U-profile has the dimensions 74x44x6mm and an internal dimension of 62mm.

Clearance adapter from EURO attachment on the front loader to implements with three-point attachment cat. 2. Very robust and lightweight design.The Euro adapter from Schneider makes it possible to use existing implements and implements with category 2 three-point linkage on front loaders with Euro linkage. The short upper top link, which can be used in two slots, and the lower lockable three-point hitches ensure safe handling of the tools and implements with the adapter.Load capacity 1000 kgWeight 50 kg

Simple and quick coupling and uncoupling of implements on Category 2 and 3 front loaders. The upper mounting bolts enable individual tilt angle adjustment by repositioning. The quick-change frame also has a mechanical central locking system. Locating bolt on the front loader side 30 mm, receiving shaft on the device side 40 mm, mounting width of the front loader swing arm inside minimum 855 mm and outside max. 1120 mm, locking bolt 20 mm, total width 1159 mm, weight 59 kg. With a load center of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame in conjunction with hydraulic actuation enables a cost-effective conversion to a fully hydraulically controlled modern loader. This opens up a wide range of new areas of application for your old front loader. With the EURO attachment you increase the impact power and expand the possible uses of your old front loader in many areas.

Simple and quick coupling and uncoupling of implements on Category 2 front loaders. The upper mounting bolts enable individual tilt angle adjustment by repositioning. The quick-change frame also has a mechanical central locking system. Locating bolt on the front loader side 30 mm, receiving shaft on the device side 40 mm, mounting width of the front loader swing arm inside minimum 860 mm and outside max. 1120 mm, locking bolt 20 mm, total width 1159 mm, weight 60 kg. With a load center of 800 mm, the load capacity is approx. 3000 kg.The quick-change frame in conjunction with hydraulic actuation enables a cost-effective conversion to a fully hydraulically controlled modern loader. This opens up a wide range of new areas of application for your old front loader. With the EURO attachment you increase the impact power and expand the possible uses of your old front loader in many areas.

Simple and quick coupling and uncoupling of implements on category 2 and 3 front loaders. The upper mounting bolts enable individual tilt angle adjustment by repositioning. Locating bolt on the front loader side 30 mm, receiving shaft on the device side 40 mm, mounting width of the front loader swing arm inside minimum 860 mm and outside max. 1120 mm, locking bolt 20 mm, total width 1159 mm, weight 60 kg. With a load center of 800 mm, the load capacity is approx. 3000 kg. Hydraulic locking with a double-acting cylinder. Includes 1.5 m hose with connection M18x1.5/12L union nut.

Simple and quick coupling and uncoupling of implements on Category 2 front loaders. The upper mounting bolts enable individual tilt angle adjustment by repositioning. The quick-change frame also has a mechanical central locking system. Locating bolt on the front loader side 30 mm, receiving shaft on the device side 40 mm, mounting width of the front loader swing arm inside minimum 860 mm and outside max. 1120 mm, locking bolt 20 mm, total width 1159 mm, weight 60 kg. With a load center of 800 mm, the load capacity is approx. 3000 kg. The side locking can be easily converted from the right side to the left side by loosening 2 screws.The quick-change frame in conjunction with a hydraulic actuation enables a cost-effective conversion to a fully hydraulic one controlled modern loader. This opens up a wide range of new areas of application for your old front loader. With the EURO attachment you increase the impact power and expand the possible uses of your old front loader in many areas.

No old iron through the retrofit solution from Faie.Older tractors can often still do valuable work on farms if they are adapted to today's requirements. A simple retrofit solution is to upgrade the mechanical front loader with fully hydraulic device controls. A 1-cylinder version and a version with 2 cylinders are available for this retrofit.If equipment is changed frequently, it makes sense to attach a quick-change frame for coupling and uncoupling the implements with EURONORM. Our complete front loader conversion kit for category 2 front loaders with 85cm and category 3 with 102cm is ideal for this purpose. This consists of a fully hydraulic device actuation in a 2-cylinder design and a quick-change frame with central locking.Pressure force 6927 kg at 180 bar, pulling force 5195 kg at 180 bar, hydraulic hose length 1100 mm and 1300 mm, hydraulic connection M18x1.5 union nut 12L, weight 140kg.

Especially for retrofitting mechanical front loaders with hydraulic actuation of the tools. In conjunction with a EURO quick-change frame, a fully hydraulic front loader can be created in a very short time (see front loader conversion kit Faie No. 70599). With the 895 mm long tilting linkage and the lifting path of 507 mm, a tilt angle of up to 180 can be achieved.The scope of delivery includes 1 hydraulic hose with union nut M18x1.5 / 12L in lengths of 1100 mm and 1300 mm included.Pressure force per cylinder 6927 kg at 180 barTensile force per cylinder 5195 kg at 180 barTilt angle up to 180 Stroke path 507 mm

The hydraulically folding bale fork with 2 tines is equipped with a three-point and EURO mounting. The thick-walled zinc support tube with welded-in cone sleeves can be folded upwards hydraulically. This means that no fork protection is required for road transport. The high-quality square spring steel tines with a length of 1100 mm have an M22x1.5 mm thread and can bear loads of up to 1000 kg. The distance between the conical sleeves for the tines in the support tube is 660 mm.The spring steel tines, the hydraulic lines and the BG3 coupling plugs are included in the scope of delivery.

Mit der Lochplatten (LP)-Aufnahme können alle gängigen Frontlader, Rad-, Teleskop oder Hoflader mit unseren Anbaugeräten kombiniert werden.Die Anbaugeräte liefern wir werksseitig mit zwei fest verschweißten Lochplatten. An diese werden einfach die spezifischen Aufnahmen für die Trägerfahrzeuge verschraubt. Bitte geben Sie bei der Bestellung eines entsprechenden Anbaugerätes den Typ des relevanten Teleskop-, Hof- oder Radlader an.Lieferung: 1 Paar und Schraubensatz

Hook 40mm, locking bolt 40mm, hole spacing 280mm, 1 pair

Universally suitable for front loaders, wheel or telescopic loaders thanks to the new screwed mounting system of the mounting consoles (for suitable consoles for your vehicle type, see page 537). Thanks to the high opening width of 1800 mm, it is also very suitable for manure removal from stables and the transport of loose manure, straw, green waste and shrub cuttings.favorable center of gravity close to the carrier vehiclegrabs with even pressure Wear plate under the lower tine carrier Forged tines with a length of 1100 mm, screwed in Thick-walled side plates Complete with hydraulic hoses, without recording consoles!

Our light material bucket can transport perfectly free-flowing bulk materials such as wood chips, sand, grain and commercial fertilizer. The depth of 1000mm allows for a large volume.The conical design without a central bar allows the bulk material to slide off optimally. With the different widths of the light material bucket, they can be optimally adapted to the width of the tractor/tug truck. This makes work easier when pushing snow or loading in tight spaces.The light material shovel has skids to protect the base of the shovel. The completely welded shovel made of high-quality steel with a thickness of 6 mm is protected against wear by a hardened scraper edge 500 HB. Two permanently welded perforated plates make it possible to mount all common front loaders, wheel bearings, telehandlers or yard loaders. This means that if you change the carrier vehicle later, you can change the mount without much effort.Please order the mounts according to your carrier vehicle!Steel sheet with 6 mm thickness , powder-coatedwith perforated plate holder for front, telescopic or wheel loadersconical design for better slipping of the bulk materialhardened scraper edge HB 500

favorable center of gravity thanks to compact design robust thanks to thick-walled side plates and wear plate under the lower tine carrier screwable forged tines, tine length 800 mm

The Mini loader bucket with perforated plate holder for farm loaders is suitable for universal use on any farm. Due to their similarity to light material shovels, the shovels offer a lot of volume despite their compact dimensions. Thanks to the wear plate under the shovel base and the scraper edge made of hardened steel 500 HB, the Mini loader shovels are very robust.Screwable perforated plate holderStable scraper edge made of hardened steel 500 HBWear plate under the blade base Scope of delivery: as shown, without mounting bracket

The Mini multi-grab bucket with perforated plate holder for yard loaders is suitable for loading loose or bulky loads. Loading and transporting manure, loose straw, green waste or shrub cuttings can be carried out without causing major contamination of the transport route. The screwed side panels also prevent loss of loads. The robust design with a blade plate thickness of 6mm, skids under the blade base and a cross tube on the top edge ensures high stability and a long service life.favorable center of gravity close to the carrier vehicleSliding skids on the bottom of the shovelScraping edge made of hardened steel 500 HBThick-walled side plates, 10mm thickScope of delivery: complete with hydraulic hoses and connectors BG3, screwed-in side plate, without recording consoles.

The Mini silage tongs with perforated plate holder for farm loaders are often used as a universal work tool due to their robust design. The tongs enable you to hold and tear out silage and manure. The silage tongs are ideal for transporting manure, straw, green waste and shrub cuttings.favorable center of gravity close to the carrier vehiclewear plate under the lower tine carrierscrewable forged tines at the bottom, length 800mmthick-walled side plates Scope of delivery: complete with hydraulic hoses and BG3 connectors, without mounting consoles.

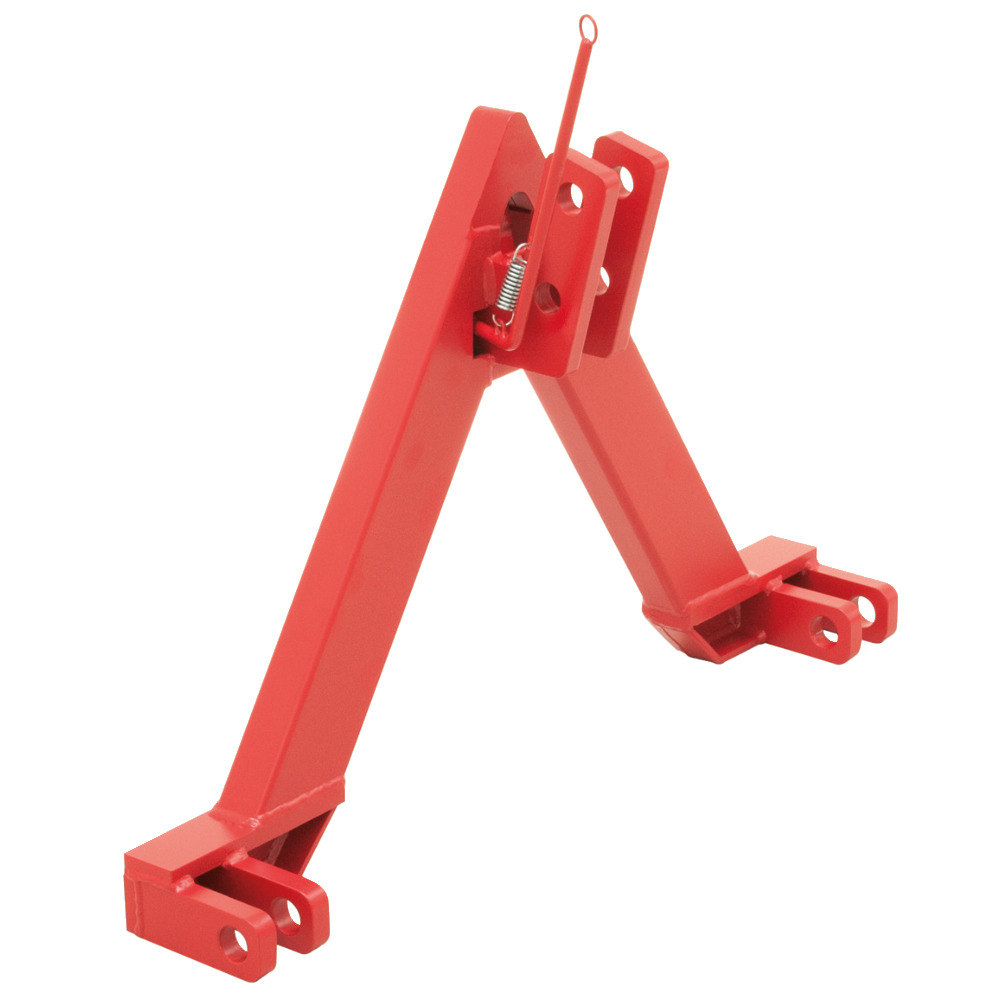

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

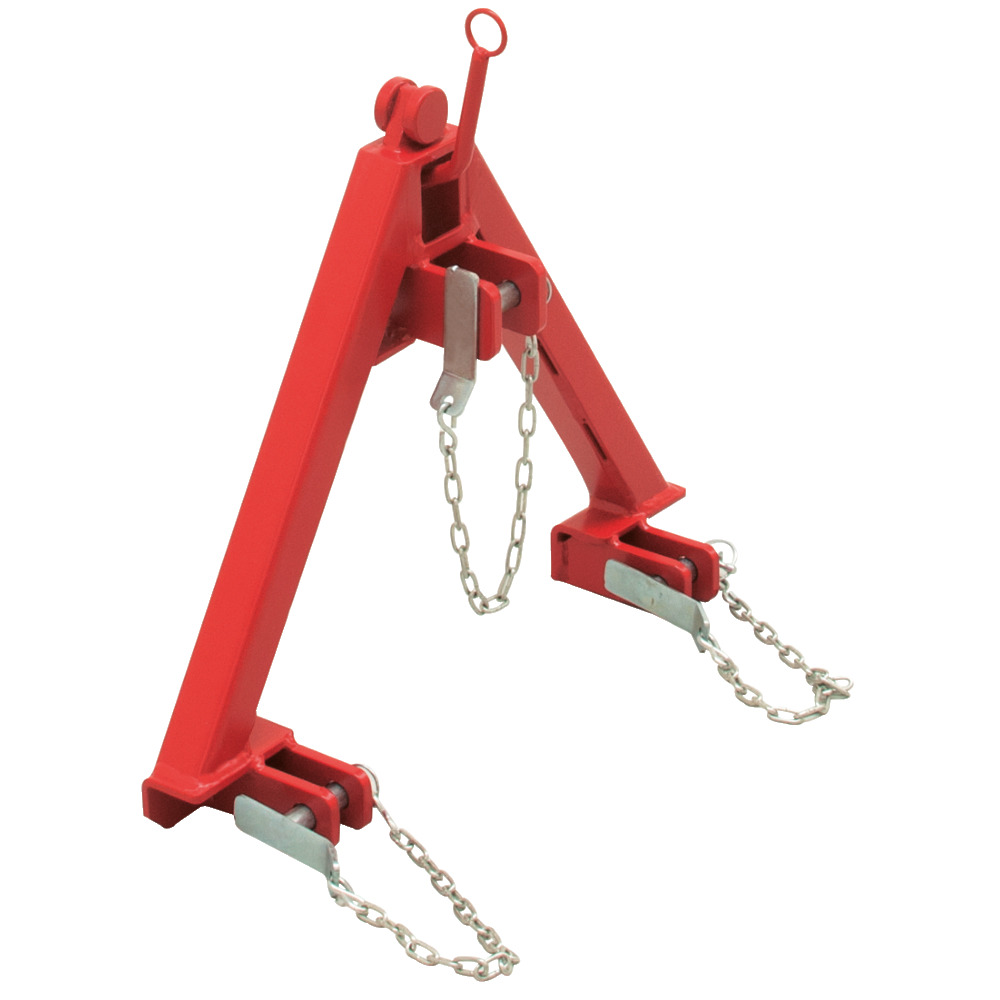

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

The Schneider multi-grab shovel for universal use is suitable for loading shrub cuttings, manure or other loose or bulky loads. The screwable side covers prevent loss of loads. The multi-grab bucket is available for front loaders such as telescopic and wheel loaders with the new perforated plate holder for a wide range of vehicles (order attachment brackets separately). The high opening width means that the edge of the bucket can be moved up to a wall when the gripper is open.Bucket plate 8 mm thick, without side plates, plug BG3, double scraper edge 500 HB, bottom of the bucket with skids, 1,100 mm high

For coupling front and rear implements, material fine-grain steel QSTE380 (St52-3). Made from frame profiles 60x60x5mm.

For welding to the attachment.
