Accessori per abbeveratoi

​Suitable for all drinking bowls and trough drinkers with 24 V heatingtransforms the voltage from 230 V to 24 VShort-circuit and overload protection thanks to easily replaceable miniature fuse in the output circuitIntegrated self-resetting temperature limiter to protect against overheatingProtection class IP44 - When connecting the 230 V plug in an appropriate protective box: IP54Fully encapsulated housing: best possible protection against moisture, mechanical and electronic loadsWhich transformer is right for me?There are several things to consider when selecting a transformer: Drinking trough heating output, heating cable output and safety buffer.Example:2 drinking troughs with a heating capacity a'100 watts = 200 watts, 2 frost protection heating cables 1.5m a' 15 watts = 30 watts, 15 % safety buffer = 35 watts-> required transformer 300 watts

Aluminum foil/adhesive tape for heat reflection on the water pipe. For a 3.5 m long 3/4? pipe, approx. 25 m of aluminum adhesive tape is required ~Tip: For plastic pipes you always need aluminum adhesive tape, otherwise none will be used Heat conduction!!!

Robust, galvanized pipe protection for water pipes and heating cables. (L x W x D): 100 x 11 x 8 cm~ Thickness: 1.5mm

Circulation heater including circulation pump with integrated heating element for year-round operationThe ideal solution for supplying animals with tempered water.The constant water movement and the switchable heating offer double protection against freezing .3-stage switching: 0 = off, 1 = circulation mode, 2 = circulation and heating modeautomatic control of the set water temperatureautomatic safety shutdown in the event of overheating Quick vent valve on the radiator Easy installation by authorized specialists Low space requirement due to compact design Very maintenance-friendly Components can be quickly disconnected and dismantledFor drinking systems with a ring pipe length of max. 250 m (with pipe diameter 3/4?)Housing made of stainless steelCirculation pump with three different speed levels Technical data:- 230 V- power circulation pump 50 W- power heating element 3,000 W- water connection 1? (input + output)- water pressure max. 5 bar - Dimensions 520 x 410 x 285 mm (LxWxH) - Weight 6.7 kg - Protection class IPX4D - Temperature controller +5 - +35C - Factory setting +5 on +15C off ~Scope of delivery: ~< /strong>Circulation pump, flow pipe with integrated heating element, check valve, quick vent, pressure relief valve, pump screw connection G 1 "- Rp. 1" for circulation pump. ~PLEASE NOTE:The branch lines should be frost-free using heating cables be kept!The installation location of the pump should be protected from wind, weather and frost!Make sure that the pipeline is sufficiently insulated (20 mm) and avoid strong bends!It is recommended to have a pressure equalization vessel with a flow through it of the ring main to be installed in a frost-proof area (designed by a specialist installer, not included in delivery).With a 3/4? pipe diameter, up to 250 m of ring main is possible. Flow indicator and thermometer available as optional accessories ~ ~

For connecting a drinking bowl to an IBC tank. including flexible armored hose 70 cm.Scope of delivery:1 x armored hose 70 cm (connection 2 x 3/4" female thread)1 x adapter for IBC container incl. seal (S60x6 to 3/4" male)1 x reduction straight 3/4" male to 1/2" female 1 x double nipple 1/2" male to 1/2 "AG1 x double nipple 3/4AG x 3/4AG

​Set consisting of 2 galvanized U-bolts with washer and nut as well as 2 castings. For pipe Ø 11/4“ - 2”.Suitable for Suevia drinking bowls mod. 25R and 115

For pipes 1 1/2"~ and 2"~. Suitable for the stainless steel drinking bowl (order no. 58127 and 27293) and other basins, order no. 68475 (G20), 69454 (G51), 4685 (Suevia Ideal). Price / pair.

Galvanized, with lock. Suitable for most common pool drinkers. Hole spacing horizontally 8.5 cm, vertically 4 cm. Diagonal hole spacing approx. 9.3 cm.

Hose nozzle 15 mm made of stainless steel. 1/2’ internal thread. With seal.

Hose nozzle 15 mm made of stainless steel. 1/2’ external thread

​Consisting of galvanized U-bolt with washer and nut as well as cast piece. For pipe Ø 2“ - 3”.Suitable for Suevia Mod. 46 drinking bowls.

For pipes 11/4" to 2". Suitable for Lister drinking bowls SB2, SB22, SB112, SB113. Set consisting of 2 screws each with nuts and washers, brackets and counter plates. (Hole spacing center/center 100mm)

Very stable impact protection exactly suitable for Lister drinking bowls as well as other bowls with a projection of up to 345 mm and a maximum width of 280 mm. Fully galvanized, 45mm round tube, with 4 mounting holes.

Made of solid, hot-dip galvanized steel tube, for screwing to the wall. Internal dimensions: (D x W) 30 x 24 cm, height including mounting plate: 20 cm.

Made of solid, hot-dip galvanized steel tube, for screwing to the wall. Internal dimensions: (D x W) 33 x 28.5 cm, height including mounting plate: 20 cm.

1/2" x 1/4". Made of brass.

​Specifically designed for use with float valvesSuitable for water storage tanks, reservoirs, and troughs made of plastic or concreteFor professional installation in the tank wall, connecting the supply line and float valveMade of high-quality, glass-fiber-reinforced nylon, corrosion-resistant, durable, and reusableUV-stabilized for indoor and outdoor use, as well as above- and below-ground applicationsWith G 3/4" male and female threadsMale thread length 200 mm, can be shortened

​Double-walled, insulated thermotube for mounting the Mod. 41A and 43A drinking troughs. Made of polyethylene. With 14 mm fixing holes for floor mounting.Height 400 mm: for sheep, goats, pigsHeight 600 mm: for calvesHeight 800 mm: for cattle, cows, horsesNot for teething young cattle and biting animals (concrete pipe required)

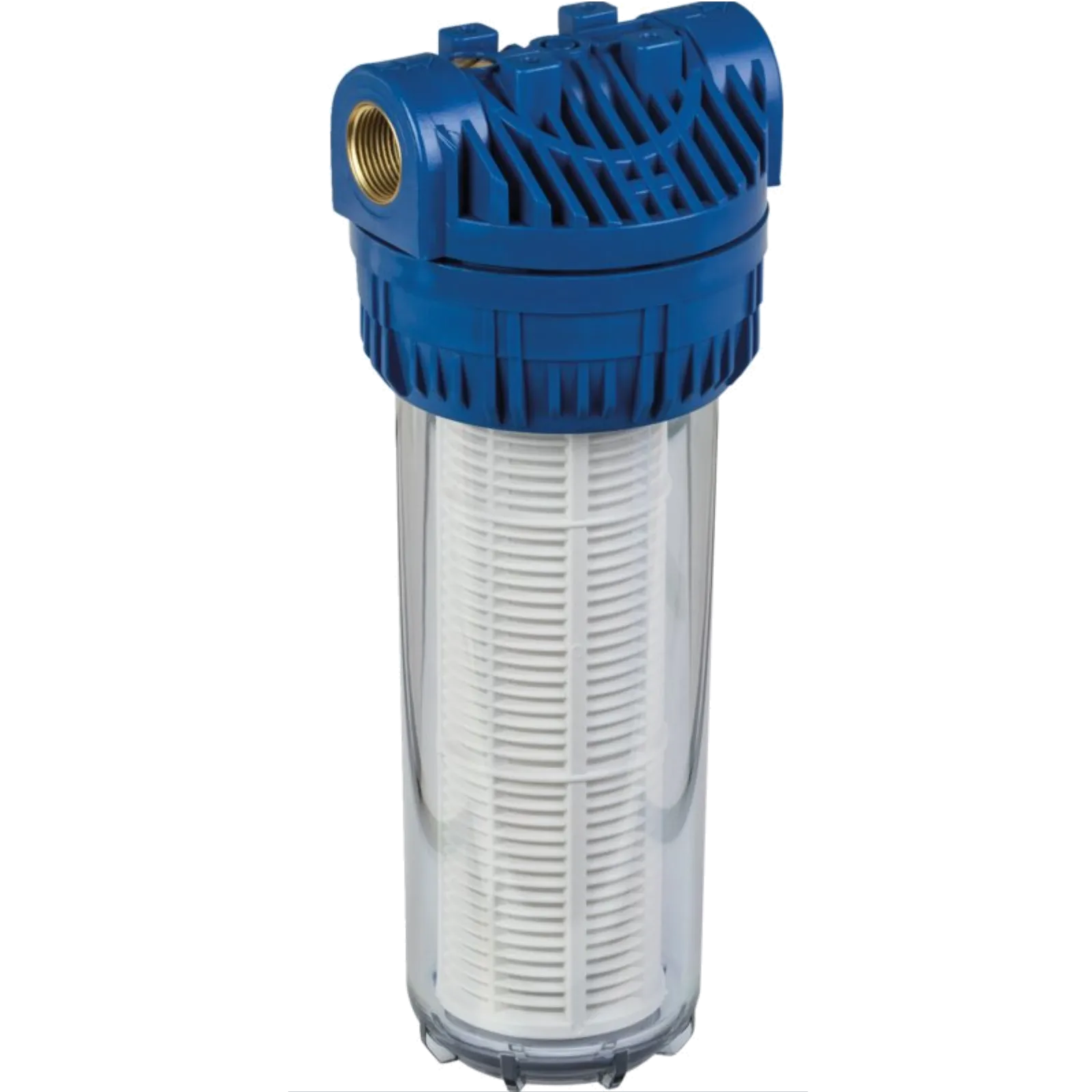

​Cartridge water filter with washable and replaceable filter insert. Plastic housing.Incl. wall bracket and wrench. Filter element 60 micronIdeal for use as a filter in the drinking water pipe to prevent the ingress of dirt from well water and mains water.

​The integrated 230-volt heating unit with 3 kW output, in combination with the highly efficient circulation pump (max. 45 W), ensures reliable frost protection while consuming little power. The pump is approved for use with drinking water and offers consistently high delivery performance.The ZPS ECO II comes with a wide range of accessories, including a check valve, vent valve, pressure relief valve, and T-piece. With a recommended pipe length of up to 250 m with a 1″ pipe diameter, it is ideal for many barn sizes.Technical data:Ready for wall mountingIntegrated 230 V heating unit (3 kW) with indicator light, thermostat, and temperature limiterHigh-efficiency pump (max. 45 W), approved for drinking waterPipe length: up to 250 m with a 1" pipe diameterConnection cable: 1.50 m (without power plug)Compact design – ideal for medium-sized stablesAccessories: check valve, vent valve, pressure relief valve, T-piece

​The ZPS PRO IDEAL circulation pump is delivered fully assembled and ready for connection, mounted on a stainless steel base plate.Equipped with a 3 kW heating element, it features a green indicator light, a thermostat, and a safety temperature limiter. The control box of the circulation pump for barns has a summer and winter operating mode. In summer, the ZPS PRO IDEAL circulation pump saves considerable energy costs because it only switches on every half hour instead of running continuously. This also prevents the pump rotor from seizing. Naturally, the heating element is switched off in summer. In winter, the circulation pump operates with thermostatically controlled heating. This ensures frost-free drinking troughs even in the depths of winter. The pipe length is approximately 250 meters with a 1-inch diameter, and the connection cable is 1.50 meters long (excluding the power plug). The Lister ZPS PRO IDEAL circulation pump comes with a check valve, a vent valve, a pressure relief valve, and a T-fitting.Using the ZPS PRO IDEAL Circulation PumpHave the ZPS PRO IDEAL circulation pump installed by an authorized professional in accordance with all applicable regulations. The circulation pump is designed to circulate the water supply for drinking troughs. The integrated heating element prevents the water from cooling down too much and freezing, thus ensuring frost-free drinking troughs. The ZPS PRO IDEAL is specifically designed for the demands of stables. It ensures efficient water circulation, which is essential for maintaining water quality in drinking troughs. Its use ensures that the water remains fresh, clean, and free of contaminants, which is of utmost importance for the health of the horses. Stagnant water quickly becomes contaminated with germs, but the water movement keeps it fresh and prevents germs from taking hold. Do you let your animals graze in the pasture during the winter? Then we have the perfect frost-free watering system for you: the DRINKING POST 2100 for horses – a frost-proof waterer that doesn't require electricity, the DRINKING POST 1800 for cattle – a frost-proof pasture waterer that doesn't require electricity, or the DRINKING POST 1200 for sheep!Information about the ZPS PRO IDEAL circulation pumpThanks to its constant water circulation, the ZPS PRO IDEAL circulation pump also ensures that even individual, rarely used drinking troughs don't become contaminated. Bacteria multiply rapidly in stagnant water. Furthermore, animals generally prefer to drink water that is at a comfortable temperature rather than water that is too cold. This way, your animals are optimally supplied with fresh drinking water via the frost-proof waterers, even in winter. This keeps them healthy and happy. However, switch the circulation pump to winter mode well before the onset of frost, when temperatures drop below 5 degrees Celsius. This way, the screw-in heating element will automatically start heating when the preset temperature is reached. This prevents unnecessary energy waste on frost-proof drinking troughs. After winter, switch the ZPS PRO IDEAL back to summer mode, and the heating element will cease operation. You can find practical drinking troughs in the Lister247 shop, such as the plastic horse trough with a pressure tongue or the plastic cattle trough with a pressure tongue.The advantages of the ZPS PRO IDEAL circulation pump at a glance:The ready-to-connect circulation pump is delivered fully assembled on a stainless steel base plate.The pump: High-efficiency pump (max. 45 watts), with lower power consumption for the same pumping performance.The heating element: 3 kW (with green indicator light, thermostat, and safety temperature limiter).The control box has a switch for summer and winter operation.In summer mode, the circulation pump switches on automatically every half hour, thus saving considerable energy costs compared to conventional circulation systems (which run continuously) and preventing the pump rotor from seizing. Naturally, the thermostat-controlled heating unit does not operate in summer.In winter mode, the pump runs continuously with the thermostatically controlled heating.Connection cable: 1.50 m (without plug)Pipe length: approx. 250 meters with a 1" pipe diameterAccessories for the circulation system: check valve, air vent, pressure relief valve, and T-fittingTechnical data:Voltage: 230 voltsPump: max. 45 watt high-efficiency pumpHeating element: 3 kW completePipe length: approx. 250 Meters with 1" pipe diameterConnection cable: 1.50 m (without mains plug)Control box: with switch for summer and winter operationSummer operation: daily automatic switch-on (½ hour) of the circulation pumpWinter operation: continuous pump operation and thermostatically controlled heating operation (thermostat-controlled heating unit is not in operation during summer operation)Accessories: check valve, air vent, pressure relief valve and T-piece
