Mower blades

#FA28331

Schröckenfux Bird and Noot, mower blade to jet mower

Upper knife, 27 blades, 6 of which are mushroom blades

€385.00*

#FA27911

Schröckenfux Bird Noot, mower blade to jet mower

Upper knife, 22 blades, including 5 mushroom blades

€325.00*

#FA27912

Schröckenfux Bird Noot, mower blade to jet mower

Bottom knife, 22 blades, including 4 mushroom blades

€325.00*

#FA41369

Schröckenfux Bottom knife 150 cm 20 blades, instead of Busatis DME 1504 B, 5470.002.41

Bottom knife for Busatis BM 321 KW double cutter bar with a total number of 20 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The positions of the blades with knob, starting from the cutterhead, are on the 5th, 10th and 15th blade. The last blade is an end blade that is ground on both sides. A cutter head plate is riveted to the lower cutter head. The pitch of the blades from blade centre to blade centre is 76 mm. The knife is supplied complete with the lower cutter head, on the left-hand side when viewed in the direction of travel.

€337.00*

#FA28138

Schröckenfux Bottom knife 160cm 22 blades suitable for Moty Gigant

Bottom blade for Busatis double knife bar with a total number of 22 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted-on lower blade head, on the right-hand side when viewed in the direction of travel. Suitable for Moty Gigant motorised mowers with Busatis double blade mower. Overall length with cutterhead: 166 cm Length of cutter back: 166 cm Cutter head on the right in the direction of travel, offset 25 mm inwards Cutterhead length: 207 mm Total number of blades: 22, of which 4 blades with knob Position of the blades with knob starting from the cutter head: 4th, 9th, 14th and 19th blade Blade pitch (blade centre to blade centre): 76mm

€339.00*

#FA130162

ESM Bottom knife 167 cm 24 blades suitable for Nussmüller-Rasant

Bottom knive for double knife bar Busatis with a total number of 23 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76,2 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Nussmüller-Rasant Junior 90 motorised mowers with Busatis double blade mower.Cutting width: 167 cm Overall length with cutterhead: 177 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 40 mm projection over the back of the blade Cutterhead length: 335 mm Total number of blades: 23, of which 3 blades with knobPosition of the blades with knob starting from the cutterhead: 6th, 12th and 18st blade Blade pitch (blade centre to blade centre): 76,2 mm

€298.00*

#FA49969

Schröckenfux Bottom knife 175 cm 24 blades suitable for Bucher - Reform Kombi M12

Bottom knife for Busatis double knife bar with a total number of 24 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Suitable for Bucher and Reform Kombi M12 motorised mowers with Busatis double blade mower. Overall length with cutterhead: 184 cm Length of cutter back: 181 cm Cutter head on the left in the direction of travel, 28 mm projection over the cutter back Cutterhead length: 360 mm Total number of blades: 24, of which 3 blades with knobPosition of the blades with knob starting from the cutterhead: 5th, 12th and 19th blade Blade pitch (blade centre to blade centre): 76 mm

€305.00*

#FA31814

Schröckenfux Bottom knife 190 cm 24 blades suitable for Reform Metrac with bidux mower, portal drive

Bottom knife for bidux double knife bar with a total number of 24 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 84 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Total length with knife head: 2020 mm Length of knife back: 1990 mm Cutter head 5840.055.01, 345.0770 Protrusion of knife head over knife back: 28 mm Length of knife head: 400 mm Tang knife head: 18 mmTotal number of blades: 24, of which 4 blades with knobPosition of the blades with knob starting from the knife head: 6th, 11th, 16th and 21st. Blade and blade pitch (blade center to blade center): 84mm

€276.00*

#FA41384

Schröckenfux Bottom knife 26 blades for Busatis double knife mower

Bottom knife 26 blades DME1606B

€275.00*

#FA2219

Schröckenfux Bottom knife bidux system 210cm with 26 blades, including 5 blades with knob

Bottom knife to double knife bar bidux system with a total number of blades of 26 pieces. 4 of these are blades with mushrooms to hold the knife guide arms. The pitch of the blades in the distance from blade center to blade center is 84mm. The knife is delivered complete with the riveted bottom cutter head, seen on the left side in the direction of travel.Suitable for Aebi Mähtrac TT33 and Rapid MT200 with double-blade front mower and for Busatis rear and side mower BM 1205.

€375.00*

#FA2231

Schröckenfux Bottom knife bidux system 240cm with 30 blades, right

Bottom knife to double knife bar bidux system with a total number of blades of 30 pieces. 5 of these are blades with mushrooms to hold the knife guide arms. The pitch of the blades is 84mm distance from blade center to blade center. The knife is delivered complete with the riveted bottom cutter head. Suitable for Aebi Mhtrac TT33 with double knife front mower and for Busatis rear and side mower BM 1205.

€395.00*

NEU

#FA133461

ESM Bottom knife, 196 cm, with 29 blades, compatible with the Köppl bidux double cutter bar KPE, without cutter head

Bottom knife for the bidux ESM double-blade bar, compatible with Aebi, IBEX and Köppl, with a total of 29 blades. Four of these are blades with knob for attaching the knife guide arms. The spacing between the centres of the blades is 70 mm. The knive is supplied without the blade head, which is screwed onto the left-hand side when viewed in the direction of travel. The upper-knive-head is secured with 3 M8 fixing screws. The blades with knob are positioned at the 5th, 12th, 18th and 25th blades.

€398.00*

#FA33066

Schröckenfux Busatis bottom knife 170cm 23 blades, 4 mushroom blades, 1 end blade

Lower knife for Busatis double knife bar with a total number of blades of 23 pieces. Of these, 4 are blades with a mushroom for holding the knife guide arms and 1 is an end blade. The pitch of the blades is 76mm from blade center to blade center. The knife is delivered complete with the riveted bottom cutter head. Suitable for Busatis rear and side mower BM 1102.DME 1822 B, 18 blades GB 2730, 4 mushroom blades, 1 end blade GB2632, cutter head GB 2742, 5470.055.51 = 265.5960

€285.00*

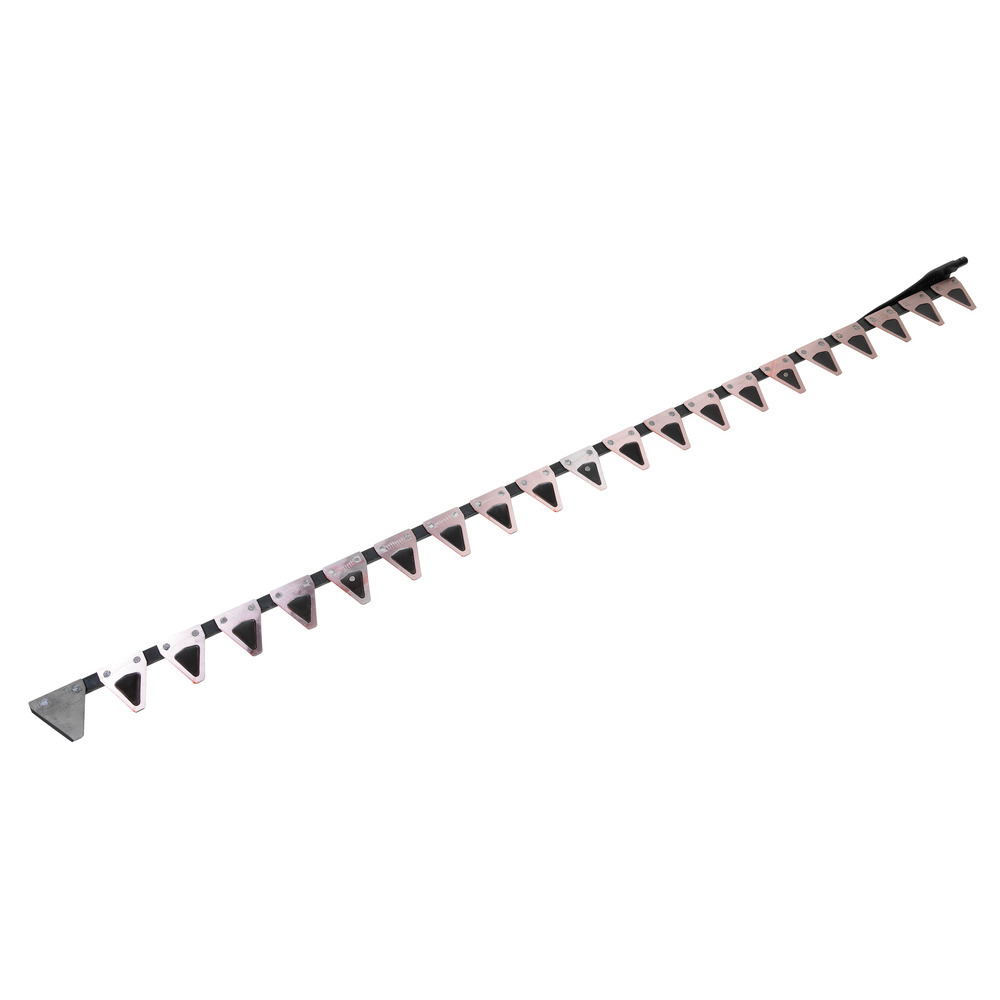

#FA41380

Schröckenfux Busatis rear mower BM 1102 KW bottom knife 5�, 21 blades

DME 1506 B, 17 blades GB 2730, 3 mushroom blades, 1 end blade GB 2632, 1 bedknife head GB 2742, 5470.055.41 = 265.0070

€272.00*

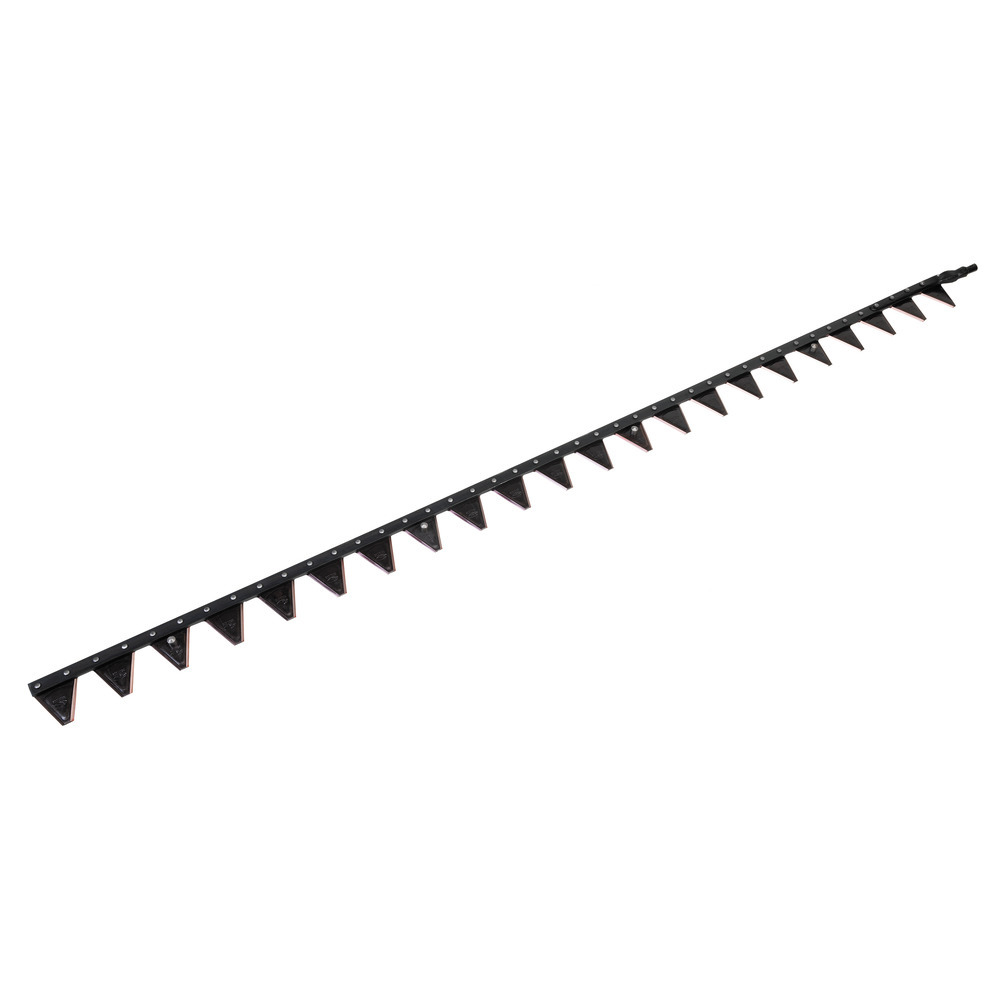

#FA33065

Schröckenfux Busatis rear mower BM 1102 KW upper knife 170 cm, 22 blades

DME 1822 A, 18 blades GB 2730.4 mushroom blades, knife head GB 2741, 5460.055.51 = 262.5960

€272.00*

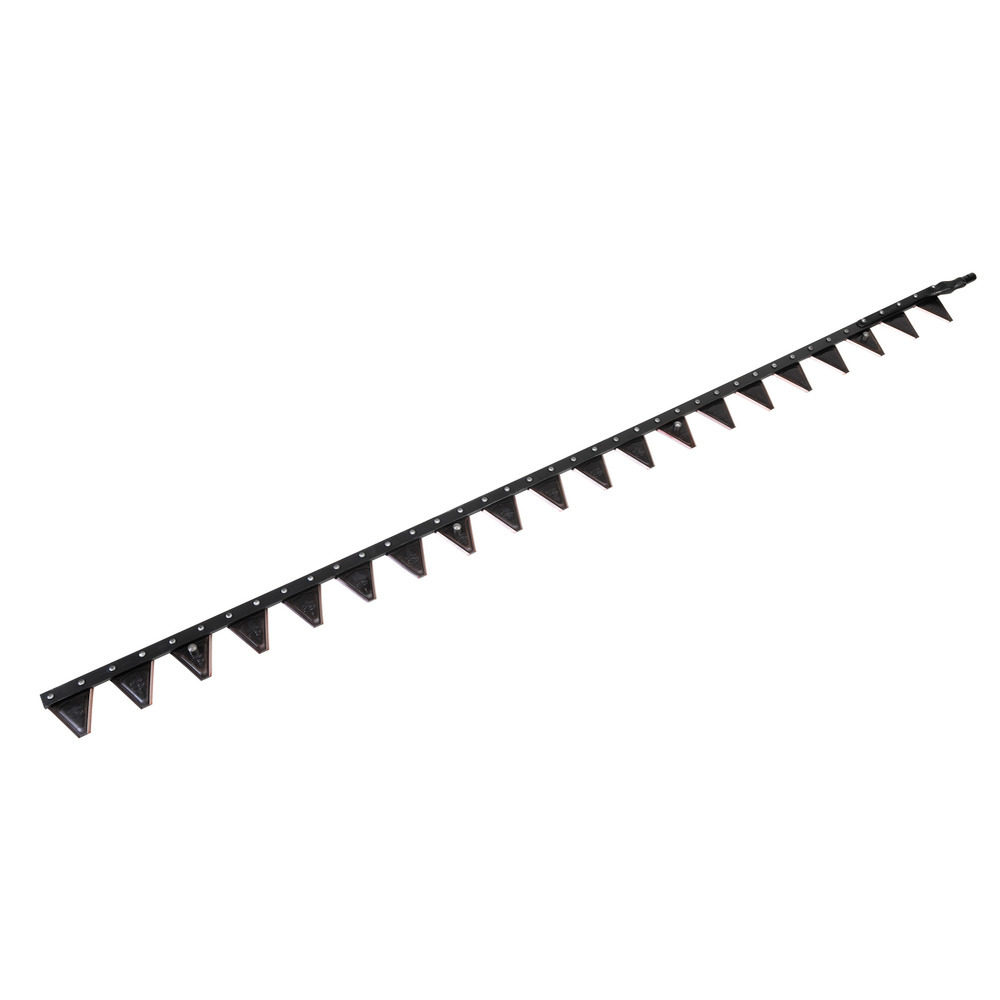

#FA41379

Schröckenfux Busatis rear mower BM 1102 KW upper knife 5�, 20 blades

DME 1506 A, 16 blades GB 2730, 4 mushroom blades, 1 upper cutter head GB 2741, 5460.055.43 = 262.5940

€247.00*

ESM mowing blade for the SC universal bar with folding mechanism on the blade holders. 2 threaded holes M8 with hole spacing 101.6 mm and bore � 8.1 mm, without reinforcement strip

#FA97680

ESM ESM mowing blade for the SC universal bar with folding mechanism on the blade holders. 2 threaded holes M8 with hole spacing 101.6 mm and bore � 8.1 mm, without reinforcement strip

Mower blade, 23 blades

€219.00*

#FA2053

Schröckenfux Grass knife A83

Normal cut 25 blades DIN 75, 7 cleaning plates AM8731/2, 1 cleaning plate AM23328/2

€169.00*

#FA56598

Schröckenfux Mähmesser zu Moty Gigant III mit Bidux Mähwerk

Untermesser, 30 Klingen, davon 5 Pilzklingen 100343

€389.00*

#FA56596

Schröckenfux Mähmesser zu Moty Gigant III mit Bidux Mähwerk

Obermesser, 30 Klingen, davon 6 Pilzklingen 100346

€379.00*

#FA52798

ESM Mower blade 102 cm, 20 blades, for universal bar C, 4 threaded holes M8, instead of ESM 248.0020

Mower blade with 20 blades suitable for ESM Universal-C cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 bolts at a distance of 50.9 mm and 152.7 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 2nd/3rd, 7th/8th, 13th/14th and 18th/19th blades. The rivets are ground in the area of the cutter head holder.

€205.00*

#FA100245

ESM Mower blade 102 cm, 20 blades, for universal bar SC, 4 threaded holes M8, instead of ESM 249.1210

Mower blade with 20 blades suitable for ESM Universal-SC cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 screws at a distance of 51 mm and 153 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 1st/2nd, 6th/7th, 14th/15th and 19th/20th blades. A reinforcement strip with a thickness of 5 mm is fitted in the area of the cutter head holder.

€212.00*

#FA119924

ESM Mower blade 102cm, 20 blades with reinforcement bar, for municipal cutter bar, instead of ESM 251.0760

Mower blade with 20 blades suitable for ESM municipal cutter bars. The knife head is attached to the knife with 4 M8 screws, each 50.8mm apart. There are 4 pin supports on the mower blade to accommodate the rocker arms. The tenon carriers are positioned over 2nd/3rd, 6th/7th, 14th/15th. and 18th/19th Blade.

€279.00*

#FA12763

ESM Mower blade 107cm 21 blades for universal bar C

Mower blade ESM 107cm 21 blades for universal bar C. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips over 2. &~ 3rd Blade, 7th &~ 8th Blade, 14th &~ 15th Blade and 19th &~ 20. Blade. Original ESM mower blade suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

€207.00*
