Appropriate to reform

#FA49969

Schröckenfux Bottom knife 175 cm 24 blades suitable for Bucher - Reform Kombi M12

Bottom knife for Busatis double knife bar with a total number of 24 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Suitable for Bucher and Reform Kombi M12 motorised mowers with Busatis double blade mower. Overall length with cutterhead: 184 cm Length of cutter back: 181 cm Cutter head on the left in the direction of travel, 28 mm projection over the cutter back Cutterhead length: 360 mm Total number of blades: 24, of which 3 blades with knobPosition of the blades with knob starting from the cutterhead: 5th, 12th and 19th blade Blade pitch (blade centre to blade centre): 76 mm

€305.00*

#FA31814

Schröckenfux Bottom knife 190 cm 24 blades suitable for Reform Metrac with bidux mower, portal drive

Bottom knife for bidux double knife bar with a total number of 24 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 84 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Total length with knife head: 2020 mm Length of knife back: 1990 mm Cutter head 5840.055.01, 345.0770 Protrusion of knife head over knife back: 28 mm Length of knife head: 400 mm Tang knife head: 18 mmTotal number of blades: 24, of which 4 blades with knobPosition of the blades with knob starting from the knife head: 6th, 11th, 16th and 21st. Blade and blade pitch (blade center to blade center): 84mm

€276.00*

#FA41384

Schröckenfux Bottom knife 26 blades for Busatis double knife mower

Bottom knife 26 blades DME1606B

€275.00*

#FA102840

Mower blade 118cm, 23 blades 59015, with 4 guide bars and smooth holder, 2 threaded holes M8, suitable for Aebi, BCS, Reform

23 blades 59015, 4 guide strips, B590.59032.0

€72.90*

#FA107167

Mower blade 118cm, 23 blades, with serrated holder, instead of BCS & Reform B590.48909.0

23 serrated blades, 4 guide rails, B590.48909.0

€75.00*

#FA22545

Mower blade 135cm, 27 blades 59015, with 4 guide bars and smooth holder, 2 threaded holes M8, suitable for Aebi, BCS, Reform

27 blades 59015, 6 guide strips, B590.59033.0

€79.00*

#FA21657

Mower blade 135cm, 27 blades, with serrated holder, instead of BCS & Reform B590.48906.0

27 serrated blades, 6 guide rails, B590.48906.0

€79.90*

#FA125005

Mower blade 158cm, 31 blades 59015, with 6 guide rails and smooth mounting, 2 threaded holes M8, suitable for Aebi, BCS, Reform

31 blades 59015, 6 guide bars, B590.59032

€105.00*

#FA133637

Mower blade 158cm, 31 blades, with serrated holder, instead of BCS & Reform B590.55050.0 and B590.58793

Mower blade suitable for BCS mowers and for AEBI and Reform mowers fitted with BCS cutter bars. The mower blade has 31 blades (563.50696) and 6 guide strips (563.59061). The guide strips are riveted onto the blade at the 2nd/3rd, 7th/8th, 12th/13th, 19th/20th, 24th/25th and 29th/30th blades. The cutter head is secured to the toothed drive plate with 2 M8 screws. The hole spacing is 76 mm.

€109.00*

#FA126206

Schröckenfux Mower blade 160cm, 21 blades, 8 cleaning plates, 2 threaded holes M8, LA=122.5mm instead of Rapid 253012

The mower blade for the Rapid finger bar has 21 blades. There are 8 cleaning plates 14902 riveted onto the blades. The cleaning plates are fitted over the 2nd, 5th, 6th, 8th, 14th, 16th, 17th and 20th blades. There are two M8 threaded holes in the back of the blade with a hole spacing of 122.5 mm. The cutter head is attached to the mower blade in these threaded holes.

€115.00*

#FA16002

Schröckenfux Mower blade 230cm for Reform Metrac 2000, 2002, 2004, 3000

Upper knife 30 blades, including 6 mushroom blades

€425.00*

#FA15998

Schröckenfux Mower blade 230cm for Reform Metrac 2000, 2002, 2004, 3000

Bottom knife 31 blades, including 5 mushroom blades and 1 end blade

€398.00*

#FA113381

Mower blade 76cm, 15 blades, with serrated holder, instead of BCS & Reform B590.48928.0

15 serrated blades, 4 guide rails, B590.48928.0

€59.00*

#FA126048

ESM Mower blade 91cm, 18 blades, for universal bar SC, 2 threaded holes M8, hole spacing 101.6 mm, instead of ESM 248.1670

Mower blade with 18 blades suitable for ESM universal bar SC with hinged blade holder. The cutter head is attached to the blade with 2 M8 bolts at a distance of 101.6 mm. The cutter head attachment is from the centre. There are 4 guide rails on the mower blade. Guide rails are attached to the cutter blade. The guide rails are positioned over the 1st/2nd, 5th/6th, 13th/14th and 17th/18th blades.

€198.00*

#FA76031

Mower blade 97cm, 19 blades 59015, with 4 guide bars and smooth holder, 2 threaded holes M8, suitable for Aebi, BCS, Reform

19 blades 59015, 4 guide strips, B590.59031.0

€59.00*

#FA79869

Mower blade 97cm, 19 blades, with serrated holder, instead of BCS & Reform B590.48926.0

19 serrated blades, 4 guide rails, B590.48926.0

€65.00*

#FA12764

ESM Mower blade ESM 137cm 27 blades with reinforcement bar for universal beam C

Mower blade ESM 137cm 27 blades for universal bar C. With reinforcement bar length 253mm and thickness 2.5mm. 2 threaded holes M8 with hole spacing 101.6mm and 6 guide strips over 2. &~ 3rd blade, 6th &~ 7th Blade, 10th &~ 11th Blade, 17th &~ 18th Blade, 21st &~ 22nd Blade and 25th &~ 26. Blade. Suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

€299.00*

#FA30571

Schröckenfux Mower blade for reform free-cutting bar, LA=152 mm

21 blades DIN 80, 2 RPL1 guide bar long 110.422.317

€109.00*

#FA49900

Schröckenfux Mower blade for Reform Metrac with Bidux mower, portal drive

Upper knifeTotal length with knife head: 2390mm Length of knife back: 2300mm Cutter head 5840.040.01, 345.0550 Protrusion of knife head over knife back: 90mm Length of knife head: 400mm Tang knife head: 18mm < br>Total number of blades: 33, of which 6 are mushroom blades Position of the mushroom blades starting from the knife head: 3rd/9th/15th/21st/27th/32nd. Blade and blade pitch (blade center to blade center): 70mm

€345.00*

#FA49901

Schröckenfux Mower blade for Reform Metrac with Bidux mower, portal drive

Lower knife Total length with cutter head: 2440mm Length of cutter back: 2410mm Cutter head 5840.055.01, 345.0770 Protrusion of cutter head over cutter back: 28mm Length of cutter head: 400mm Tang cutter head: 18mm < br>Total number of blades: 29, of which 5 are mushroom blades Position of the mushroom blades starting from the knife head: 6th/11th/16th/21st/26th. Blade and blade pitch (blade center to blade center): 84mm

€315.00*

#FA7889

Schröckenfux Mower blade for Reform Type 58, 158, 258, 110, 111, 112 with oval holes, hole spacing 102 mm

19 blades DIN 80, 6 cleaning plates REFORM 80

€98.00*

#FA2326

Schröckenfux Mower blade for Reform Type 58, 158, 258, 110, 111, 112 with oval holes, hole spacing 102 mm

17 blades DIN 80, 8 cleaning plates REFORM 80

€85.00*

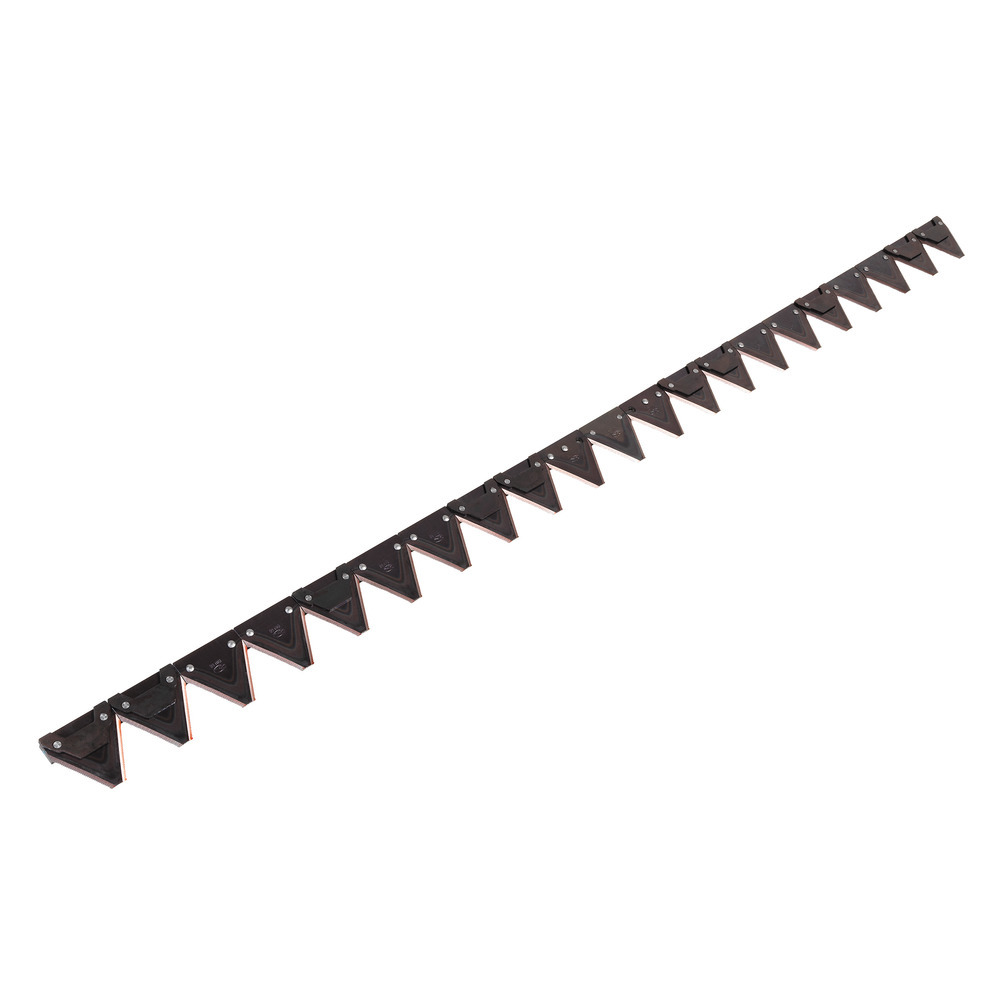

#FA7891

Schröckenfux Mower blade for Reform Type 58, 158, 258, 110, 111, 112 with oval holes, hole spacing 102 mm

21 blades DIN 80, 10 cleaning plates. REFORM 80

€109.00*

#FA7892

Schröckenfux Mower blade for Reform Type M2, M3, 111S, 112, 115, 131, from model year 78 116, 316, with M8 threaded holes, hole spacing 152 mm

with threaded holes, hole spacing 152 mm19 blades DIN 80, 6 cleaning plates, 1 short guide bar 110422315.0

€107.00*

Seite 1 von 2
