Mower spare parts

Contents: 140 pieces 6x16 mm, 20 pieces 6x27 mm, 20 pieces 6x31 mm

The knife guide arm for the lower knife is supplied complete with the holder and screws. The knife holder fits all double knife bars with the Busatis bidux system.

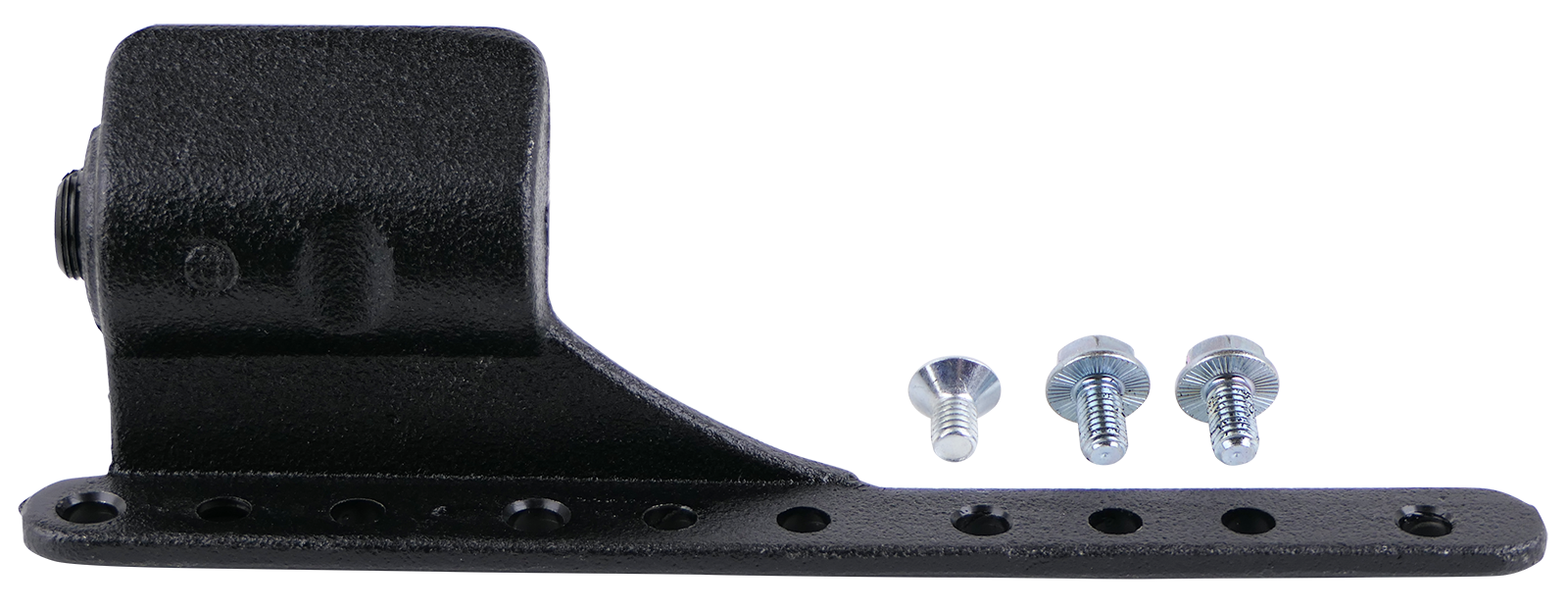

Lower cutter head suitable for Vogel & Not Jet mowers with bidux double-blade mower deck. The cutter head is screwed onto the mower blade. Supplied complete with the fitting screws.

Knife holder for lower knife guide arm for riveting. Suitable for Busatis double knife mower BM 321KW, BM 1102, BM1124, BM1260.

Connecting rod wood N73s suitable for Mrtl cutter bars

Untermesser, 30 Klingen, davon 5 Pilzklingen 100343

Obermesser, 30 Klingen, davon 6 Pilzklingen 100346

Metal wheel 2.0 Basic suitable for many motor mowers up to a weight of 150kg. The metal wheel has a diameter of 420mm (corresponds to rubber tires 4.00 x 8), a width of 190mm and the centering hole has a diameter of 60.5mm. The fastening hub is made with 2 hole circles 4x100mm. A hole circle with the hole diameter for M12 collar screws and a hole circle for fastening with cone screws with a hole diameter of 15mm. The cone rings are welded into the hub.The delivery consists of a pair of metal wheels!The powder-coated metal wheel has a hardened tread on the outer contour and is therefore very resistant to abrasion. Thanks to the nested and welded construction, the wheel is very stable. How it works!Due to the offset outer contour or the overlap of the wheel lugs, a closed radius is created. This creates a closed radius You get perfect concentricity on hard surfaces such as a road without vibrations or shock loads on the driver and drive axles.The design of the wheels ensures a gentle crop flow of the forage from the knife bar right behind the wheels. Due to the geometry of the wheels, there is no wrapping the axles with food. The metal wheels 2.0 are designed in such a way that they clean themselves while driving. When mowing on soft ground, the wheel cleats engage in the ground. By immersing the driving lugs into the ground, the inner radius and the connecting struts are now the new running surface of the wheels. The controlled immersion of the driving lugs creates a uniform linear drive in which there is hardly any pulling to one side - regardless of whether it is on a slope or with uneven meadow vegetation.Another positive effect is the ground footprint that the driving lugs leave by immersing it in the ground. This footprint promotes water absorption on steep slopes. The metal wheel 2.0 Basic is suitable for motor mowers weighing up to 150kg. For heavier mowers, a wider version is recommended. In this case, please contact us or fill out the inquiry form available for download with the required technical data and send it to us. You will then receive a tailor-made offer for the right pair of metal wheels for your motor mower.Scope of delivery: 2 pieces of metal wheels

Mounting lever for changing the blades on the mowing discs and mowing drums.

Mowing blade with 20 blades, suitable for the ESM Universal Beam SC with hinged blade holders. The blade head can be secured to the blade using two M8 screws, spaced either 50.9 mm or 152.7 mm apart. In the centre of the M8 threaded holes is a hole with a diameter of 8.1 mm to accommodate the centring pin from the blade head. In the area of the threaded holes, the rivet heads are ground flat. Four guide strips are fitted to the mower blade. The guide strips are positioned above the 1st/2nd, 6th/7th, 14th/15th and 19th/20th blades.

Mower blade with 20 blades suitable for ESM Universal-C cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 bolts at a distance of 50.9 mm and 152.7 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 2nd/3rd, 7th/8th, 13th/14th and 18th/19th blades. The rivets are ground in the area of the cutter head holder.

Mower blade with 20 blades suitable for ESM Universal-SC cutter bar. Depending on the version, the cutter head is attached to the blade with 2 M8 or 4 M8 screws at a distance of 51 mm and 153 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 1st/2nd, 6th/7th, 14th/15th and 19th/20th blades. A reinforcement strip with a thickness of 5 mm is fitted in the area of the cutter head holder.

Mower blade with 20 blades suitable for ESM municipal cutter bars. The knife head is attached to the knife with 4 M8 screws, each 50.8mm apart. There are 4 pin supports on the mower blade to accommodate the rocker arms. The tenon carriers are positioned over 2nd/3rd, 6th/7th, 14th/15th. and 18th/19th Blade.

Mower blade ESM 107cm 21 blades for universal bar C. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips over 2. &~ 3rd Blade, 7th &~ 8th Blade, 14th &~ 15th Blade and 19th &~ 20. Blade. Original ESM mower blade suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

Mower blade with 21 blades suitable for ESM universal bar SC with hinged blade holder. The cutter head is attached to the blade with 2 M8 screws at a distance of 101.6 mm. In the centre of the two M8 threaded holes is a hole with Ø 8.1mm to accommodate the centring bolt on the cutter head. There are 4 guide rails on the mower blade. Guide rails are attached to the mower blade. The guide rails are positioned over the 2nd/3rd, 7th/8th, 14th/15th and 19th/20th blades.

Mower blade with 23 blades suitable for ESM municipal cutter bars. The cutter head is attached to the blade with 2 M8x18 bolts at a distance of 101.6 mm. There are 4 pivot supports on the mower blade to hold the rocker arms. The pivot supports are positioned between the 2nd and 3rd, 8th and 9th, 15th and 16th, and 21st and 22nd blades.

Mower blade with 23 blades suitable for ESM Universal-S cutter bar. The cutter head is attached to the blade with 2 M8 bolts at a distance of 101.6 mm. There are 4 guide rails on the cutter bar. Guide rails are fitted above the 2nd/3rd, 8th/9th, 15th/16th and 21st/22nd blades. A 6 mm thick reinforcement strip is fitted in the area of the cutter head holder. There is an 8 mm diameter hole in the centre of the reinforcement strip to accommodate a centring device.

Mower blade ESM 117cm 23 blades for universal bar C. With reinforcement bar length 253mm and thickness 2.5mm. 2 threaded holes M8 with hole spacing 101.6mm and 4 guide strips over 2. &~ 3rd blade, 8th &~ 9th Blade, 15th &~ 16th Blade and 21st &~ 22. Blade. Suitable for Aebi, Agria, Bucher, Gutbrod, Holder, Nussmller Rasant, Rapid, Reform, Vogel &~ Noot and many others.

23 blades 59015, 4 guide strips, B590.59032.0

23 serrated blades, 4 guide rails, B590.48909.0
