Heated drinking troughs & feeders

Heatable cast iron drinking bowl with float for sheep, goats, pigs and dogs.Frost-proof down to -20°C40 W / 24 V integrated heating elementIntegrated thermostatCast iron bowl, plastic-coatedFloat valve for constant water level up to max. 5 barDrain plug for easy emptying and cleaning1/2" connection left or rightAttention: Transformer required (not included)

​Heated cast iron drinking trough with float for sheep, goats, pigs, and dogs.Frost-proof down to -20°C40 W / 24 V integrated heating elementIntegrated thermostatCast iron bowl, plastic-coatedFloat valve for constant water level up to max. 5 barDrain plug for easy emptying and cleaning1/2" connection, left or rightNote: Transformer required (not included)B-stock returns

Circulation heater including circulation pump with integrated heating element for year-round operationThe ideal solution for supplying animals with tempered water.The constant water movement and the switchable heating offer double protection against freezing .3-stage switching: 0 = off, 1 = circulation mode, 2 = circulation and heating modeautomatic control of the set water temperatureautomatic safety shutdown in the event of overheating Quick vent valve on the radiator Easy installation by authorized specialists Low space requirement due to compact design Very maintenance-friendly Components can be quickly disconnected and dismantledFor drinking systems with a ring pipe length of max. 250 m (with pipe diameter 3/4?)Housing made of stainless steelCirculation pump with three different speed levels Technical data:- 230 V- power circulation pump 50 W- power heating element 3,000 W- water connection 1? (input + output)- water pressure max. 5 bar - Dimensions 520 x 410 x 285 mm (LxWxH) - Weight 6.7 kg - Protection class IPX4D - Temperature controller +5 - +35C - Factory setting +5 on +15C off ~Scope of delivery: ~< /strong>Circulation pump, flow pipe with integrated heating element, check valve, quick vent, pressure relief valve, pump screw connection G 1 "- Rp. 1" for circulation pump. ~PLEASE NOTE:The branch lines should be frost-free using heating cables be kept!The installation location of the pump should be protected from wind, weather and frost!Make sure that the pipeline is sufficiently insulated (20 mm) and avoid strong bends!It is recommended to have a pressure equalization vessel with a flow through it of the ring main to be installed in a frost-proof area (designed by a specialist installer, not included in delivery).With a 3/4? pipe diameter, up to 250 m of ring main is possible. Flow indicator and thermometer available as optional accessories ~ ~

​Compact float valve for water heaters. Suitable for a water pressure of 1-5 bar. Water output approx. 20 litres/min at 5 bar. Connection 1/2’ eyelet thread from above.Height 135 mmWidth 130 mmDepth 80 mm

​Float drinker made of high-quality plastic. Valve also suitable for low pressure! Valve cover with snap-on hook for quick access and easy cleaning. With drain plug. Connection 1/2” external thread left or right possible. Volume approx. 5 liters

Drinking bowl made of high-quality plastic with integrated heating cable (approx. 73 W, 230 V) for heating the drinking bowl, valve and up to 2 m of pipework (pipe heating). Integrated frost protection thermostat (switch-on temperature approx. +5 C, switch-off temperature approx. +13 C), heating cable easily replaceable, suitable for circulation heating systems. Valve cover with snap hook for quick access, volume: 5 l, water flow: approx. 6.5 l/min (2-3 bar), 1/2" water connection possible from left and right, including drain plug for easy cleaning , suitable for wall and pipe mounting, weight: 2.7 kg, frost-proof down to approx. -15 C.

For horses and cattle. The DRINKING POST 1800 mm supplies your animals with fresh drinking water in summer and even frost-free in winter without electricity. The pasture drinker has a total height of 183 cm and a drinker diameter of approx. 180 mm. The frost-proof waterer guarantees fresh water all year round on the pasture, in the paddock or running yard. Cattle or horses pump fresh drinking water into the drinking bowl with the pressure tongue, with the remaining water draining back down through the DRINKING POST 1800 into the ground below the frost line. And the best thing: the drinker is frost-proof even without electricity.The most important advantages at a glance:Frost-proofNo heating costs, the drinking column works without electricityBecause heating devices are unnecessary, there is no need for the safety checks of the electric heating devices and their regular maintenance Always well-tempered water for the animals, not too cold in winter and pleasantly cool in the winter SummerEasy installationThe only requirement: a frost-proof water connection with 1.75 4.5 barAnd even more: Fresh water for the animals at all times Algae formation is eliminated The risk of transmission from conventional drinking troughs is largely eliminated because germs or bacteria are practically unable to multiply li>No standing water See graphic for construction and installation diagram!The drinking column can also be used for others using an adapter Animals such as sheep, goats, alpacas, llamas or pigs are used. Order No. 124026 (not included)

For horses and cattle. The DRINKING POST 2100 mm supplies your animals with fresh drinking water in summer and even frost-free in winter without electricity. The pasture trough has a total height of 210 cm and a trough diameter of approx. 180 mm. The frost-proof waterer guarantees fresh water all year round on the pasture, in the paddock or running yard. Cattle or horses use the pressure tongue to pump fresh drinking water into the drinking bowl, with the remaining water draining back down through the DRINKING POST 1800 into the ground below the frost line. And the best thing: the drinker is frost-proof even without electricity.The most important advantages at a glance:Frost-proofNo heating costs, the drinking column works without electricityBecause heating devices are unnecessary, there is no need for the safety checks of the electric heating devices and their regular maintenance Always well-tempered water for the animals, not too cold in winter and pleasantly cool in summer li>Easy installationThe only requirement: a frost-proof water connection with 1.75 - 4.5 barAnd even more: Fresh water for the animals at all times Algae formation is eliminated The risk of transmission from conventional drinking troughs is largely eliminated because germs or bacteria can practically not multiply No standing water See graphic for construction and installation diagram!The drinking column can also be used for other animals such as sheep, goats, using an adapter. Alpacas, llamas or pigs can be used. Order No. 124026 (not included)

For sheep and goats.The DRINKING POST 1200 mm supplies your animals with fresh drinking water in summer and even frost-free in winter without electricity. The pasture trough has a total height of 120 cm and a trough diameter of approx. 180 mm. The frost-proof waterer guarantees fresh water all year round on the pasture, in the paddock or running yard. Cattle or horses use the pressure tongue to pump fresh drinking water into the drinking bowl, with the remaining water draining back down through the DRINKING POST 1800 into the ground below the frost line. And best of all: the waterer is frost-proof even without electricity. Delivery includes valve adapter for sheep, goats and pigs.The most important advantages at a glance:Frost-proofNo heating costs, the drinking column does not require electricity Because heating devices are unnecessary, there is no need for the safety checks of the electric heating devices and their regular maintenance Always well-tempered water for the animals, not too cold in winter and pleasant cool in summerEasy installationThe only requirement: a frost-proof water connection with 1.75 4.5 barAnd even more:< br>Fresh water for the animals at all times Algae formation is eliminated The risk of transmission from conventional drinking troughs is largely eliminated because germs or bacteria are practically unable to multiply No standing water See graphic for construction and installation diagram!

Suitable for high and low pressure 0-6 bar. 16 liters. 395 x 400 x 340 mm.Made of sturdy, impact-resistant polyethylene, smooth surface and a curved design specifically for animal safety. The drinker has a raised valve housing and is equipped with a PVA float valve with ½" connection (male thread) made of brass, which can deliver 30 l/min at 3 bar pressure. The large volume makes this drinker ideal for larger animals or groups of small animals. The built-in drain allows for quick and easy cleaning.

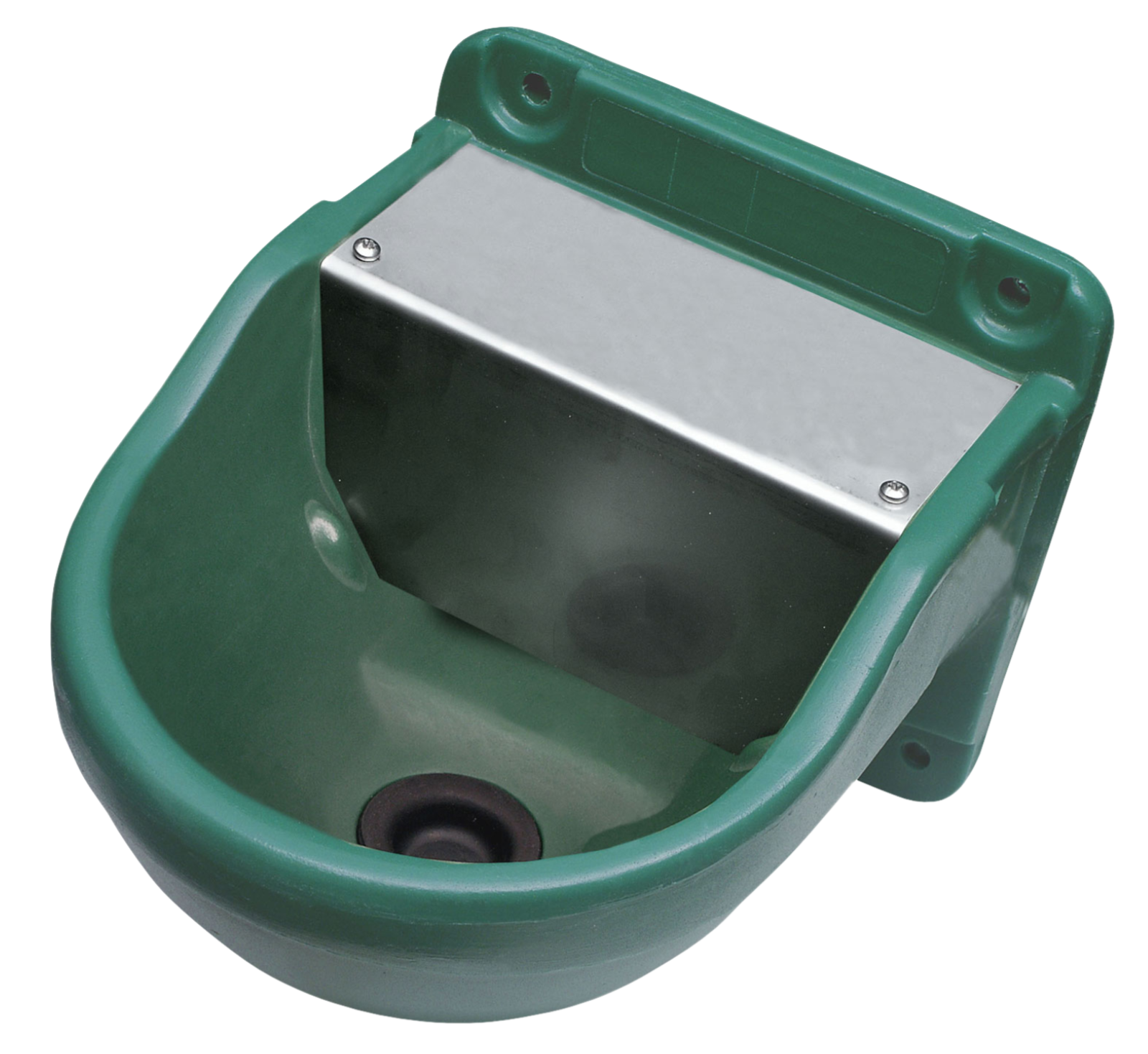

Suitable for low pressure up to 0.5 bar. 4 liters. 330 x 254 x 228 mm. Made of sturdy, double-walled polyethylene, shock-resistant, smooth surface and curved design, specially developed for animal safety. PVA float valve with ½" connection (male thread). The integrated drainage system allows for quick and easy cleaning.

Suitable for high pressure up to 8 bar. 4 litres. 330 x 254 x 228 mm. Made of robust, double-walled, impact-resistant polyethylene, smooth surface and a curved design specifically for animal safety. PVA float valve with ½" connection (male thread). The built-in drain allows for quick and easy cleaning.

​With float. DN25, 1” external thread. Suitable for circulation pump C10

Heatable cast iron drinking bowl with float for cattle, horses, sheep, goats, pigs and dogs.frost-proof down to -20C80 W / 24 V heating element integrated< /li>Sufficient for 15-20 animalsCast iron bowl, white enamelled inside Easy regulation of the water level Water flow up to 5 l/ min. Attention: Due to the float valve, the water pressure must not exceed 5 bar!

Pools for cattle, cows, bulls, horses, pigs. Made of cast iron, white enamelled inside.Frostproof up to -25C. With smooth-running pressure tongue, non-return valve with a large water inlet of up to 15 l/min. Easily adjust the amount of water to the existing water pressure by replacing the 4 nozzles provided. Can be used up to a maximum of 6 bar water pressure. The valve closes slowly against the water pressure, avoiding shocks in the water pipe. Reliable function even with iron-containing or aggressive water. 24 V, 80 W heating element integrated. Price without transformer!

Heatable drinking bowl (24 V, 80 W) with smooth-running pipe valve for wall and pipe mounting. Frost-proof up to -15C. The remaining water in the bowl cannot freeze. Drinking bowl made of cast iron, entirely enamelled, one drinker is sufficient for 15 - 20 animals. The heating element is mounted between the drinking bowl and the lower bowl, inaccessible to the animals but still accessible in just a few steps. Pipe valve made of brass (3/4"), connection female from above and male from below, water quantity infinitely adjustable from the outside using a regulating screw. Heating coil with 24 V, 80 W, with low power consumption. Installation on the wall or on a 2" - 3 post " possible.

?Drinking tub made of stainless steel Water connection from left or right 3/4"Water flow 45 l/min at 5 bar / 41 l/min at 3 bar With electric heating 24 volts 200 watts Galvanized wall bracket and base frame Large drain opening and inclined tub base enable the water to drain quickly and the tub to self-clean < li>Expansion sealing plug for quick opening and closing of the drainDrain connection suitable for KG pipe DN 100with 3/4" high-performance float valveEasy to close valve cover openOperation with transformer (not included in delivery!)Valve XtraFlo with 250 l/min at 3 bar optionally available with heating, frost-proof down to approx. -15 CDimensionstrough drinker 100 cm: external dimensions with wall bracket 117 x 60 x 64 cm (LxWxH), external dimensions with base frame 122 x 58 x 102 cm (LxWxH)Trough drinker 190 cm: External dimensions with wall bracket 207 x 60 x 64 cm (LxWxH), external dimensions with base frame 212 x 58 x 102 cm (LxWxH)

Heatable drinking bowl with pipe valve, with heating output approx. 80 W, 24 V. Drinking bowl made of high-quality gray cast iron, black enamelled. Gray cast iron lower shell, black powder-coated. Water flow can be regulated at the pipe valve. New heating concept with valve heating to keep it frost-free. Easy to assemble basin, no need to remove valve for installation. Power supply via transformer at least 100 watts (not included in delivery!). Connection options from above and below G1/2" internal thread. Weight 11.5 kg, basin volume 1.6 liters, suitable for pipe and wall mounting, suitable for circulation heating systems, easy power connection through external terminal box. Frostproof up to approx. -20 C!

With pipe trace heating (RBH)230 volts / 66 watts (frost protection up to approx. -25C). Plastic drinking bowls for horses, cattle and sheep. Float valve suitable for domestic and well water. Animal-friendly drinker without pressure tongue, very robust and bite-proof. Adjustment of the valve to the local water pressure via two additional valve nozzles (included). Also suitable for low pressure. With pipe heating cable for heating the drinking bowl, the valve and up to 2 meters of pipe (min. 1 meter, max. 2 meters). The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. No transformer required!Width: 240 mmThrow: 340 mmHole spacing: 100/180 mmConnection: R 1/2 external thread from aboveWater output: approx. 6.2 l/min. at 1-3 barPool volume: approx. 2.3 lWeight: approx. 1.7 kg

With heating cable24 volts / 45 watts (frost protection up to approx. -25C). Plastic drinking bowls for horses, cattle and sheep. Float valve suitable for domestic and well water. Animal-friendly drinker without pressure tongue, very robust and bite-proof. Adjustment of the valve to the local water pressure via two additional valve nozzles (included). Also suitable for low pressure. With heating cable for heating the drinking bowl and the valve. The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. Additional T-piece for mounting on a circulation system. Suitable for circulation systems! Transformer required (not included in delivery!)Width: 240 mmThrow: 340 mm Hole spacing: 100/180 mmConnection:R 3/4 external thread from aboveWater output: approx. 7.2 l/min. at 1-3 barPool volume: approx. 2.3 lWeight: approx. 1.7 kg

With heating cable230 volts / 45 watts (frost protection up to approx. -30C). Plastic drinking bowls for horses and cattle. With reinforcement bead on the edge of the pool. Guaranteed to be dimensionally stable and bite-proof. Pressure tongue with stop device. Plastic valve with high water output. Water connection from above and below or direct connection to horizontally laid water pipes (only with additionally available accessories!). With heating cable for heating the drinking bowl and the valve. The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. Suitable for circulation systems! No transformer required!Width: 220 mmThrow: 280 mmHole spacing: 100 mm Connection: R 1/2" internal thread from top and bottom Water output: approx. 19.6 l/min. at 5 bar Pool volume: approx. 1.0 l Weight: approx. 1 kg

With pipe trace heating (RBH)230 volts / 66 watts (frost protection up to approx. -30C). Plastic drinking bowls for horses and cattle. With a reinforcing bead on the edge of the pool, guaranteed dimensionally stable and bite-proof. Pressure tongue with shut-off device, plastic valve with high water output. Water connection from above and below or direct connection to horizontally laid water pipes possible (only with additionally available accessories!). ~With pipe trace heating cable (RBH) for heating the drinking bowl, the valve and up to 2 meters of pipe (min. 1 meter, max. 2 meters). ~The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. Suitable for circulation systems! No transformer required!Width: 220 mmThrow: 280 mmHole spacing: 100 mm Connection: R 1/2" internal thread from top and bottom Water output: approx. 19.6 l/min. at 5 bar Pool volume: approx. 1.0 l Weight: approx. 1 kg

With heating cable230 volts / 45 watts (frost protection up to approx. -35C). Plastic drinking bowls for horses and cattle. Extra large drinking bowl made of bite-proof, robust plastic. Smooth-running pendulum valve with water regulating screw made entirely of brass. Simplified cleaning thanks to the removable plastic stopper in the middle of the drinking bowl. With heating cable for heating the drinking bowl and the valve. The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. Suitable for circulation systems! No transformer required!Width: 257 mmThrow: 305 mmHole spacing: 136 x 100 mmConnection: R 1/2 internal thread from top and bottomFastening: according to DIN 11840 B136Water output: approx. 11 l/min. at 5 barPool volume: approx. 2.0 lWeight: approx. 2 kg

With pipe trace heating (RBH)230 volts / 66 watts (frost protection up to approx. -35C). Plastic drinking bowls for horses and cattle. Extra large drinking bowl made of bite-proof, robust plastic. Smooth-running pendulum valve with water regulating screw made entirely of brass. Simplified cleaning thanks to the removable plastic stopper in the middle of the drinking bowl. With pipe heating cable (RBH) for heating the drinking bowl, the valve and up to 2 meters of pipe (min. 1 meter, max. 2 meters). The integrated frost protection thermostat switches the cable on at approx. +5C and off again at approx. +15C. Suitable for circulation systems! No transformer required!Width: 257 mmThrow: 305 mmHole spacing: 136 x 100 mmConnection: R 1/2 internal thread from top and bottomFastening: according to DIN 11840 B136Water output: approx. 11 l/min. at 5 barPool volume: approx. 2.0 lWeight: approx. 2 kg
