Suitable for brd-busatis
Needle bushing BK2538 �25x�32x38mm 2-row instead of ESM 590.1900
Needle bush for crank bearing housing suitable for Busatis/ESM double-blade mower.
Outer shoe plate
Suitable for BUSATIS mower Bidux 1205
Outer shoe plate suitable for Reform Metrac with Busatis mower
Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.
Outer shoe sole 238.1260
Knife holder for lower knife guide arm for riveting. Suitable for Busatis double knife mower BM 321KW, BM 1102, BM1124, BM1260.
Outer shoe with cleat
Outer shoe including cleat with short (52mm) nose. Suitable for Busatis double knife mower system bidux BM 1205, BM 1370.
Outer shoe with cleat suitable for Busatis
Outer shoe including cleat with long (70mm) nose. Suitable for Busatis double knife mower BM 321KW, BM 1101, BM 1102, BM 1124, BM 1135, BM 1260.
Plastic plain bearing �27.3x�30/38x20mm, 324.2930
Plastic plain bearing for rocker arm on double knife horizontal swing mower drive. Suitable for Busatis, Busatis bidux and ESM double knife bars.
Raised countersunk screw M10x43 for crank drive
Raised countersunk screw for crank drive system Busatis and system bidux.
Rear fescue lever complete for lower knife, 267.1960
Rear swing arm complete with plain bearing, swing pin and lower blade ball joint. Suitable for Busatis and ESM double-blade mowers with hydraulic swing arm drive. The hole in the lower blade ball joint for mounting the cutterhead pivot has a diameter of 16.4 mm.
Rocker arm bottom knife bidux system, instead of ESM 267.6020
Rocker arm for the bidux system drive, completely pre-assembled with ball joint and rocker bolt.
Rocker arm upper knife bidux system, instead of ESM 267.6010
Rocker arm for the bidux system drive, completely pre-assembled with ball joint and rocker bolt.
Screw M12x25 with tip to ball joint, instead of ESM 323.2630
Suitable for BUSATIS mower Bidux 1205
Set knive head for bottom knife bidux-System to replace ESM 247.2730
Knife head, complete with fixing screws, ball joints and pivot pins for the bidux double-blade system. Suitable for double-blade mowers from Aebi, ESM, IBEX and Köppl. The knife head is secured to the bottom blade using the screws included in the set. This means the knife head for the bottom knife can be used interchangeably on several blade sets.
Set knive head for top knife bidux-System to replace ESM 247.2720
Knife head, complete with fixing screws, ball joints and pivot pins for the bidux double-blade system. Suitable for double-blade mowers from Aebi, ESM, IBEX and Köppl. The knife head is secured to the upper blade using the screws included in the set. This means the knife head for the top knife can be used interchangeably on several blade sets.
Shoe plate 321.2490
Knife holder for lower knife guide arm for riveting. Suitable for Busatis double knife mower BM 321KW, BM 1102, BM1124, BM1260.
Special nut Busatis M10
Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.
Special nut Busatis M12, length 28,5 mm
Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.
Swing bolt 267.0670 cpl. to Busatis/ESM
Swing bolt complete for Busatis/ESM double knife mowers with horizontal swing arm drive.The swing bolt is screwed onto the rocker arms. By connecting the bearing housings to the drive, the rocker arms are moved forwards and backwards. This results in the upper knife moving in opposite directions to the lower knife and this ensures a clean cut.
Upper cutter head, L=400 mm, pin � 18 mm,
Suitable for BUSATIS mower Bidux 1205

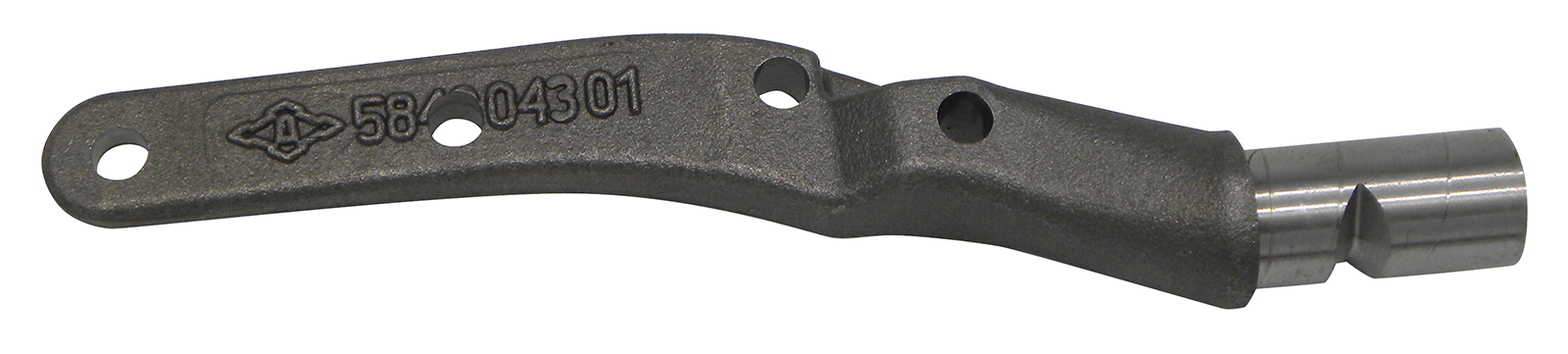

Upper cutter head, pin � 16 mm
Knife holder for lower knife guide arm for riveting. Suitable for Busatis double knife mower BM 321KW, BM 1102, BM1124, BM1260.
Upper cutter head, tenon � 16 mm, suitable for Busatis
Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.
Upper knife ball joint bidux left
Connection joint between rocker arm and upper cutter head. Thread M14x1.5, bore 18mm, left
