Mower spare parts

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

Support plate (middle plate) suitable for Pttinger drum mower Eurocat. The backing plate is painted, hardened and tempered.

​Swath plate left for motorised mower with outer shoe. The swath plate is supplied complete with the fastening material.Suitable for Agria, ESM, Köppl and Nussmüller Rasant finger bars.

Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

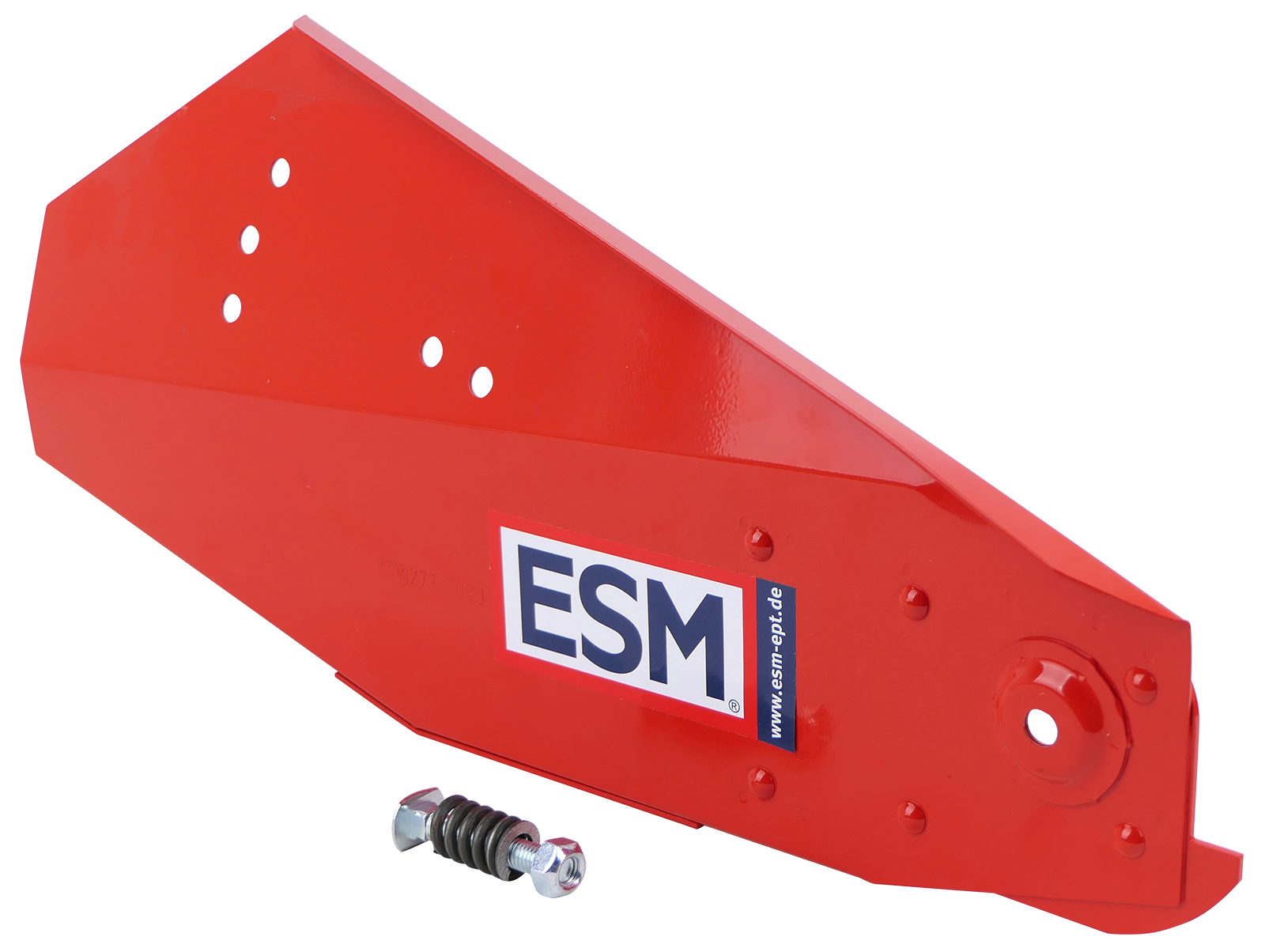

​Swath plate right for motorised mower with outer shoe. The swath plate is supplied complete with the fastening material.Suitable for Agria, ESM, Köppl and Nussmüller Rasant finger bars.

Swing bolt complete for Busatis/ESM double knife mowers with horizontal swing arm drive.The swing bolt is screwed onto the rocker arms. By connecting the bearing housings to the drive, the rocker arms are moved forwards and backwards. This results in the upper knife moving in opposite directions to the lower knife and this ensures a clean cut.

Tension spring with claw suitable for mowers from Mrtl, Rasspe and Steyr

Suitable for type RM158S, 110, 111, 111S, 112, 112K, 115, 131 from 1976

Top cutter head suitable for Vogel & Not Jet mowers with bidux double-blade mower deck. The cutter head is screwed onto the mower blade. Supplied complete with the fitting screws.

Top knife for double knife bar Busatis BM 321 KW with a total number of 19 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The positions of the blades with knobs, starting from the cutterhead, are on the 2nd, 7th, 12th and 17th blade. A cutter head plate is riveted under the upper cutter head. The pitch of the blades from blade centre to blade centre is 76 mm. The knife is supplied complete with the upper cutter head, on the left-hand side when viewed in the direction of travel.

Top knive for double knife bar Busatis with a total number of 22 blades. Of these, 5 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Moty Gigant motorised mowers with Busatis double blade mower. Overall length with cutterhead: 166 cm Length of cutter back: 166 cm Cutter head on the left in the direction of travel, offset 25 mm inwardsCutterhead length: 207 mm Total number of blades: 22, of which 5 blades with knobPosition of the blades with knob starting from the cutterhead: 3rd, 7th, 12th, 17th and 20th blade Blade pitch (blade centre to blade centre): 76 mm

​Top knive for double knife bar Busatis with a total number of 23 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Bucher and Reform Kombi M12 motorised mowers with Busatis double blade mower. Overall length with cutterhead: 179 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 56 mm projection over the back of the blade Cutterhead length: 232 mm Total number of blades: 23, of which 4 blades with knobPosition of the blades with knob starting from the cutterhead: 2nd, 8th, 15th and 21st blade Blade pitch (blade centre to blade centre): 76 mm

​Top knive for double knife bar Busatis with a total number of 23 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76,2 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Nussmüller-Rasant Junior 90 motorised mowers with Busatis double blade mower.Cutting width: 167 cm Overall length with cutterhead: 176 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 30 mm projection over the back of the blade Cutterhead length: 290 mm Total number of blades: 23, of which 4 blades with knobPosition of the blades with knob starting from the cutterhead: 3rd, 9th, 15th and 21st blade Blade pitch (blade centre to blade centre): 76,2 mm

Top knive for double knife bar bidux with a total number of 27 blades. Of these, 5 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Upper knife, 27 blades, 5 blades with knobTotal length with knife head: 1967 mmLength of knife back: 1880 mmKnife head 5840.040.01, 345.0550Protrusion of knife head over knife back: 90 mmLength of knife head: 400 mmTang cutter head: 18 mmPosition of the blades with knob starting from the cutter head: 3rd, 9th,15th, 21th and 26th. bladeBlade pitch (blade center to blade center): 70 mm

​Top knife for the bidux ESM double-blade bar, compatible with Aebi, IBEX and Köppl, with a total of 29 blades. Five of these are blades with knob for attaching the knife guide arms. The spacing between the centres of the blades is 70 mm. The knive is supplied without the blade head, which is screwed onto the left-hand side when viewed in the direction of travel. The upper-knive-head is secured with 3 M8 fixing screws. The blades with knob are positioned at the 3rd, 9th, 15th, 21st and 27th blades.

Top knife for the bidux double-blade bar system, with a total of 32 blades. Of these, 6 are blades with knob for mounting the blade guide arms. The spacing between the centres of the blades is 70 mm. The knife is supplied complete with the riveted upper blade head, located on the left-hand side when viewed in the direction of travel.Suitable for the Nussmüller-Rasant with bidux double-blade mower.Total length including blade head: 230 cmLength of blade backs: 223 cmBlade head on the left-hand side when viewed in the direction of travel, offset 68 mm outwards; blade head length: 380 mmTotal number of blades: 32, of which 6 are blades with knob, position of the blades with knob relative to the blade head: 3rd, 9th, 15th, 22nd, 26th and 31st bladesBlade spacing (centre to centre): 70 mm
