Mower spare parts

25 blades with 5 cleaning plates, 2 threaded holes M8, LA=122mm

21 blades DIN 80, 2 RPL1 guide bar long 110.422.317

Upper knifeTotal length with knife head: 2390mm Length of knife back: 2300mm Cutter head 5840.040.01, 345.0550 Protrusion of knife head over knife back: 90mm Length of knife head: 400mm Tang knife head: 18mm < br>Total number of blades: 33, of which 6 are mushroom blades Position of the mushroom blades starting from the knife head: 3rd/9th/15th/21st/27th/32nd. Blade and blade pitch (blade center to blade center): 70mm

Lower knife Total length with cutter head: 2440mm Length of cutter back: 2410mm Cutter head 5840.055.01, 345.0770 Protrusion of cutter head over cutter back: 28mm Length of cutter head: 400mm Tang cutter head: 18mm < br>Total number of blades: 29, of which 5 are mushroom blades Position of the mushroom blades starting from the knife head: 6th/11th/16th/21st/26th. Blade and blade pitch (blade center to blade center): 84mm

19 blades DIN 80, 6 cleaning plates REFORM 80

17 blades DIN 80, 8 cleaning plates REFORM 80

21 blades DIN 80, 10 cleaning plates. REFORM 80

with threaded holes, hole spacing 152 mm19 blades DIN 80, 6 cleaning plates, 1 short guide bar 110422315.0

with threaded holes, hole spacing 152 mm21 blades DIN 80, 10 cleaning plates, 1 short guide bar 110422315.0

Upper knife, 25 blades

Upper knife, 21 blades

19 blades DIN 80, 4 cleaning plates, 1 long guide bar 110.422.317

17 blades DIN 80, 4 cleaning plates, 1 short guide bar 110.422.315.0

21 blades DIN 80, 6 cleaning plates, 1 long guide bar 110.422.317

Mower blade suitable for Autro-Rapid, Moty, Rapid and Vogel & Noot motorised mowers, as well as for ESM bars. The holes for the fastening rivets are countersunk on the underside.

​Original serrated mower blade with knob suitable for Busatis double blade mowers.Made in Germany.Original ESM Carbodux blade.

​Original serrated mower blade suitable for Busatis double blade mowers.Made in Germany.Original ESM Carbodux blade.

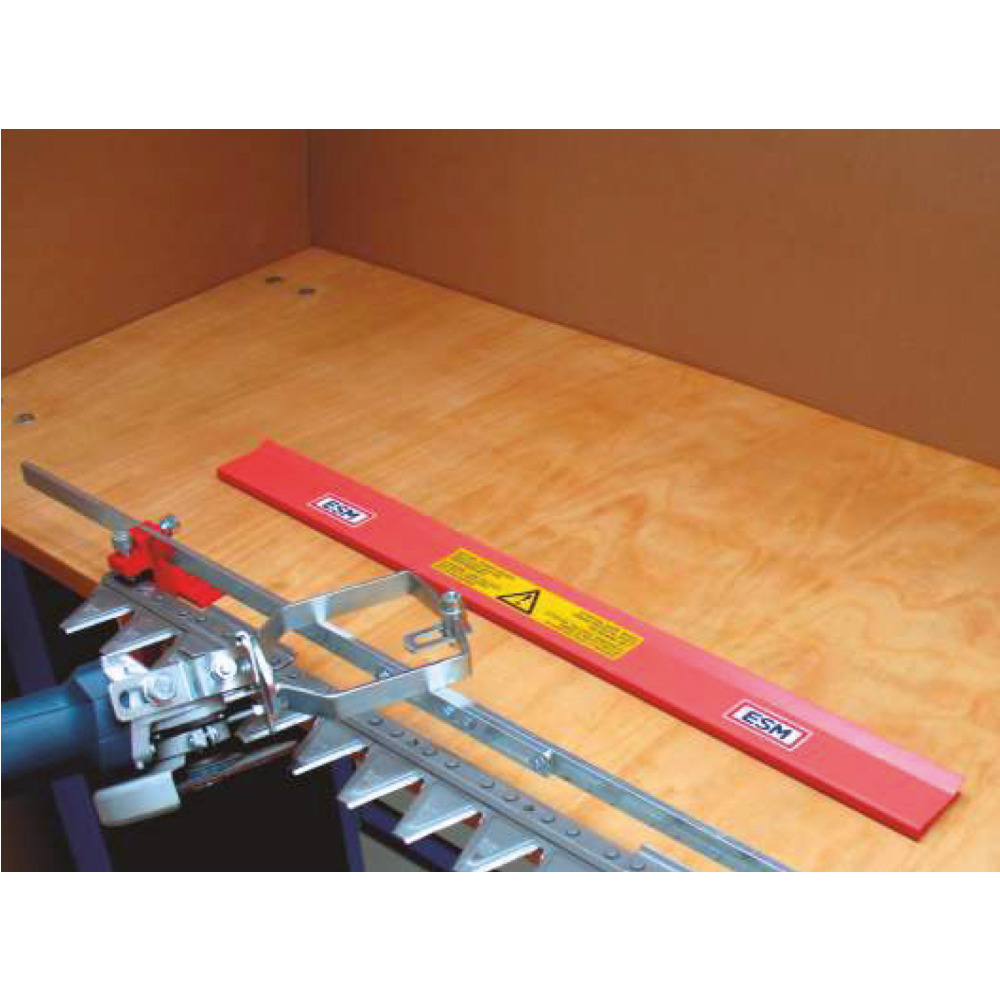

Now with a universally usable grinding attachment for standard angle grinders with a grinding wheel diameter of 125 mm. Function and easy handling determine the concept of the ESM service station. All ESM knife types can be precisely sharpened with a blade cutting angle of up to 40. The grinding attachment holder, which can be adjusted in all levels, enables adaptation to angle gears of angle grinders from a wide range of manufacturers.As an additional product benefit, the ESM service station offers the option of holding ESM cutter bars in order to be able to carry out maintenance work on them.The ESM Service station consists of two clamping devices, the mower blade grinding attachment for angle grinders with a grinding wheel diameter of 125 mm, and a guide rail. The components can be easily and quickly fixed on any standard workbench. For long-term use, screwed fastening of the clamping devices via their additional support plates to the table support is recommended.The grinding attachment is adjusted to the structural conditions of the available angle grinder after the handle of the angle grinder has been unscrewed. It is possible to adjust the height, width, depth and angle of the attachment.The mower blade is secured in the clamping device by two screws, the angle grinder with attachment is placed on the guide rail and the grinding wheel is attached to the blade cutting edge by moving it back and forth guided along.The angle adjustment in the hinge point of the grinding attachment ensures a repeatable, true-angle grinding of the blades and thus optimal blade sharpness.Scope of delivery: 2 clamping devices, 1 guide rail, 1 mower blade grinding attachment for Angle grinder with grinding wheel diameter 125 mm

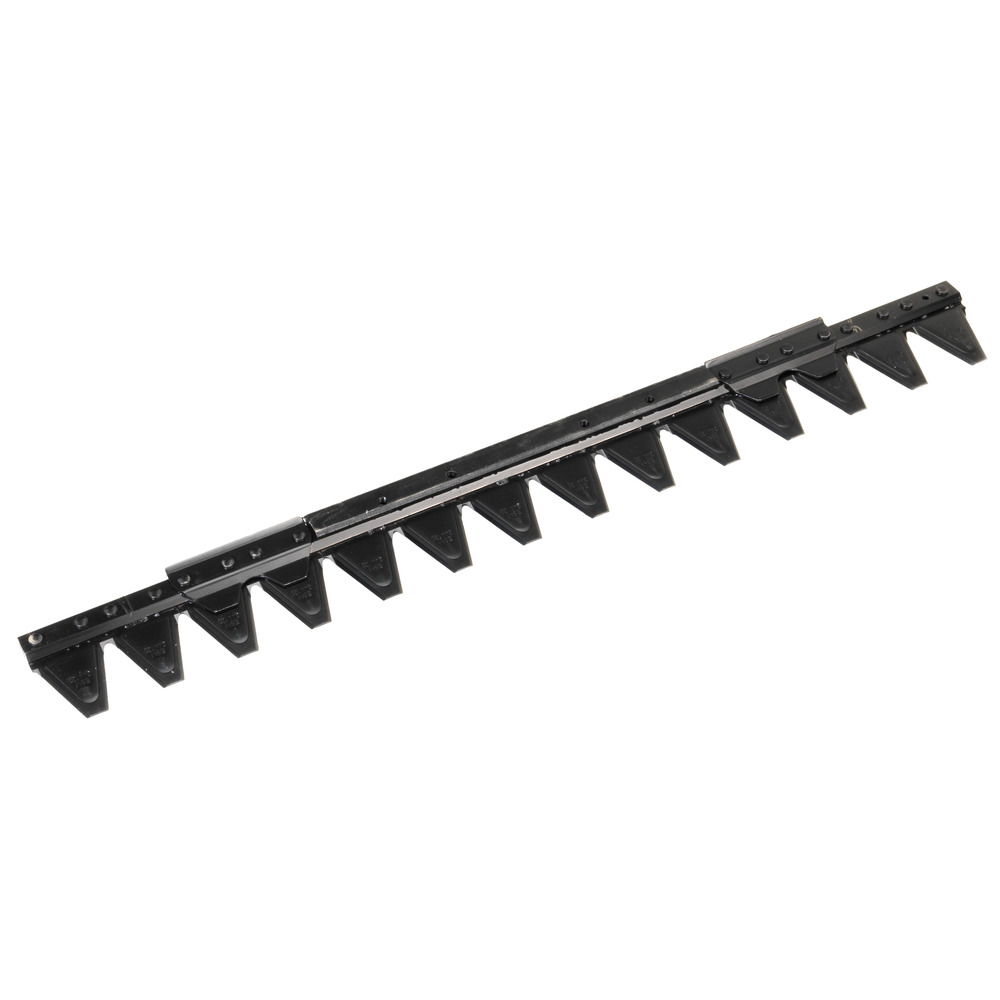

Mower bladeOriginal ESM suitable for AGRIA 1700, 2400, 3400, 5400, 5500 with planetary drive up to 2001, cutter head link 38mm, ESM universal beam, 4 threaded holes M8, with reinforcement strip 6mm, hole spacing 101.6/152, 4mm

14 blades

18 blades

20 blades

19 blades, 4 cleaning plates

21 blades, 6 cleaning plates
