Slurry compressor, slide valve

Blind flange, surface raw

Surface untreated.

Compressor fin for Battioni and Pagani

Battioni &~ Pagani. ~

Drip oiler for vacuum pump

simple, 1/4? connection.

Drip oiler for vacuum pump

double, connection 1/4?.

Flange plate with hole

Flange plate with hole for connecting fittings and pipes. The surface of the flange plate is untreated and is therefore suitable for welding on various connecting parts. ~

flange socket

8"~ x 200 mm, hole pattern 180x180 mm, tube inner 206 mm, tube outer 220 mm

flange socket

4"~, 5"~, 6"~ x 150 mm, hole pattern 150x150 mm, tube inner 157 mm, tube outer 169 mm

Flange socket 6 with 17� inclination for quick couplers

The flange socket with a 17 inclination is often used as an adapter between a quick coupler and the gate valve. The 17 inclination makes the quick coupler easier to use and the hose line easier to attach.

Handle for hoses

Galvanized, fastened with the help of an additional wide band clamp

Lever set MZ with clamping screw

To fix the slider in the open position.For brass manure sliders and knife sliders.

Lever slide with threaded connection

Brass lever slide with internal thread.

Manure scraper cylinder

Fully galvanized, hydraulic connection 12L, thread M18x1.5. Single-acting, reset by maintenance-free gas spring, screw-in thread on the manure scraper M30x2.

Manure scraper with 2 flange connection, lightweight design

Flange hole pattern 150x150 mm, bore 13 mm

Manure scraper with 2 flange connections and reduced tendency to clogging, heavy-duty design

Due to the enlarged housing to 102 cm and the resulting larger gaps in the flow area, these manure scrapers are no longer as susceptible to clogging due to solid particles (straw, hay, leftover feed, etc.) in the manure. See also heavy-duty manure scraper with threaded connection. Max. pressure 4 bar. Flange hole pattern 150 x 150 mm

Manure scraper with flange and threaded connection

Flange hole pattern 150x150 mm, bore 13 mm

Manure scraper with threaded connection, heavy duty

Due to the enlarged housing to 102 cm and the resulting larger gaps in the flow area, these manure scrapers are no longer as susceptible to clogging due to solid particles (straw, hay, leftover feed, etc.) in the manure.

Manure scraper with threaded connection, lightweight design

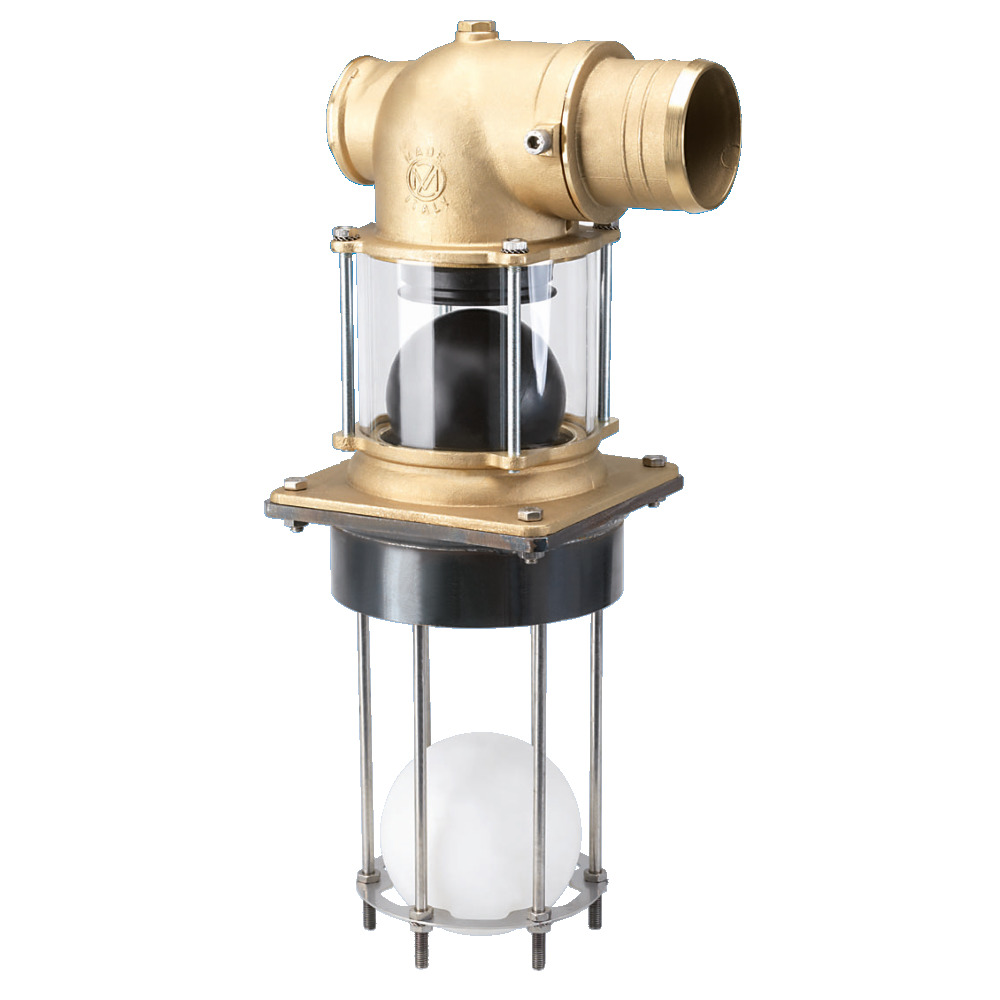

Overflow valve with 2 balls

The overflow valve has a connection for a pressure relief valve with a 2? internal thread and for a vacuum gauge with a 3/8? internal thread. The large float ball is a lightweight PVC ball. The smaller PVC ball attached to the sealing lip is heavier in order to achieve optimal sealing.

Plexiglas base for siphon with bayonet lock

Translucent Plexiglas base for the MZ siphon safety device. It is 160 mm deep.

Plexiglass base for siphon

with internal thread, inner 110 mm

Plexiglass base for siphon

with ring closure

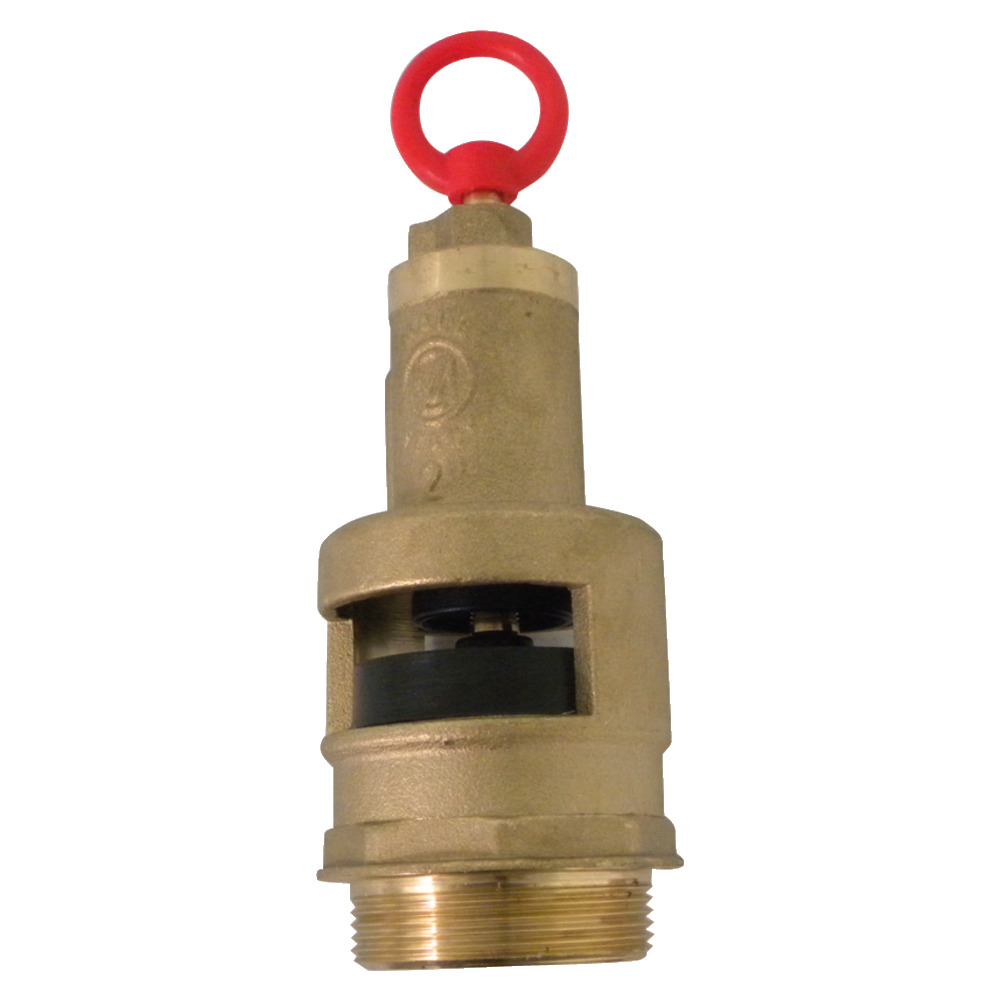

Pressure relief valve 0.5 bar

TV tested, setting range: 0.3 to 1.5 bar

RIL lever set for opening manure scrapers

Can be used for 4"~, 5"~ and 6"~ Brass gate valves and knife gate valves.

Rubber flange seal for 4' - 6' piston valves

With 2 fabric inserts for higher pressures, thickness 5 mm, 180x180x5 mm, hole spacing 150x150 mm.
