Cultivator & garezing tines

Cooking tine with share

Cooking tine from European production. ~ The tine material has a width of 25mm and a thickness of 8mm.

Cooking tines suitable for rough

for the front row, tine material 25x8.

Cooking tines without a share

Tine material 25x8.

Cooking tines without a share

for the front row, tine material 25x8.

Coulter straight 35x5x135

Coulter suitable for Germinator Gare tines, straight version.

Coulter straight 40x6x215 mm

Crowd loose

Working width 50 mm.

Crowd loose

Working width 105 mm, suitable for Regent chipper.

Crowd loose

Working width 180 mm, suitable for Regent chipper.

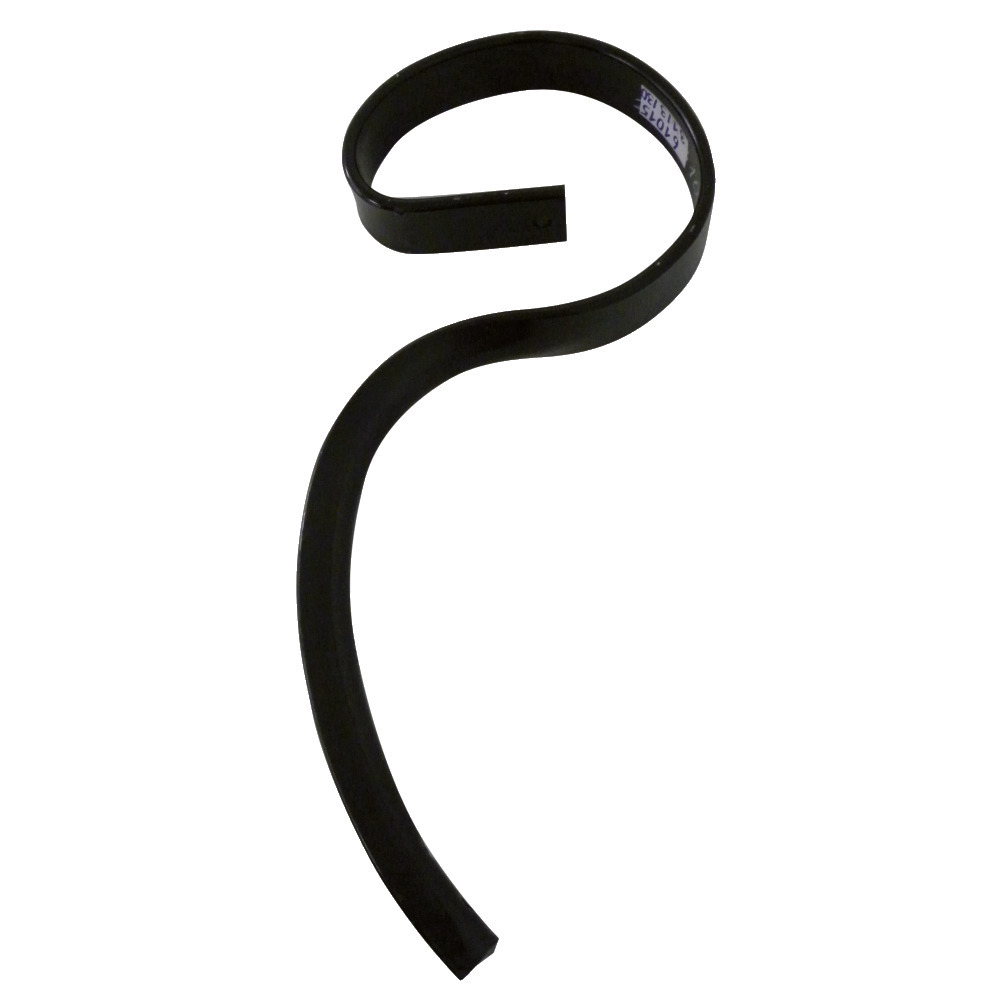

Cultivated harrow tine heavy without share

Cultivated harrow tine straight with share

Tine material 32x12

Cultivated harrow tine straight with share

Prong material 32x10.

Cultivated harrow tines with share

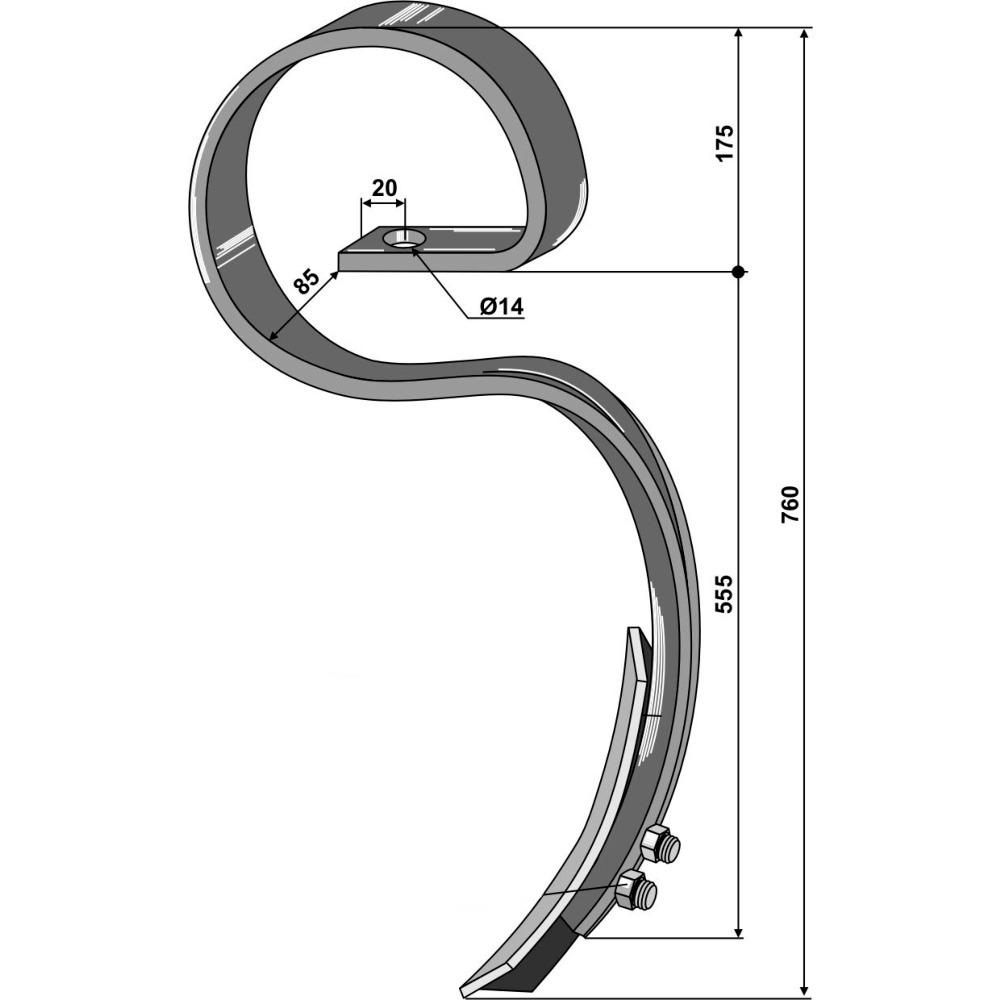

Cultivation harrow tine heavy complete, 70x12

Garezinken Germinator with share

straight version, tine material 32x10

Goosefoot share 180x5 mm

Goosefoot share 200x6 mm

Gänsefußschar mit 200 mm Arbeitsbreite und einer Materialstärke von 6 mm. Die Bohrungen für die M10x60 Planetenschrauben haben einen Vierkant von 11 mm und der Lochabstand beträgt 45 mm.

Goosefoot share 70 mm

Holder for cooking and cultivating harrow tines

Holder with reinforcement spring

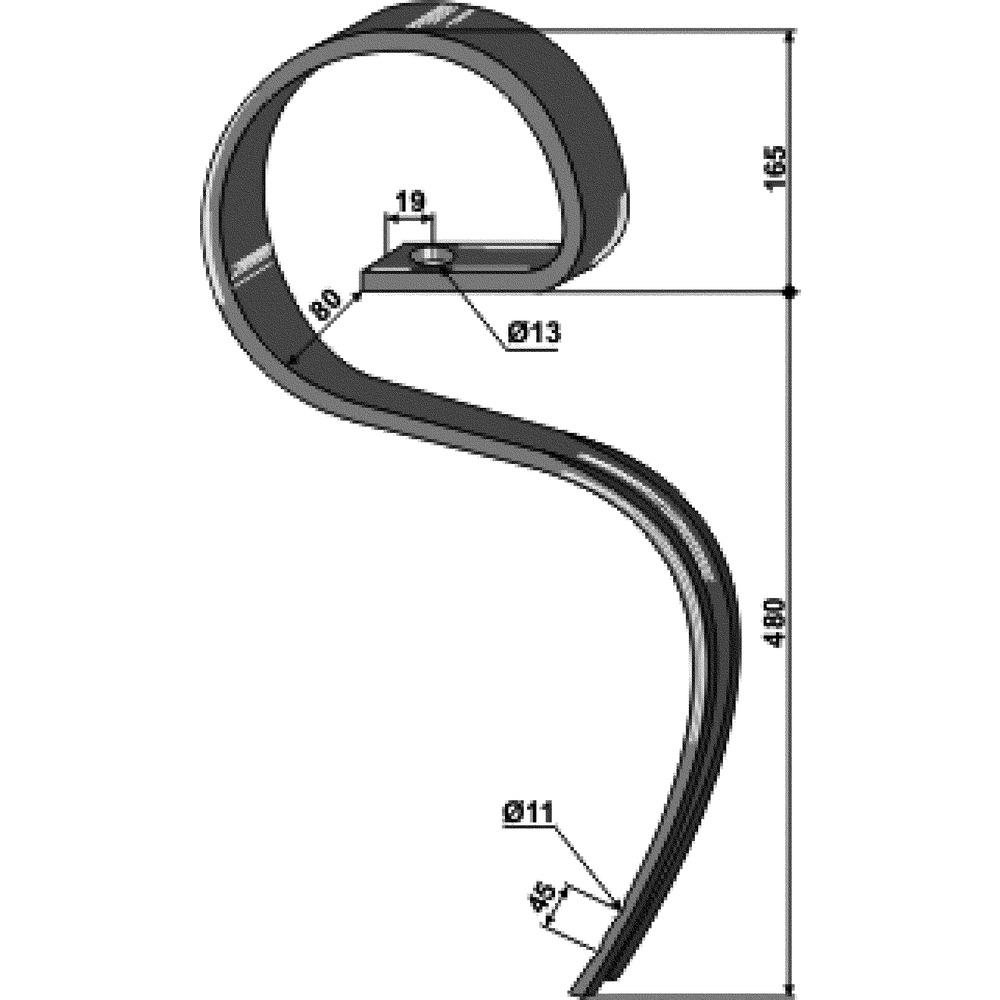

Large spring tine 45x12

without a crowd

Large spring tine, 45x12 heavy

with flock

Reinforcement spring 32x10

for cultivating harrow tines 32x10 and 32x12

Reinforcement spring 45x10 mm

​The reinforcement spring for the large spring tine (45 x 12 mm) with an integrated eyelet at the end serves to stabilise the tine during soil cultivation, prevent it from bending sideways, and thereby ensure a consistent working depth. This spring supports the main tine and is fitted directly into the bend of the large spring tine. If a reinforcement spring is fitted retrospectively, the tine holder must also be replaced, depending on the frame size.
