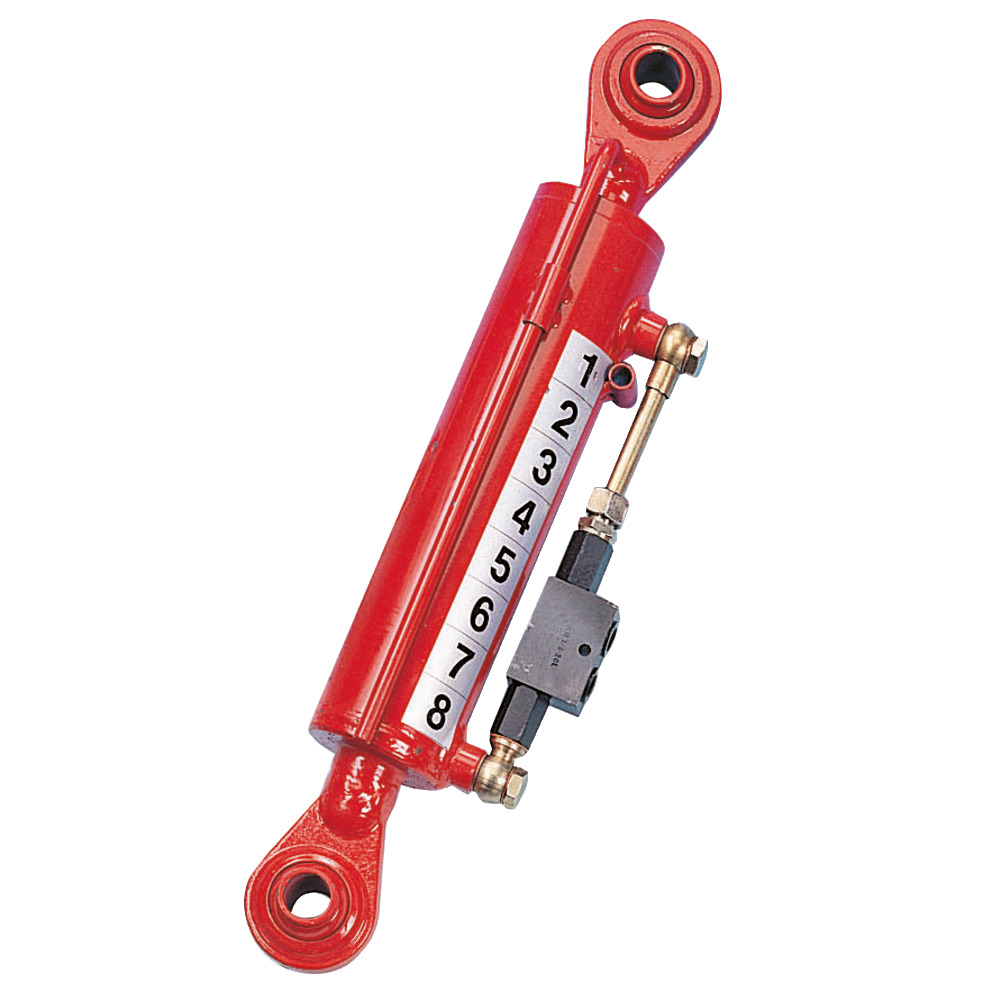

Hydraulic top link with ball eyes on both sides
€335.00
Only a few in stock (Delivery time: 1–3 business days)
Choose a variant – you will find all technical data of this variant under “Properties”. Show all data
Click a row: all technical data of this variant appears under “Properties”.
| Order no. | Installation length (EL) (mm) | Length max (mm) | Length min (mm) | Stroke (mm) | Price | Delivery time | Quantity and buy |
|---|---|---|---|---|---|---|---|
| 52799 | 457 | 647 | 457 | 190 | €315.00 |
in stock (Delivery time: 1–3 business days) |
|
| 52800 | 507 | 747 | 507 | 240 | €325.00 |
in stock (Delivery time: 1–3 business days) |
|
| 52801 | 557 | 847 | 557 | 290 | €335.00 |
Only a few in stock (Delivery time: 1–3 business days) |
|
| 52688 | 657 | 1047 | 657 | 390 | €465.00 |
(Delivery time: 2-3 weeks) |
Description
Piston K = 70mm, piston rod S = 35mm, up to approx. 120HP, pressure force 6927kg, pulling force 5195kg.
The specified lengths always refer to the centre of the pin to the centre of the pin!
Data of the selected variant, order no. 52801
| A (mm): | 75 |
|---|---|
| B (mm): | 90 |
| Einbaulänge EL (mm): | 557 |
| Hub (mm): | 290 |
| Kugelaugen-Breite (mm): | 51 |
| Ø Bolzen (mm / Kat.): | 25/2 |
| Ø Rohr außen (R)(mm): | 80 |
