Tachometer with hour counter 12/24 V
Tachometer with hour counter 12/24 V

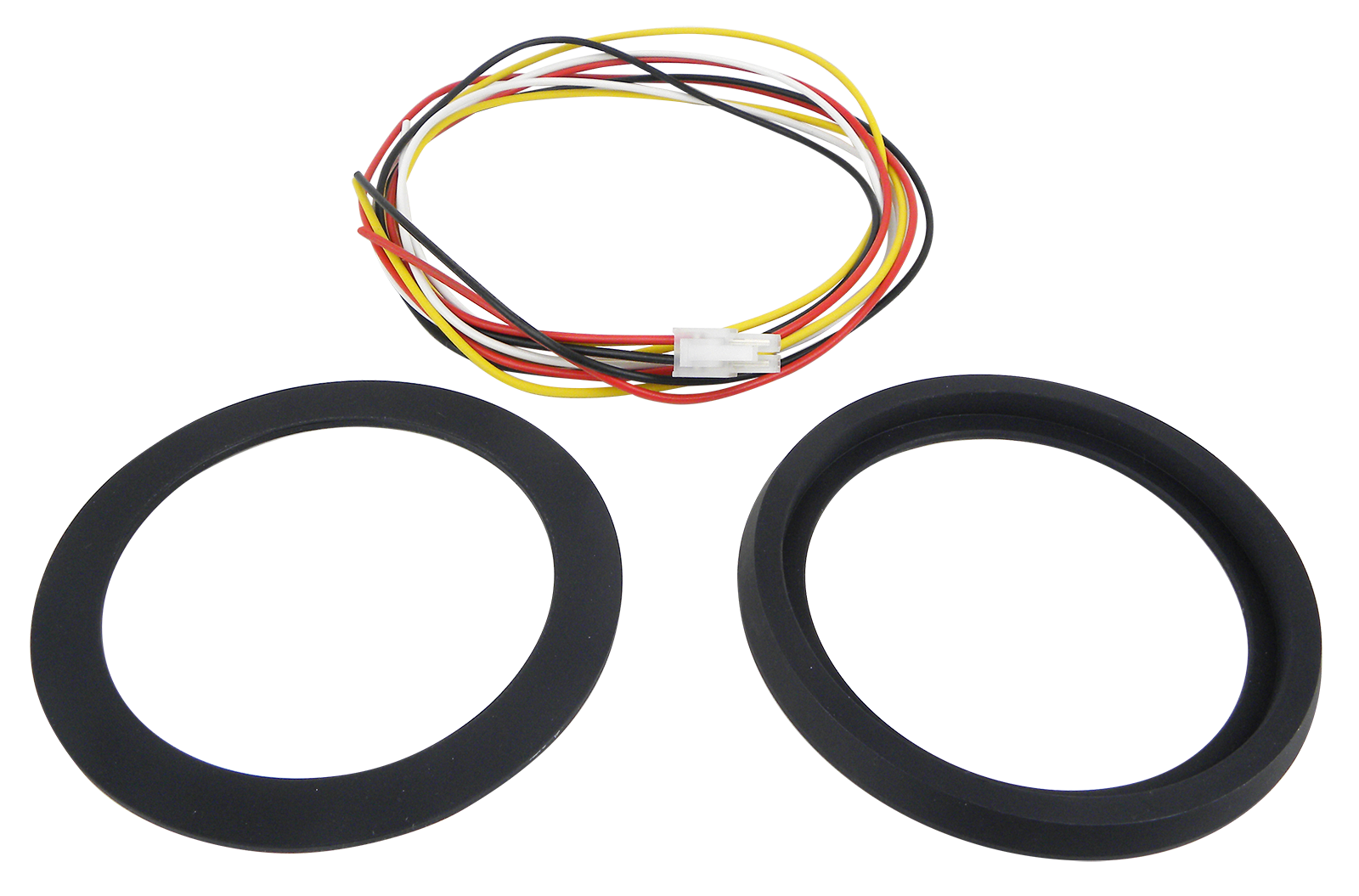

Complete with connection cable set, 0-4000 rpm, Ø 80 mm, with adapter ring for 100 mm diameter.
The signal for RPM measurement is supplied via terminal W from the alternator.
10-32V analog LCD tachometer with stepper motor technology, 4000 rpm, white LED illumination, and an orange hour meter.
Drilling template with 100.5 mm diameter, IP65 rated on the front.
Operating temperature -20°C to +90°C.
Programmable via two buttons on the back of the instrument.

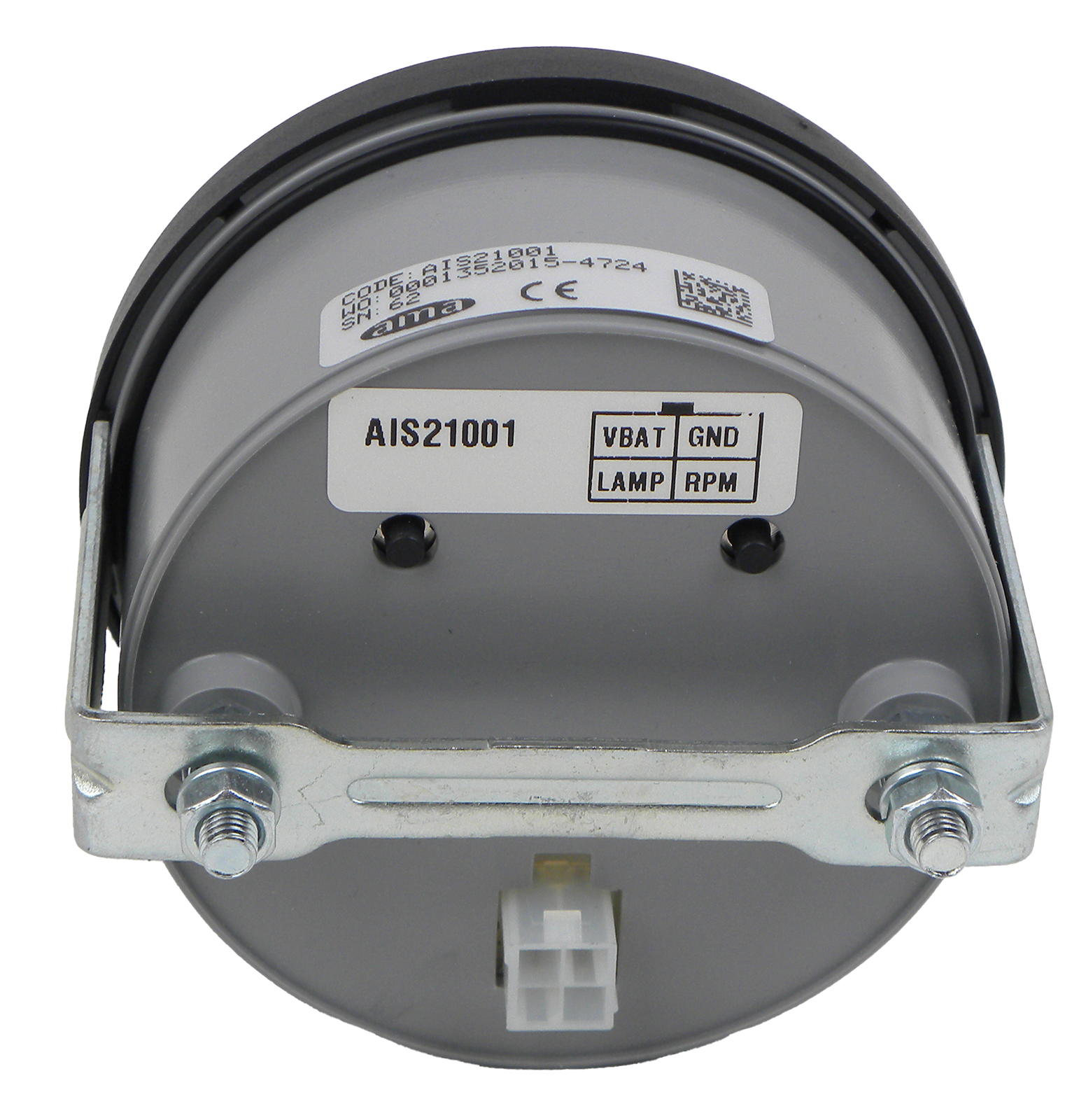

4-pin Molex Minifit Jr. connector.
90 cm connection cable included.
EMC: ISO 7637-2 ISO 2575
Technical specifications:
Rated voltage: 10-32 V
Display type: analog - digital
Width: 10 cm
Operating temperature: -20° / +85° C
Scale: 0-4000 RPM
Bore diameter: 100 mm
Downloads 1
bed_drehzahlmesser-60352
Hersteller
Ama S.p.a. Accessori Macchine Agrico
Via Puccini, 28
42018 San Martino in Rio
Via Puccini, 28
42018 San Martino in Rio
