Additional control unit for Massey Ferguson series 100 & 200 with 2 control slides including hose package
Additional control unit for Massey Ferguson series 100 & 200 with 2 control slides including hose package

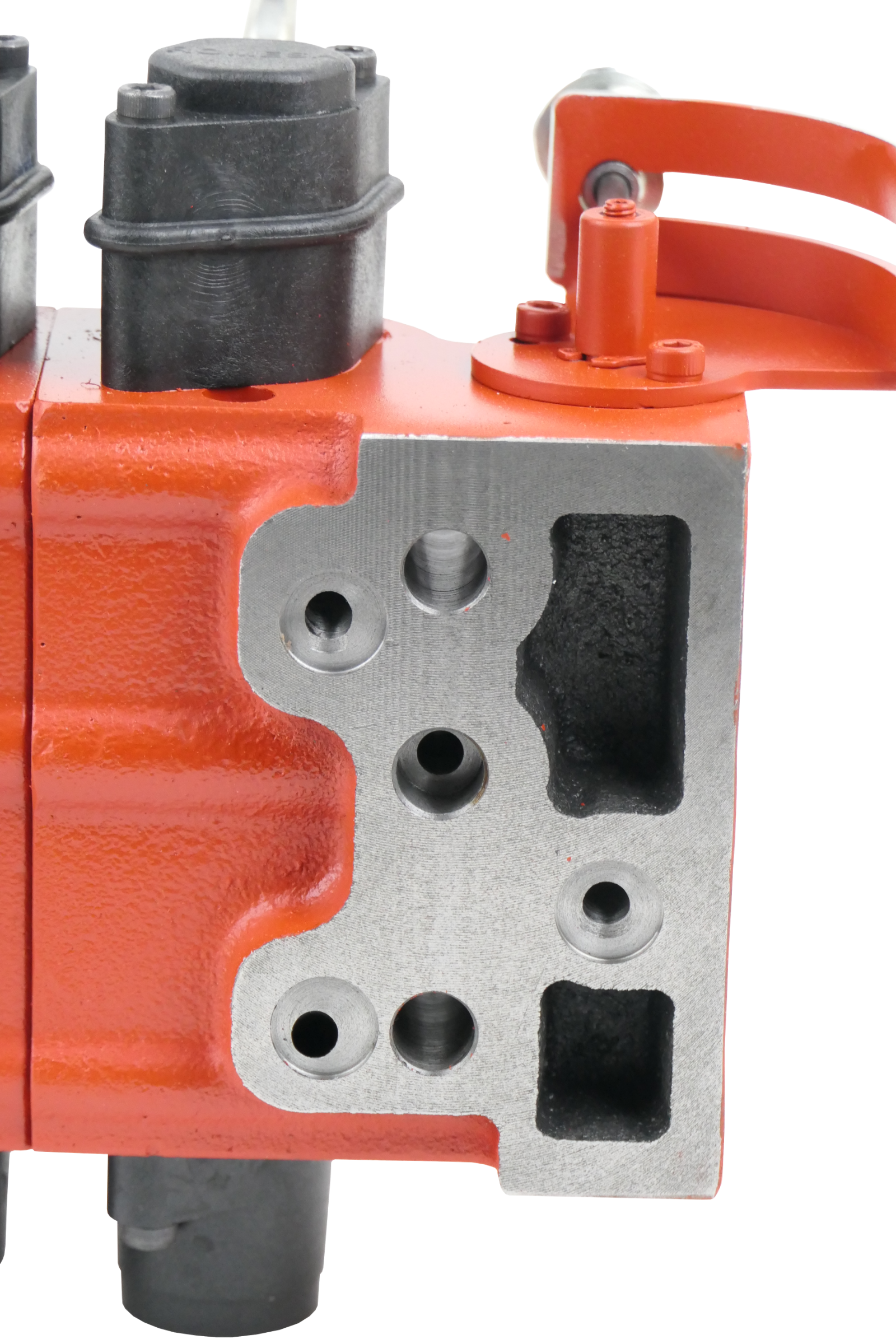

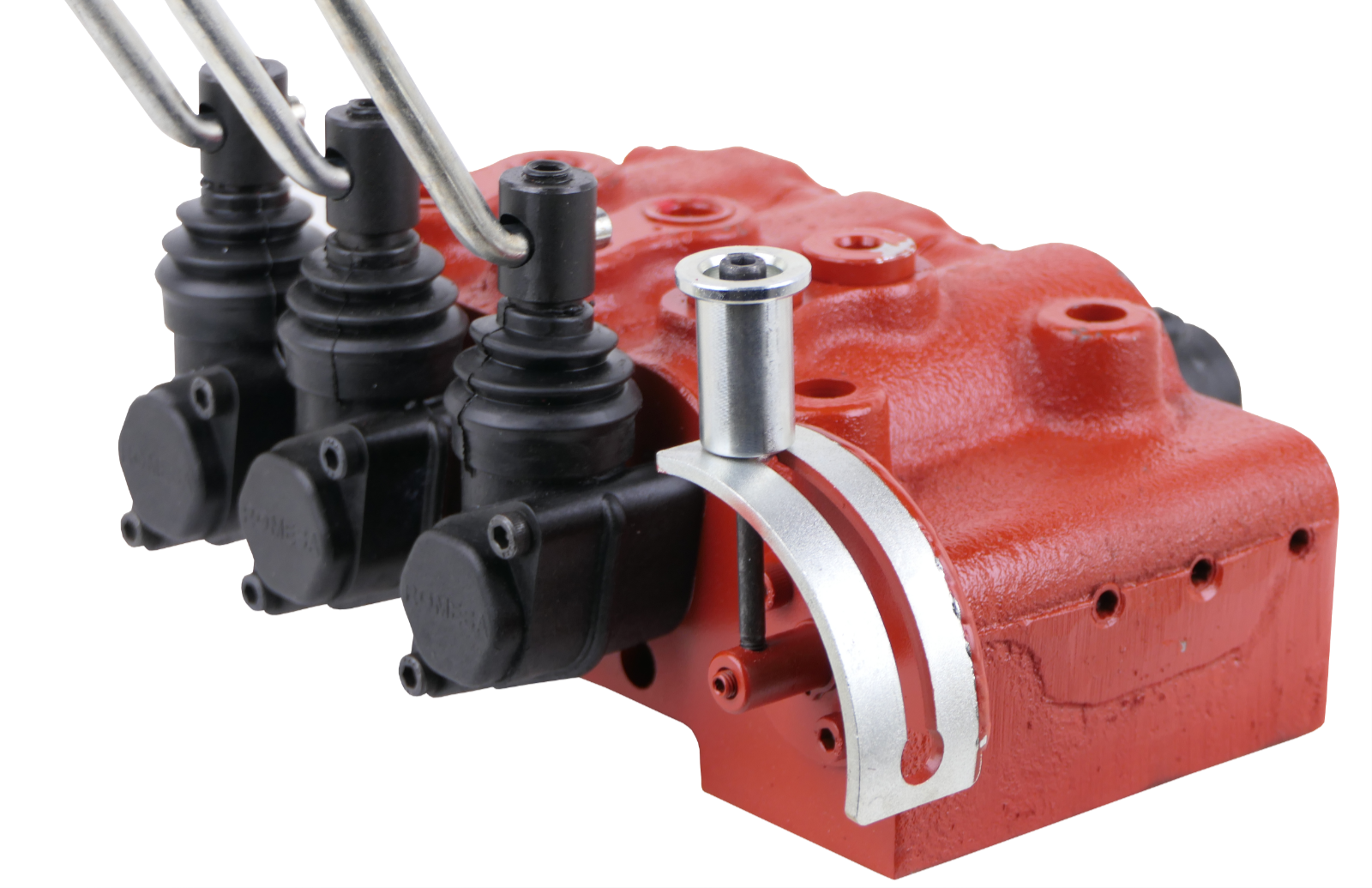

The version is a mobile control block with 2 additional control devices, a switching valve from the original hydraulics to the additional control device and an operating lever for the three-point hydraulics via the additional control device. Installation is carried out using a mounting plate on the hydraulic riser pipe. The two additional control devices can be used double-acting. The outer control spool can be switched from single-acting to double-acting.
The functions of the additional control valve are:
The scope of delivery includes:
The functions of the additional control valve are:
- Lever No. 1, Switching valve from original hydraulics to additional control unit
Lever up: normal tractor hydraulic
Lever down: work control valve - Lever No. 2, actuation of the three-point hydraulics without control hydraulics when switching to the additional control unit with lever No. 1, position down
- Lever No. 3, double-acting control device

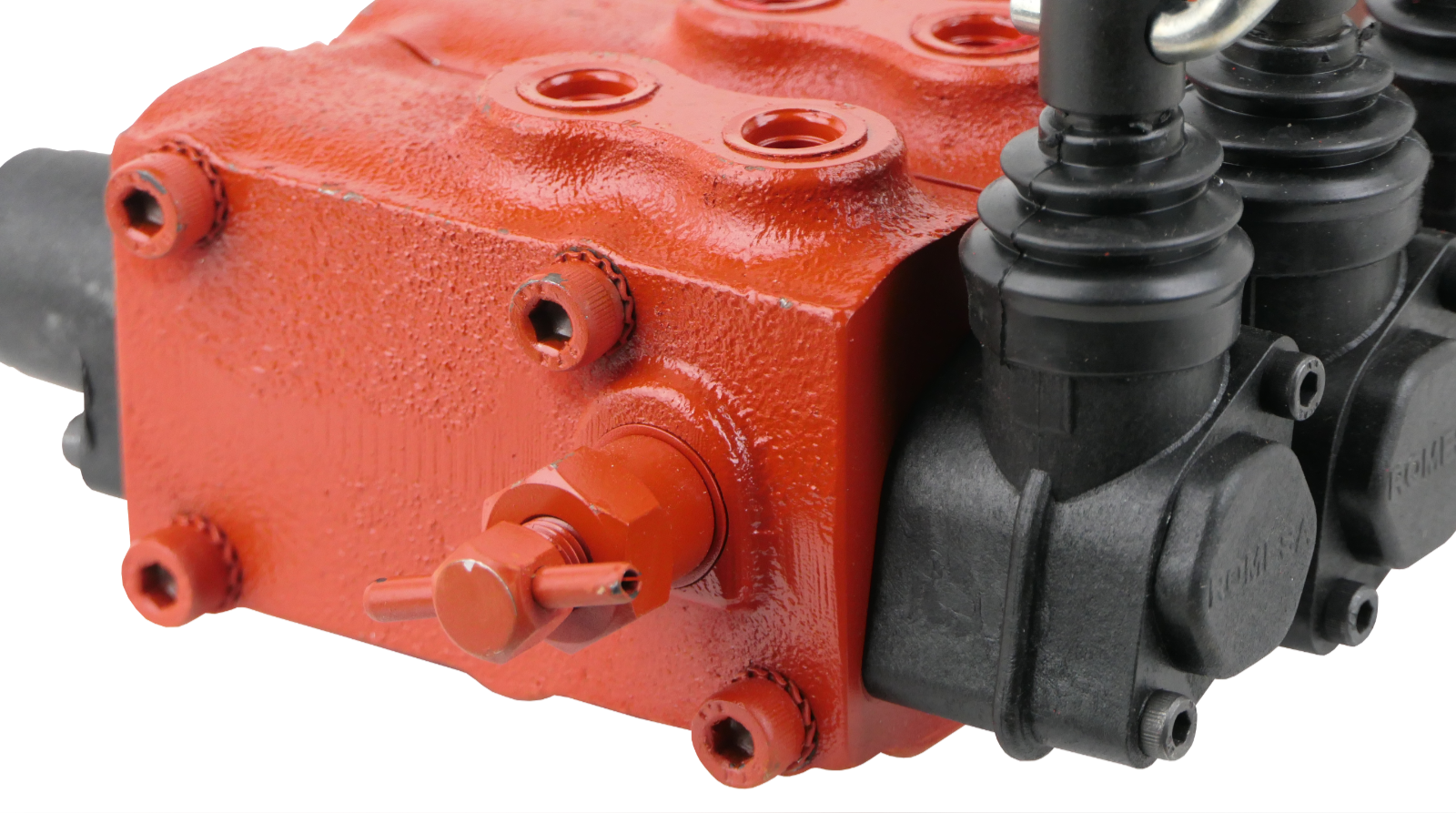

- Lever No. 4, double-acting control device can be switched to single-acting via the changeover tap on the side of the end plate. If the changeover tap is screwed onto the seat, the control slide can be used double-acting. If the changeover cock is turned out to the stop, the function of the control slide is switched to single-acting.
The scope of delivery includes:
- The screws for attaching to the hydraulic block are included. ~

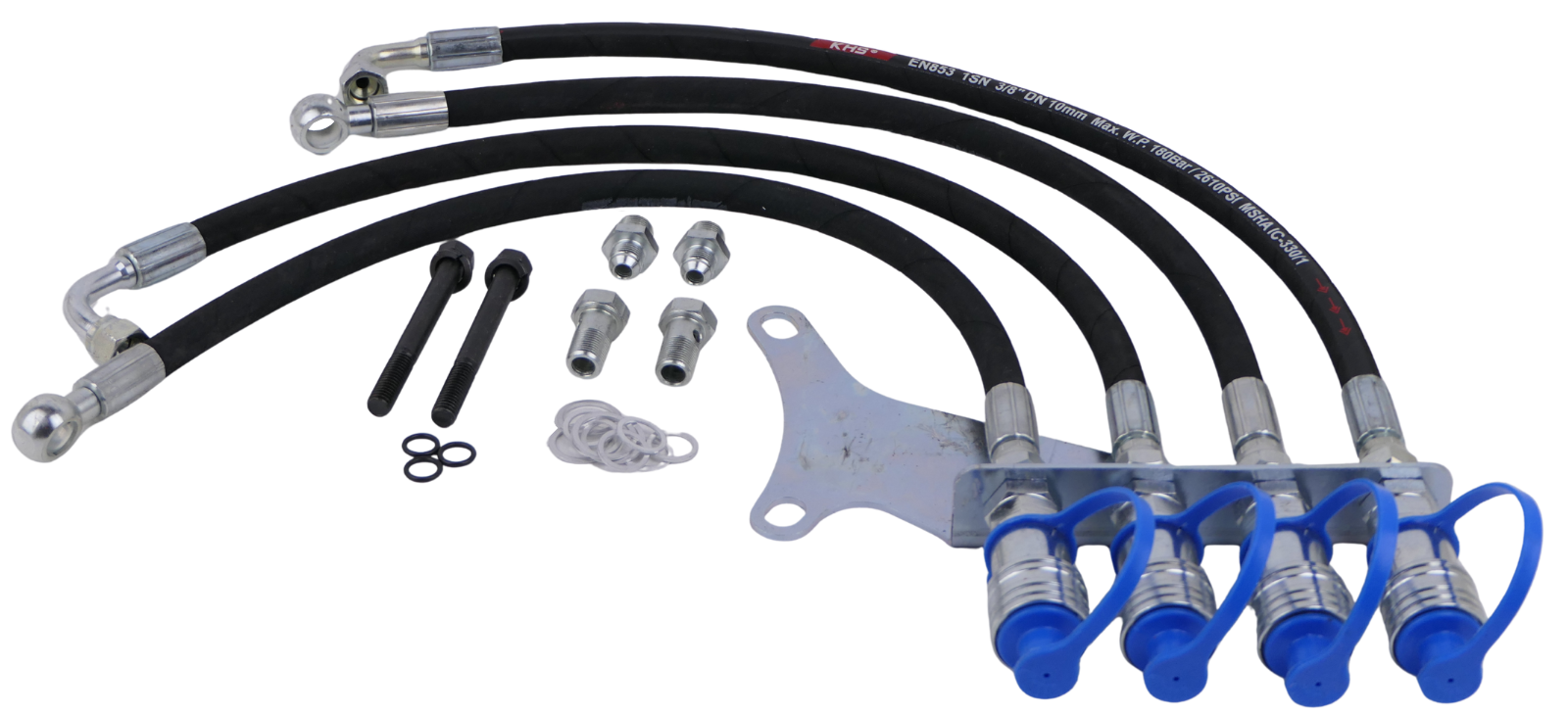

- There is also a hose package with 4 hydraulic hoses and matching hollow screws, ~
- 4 pieces of clutch sleeves with dust protection and
- a holder for the clutch sleeves for attaching to the differential housing included. ~
| passend zu Massey Ferguson: | 20, 30, 40, 50, 130, 133, 135, 135 V, 148, 152, 155 , 158 , 165, 168 , 175, 177, 178 , 185 , 188, 202, 203, 204, 205, 230, 235, 240, 245, 250, 260, 265, 275, 285, 290, 298, 765, 2135, 2203, 2205, 3165 |
|---|---|
| passend zu Serie Massey Ferguson: | 35, 65, 100, 200, Industrial |
Downloads
There are no downloads available for this article
Hersteller
Faie Handelsgesmbh
Handelsstraße 9
4844 Regau
Handelsstraße 9
4844 Regau
Bewertungen
Login
2 December 2 00:00
Dieses Steuergerät ist voll zu meiner Zufriedenheit. Die Wurmschrauben bei den Hebel kann man rausschrauben und gerade einschrauben ist mehr platz die Hebel abschneiden Kunststoff entfernen mit den Gewinde reinschrauben länge anpassen.
Ich bin voll zufrieden .Es könnte eine Beschreibung dabei sein.
