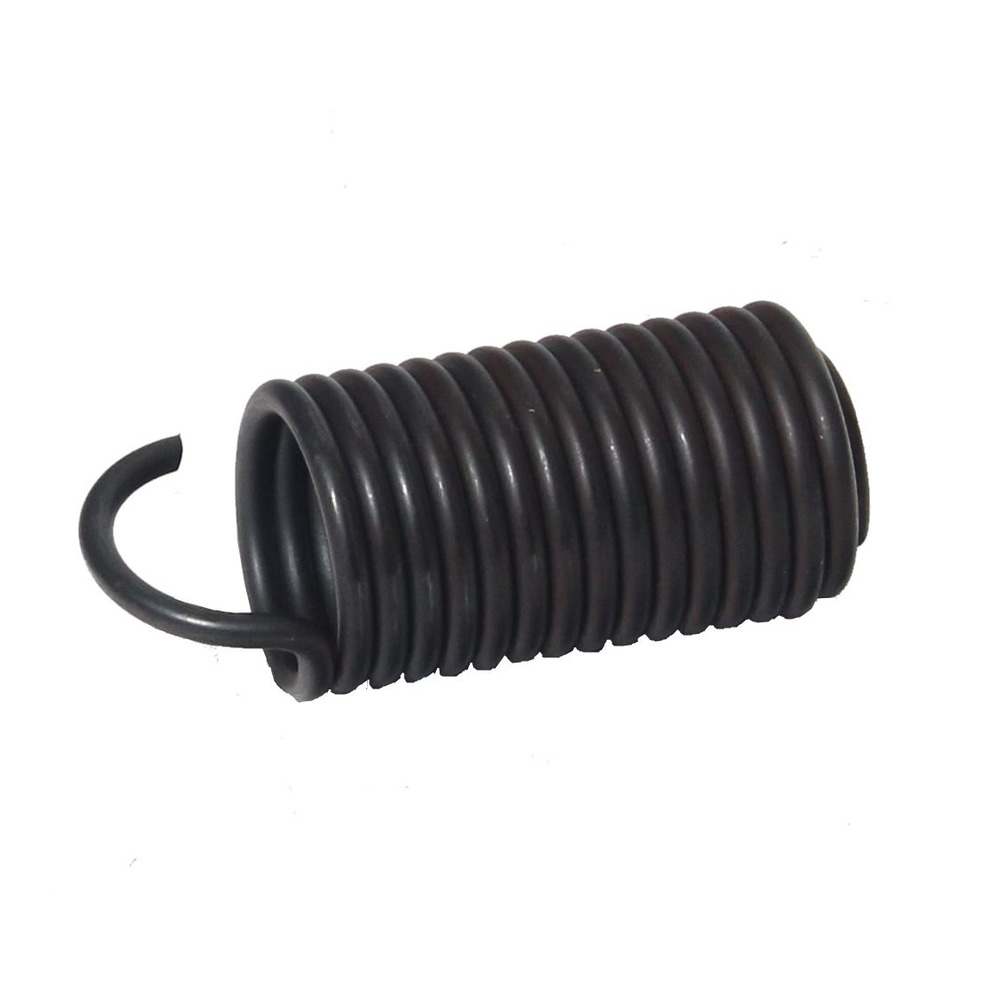

Control spring for injection pump for Steyr T80, T84, T86Item no. 40

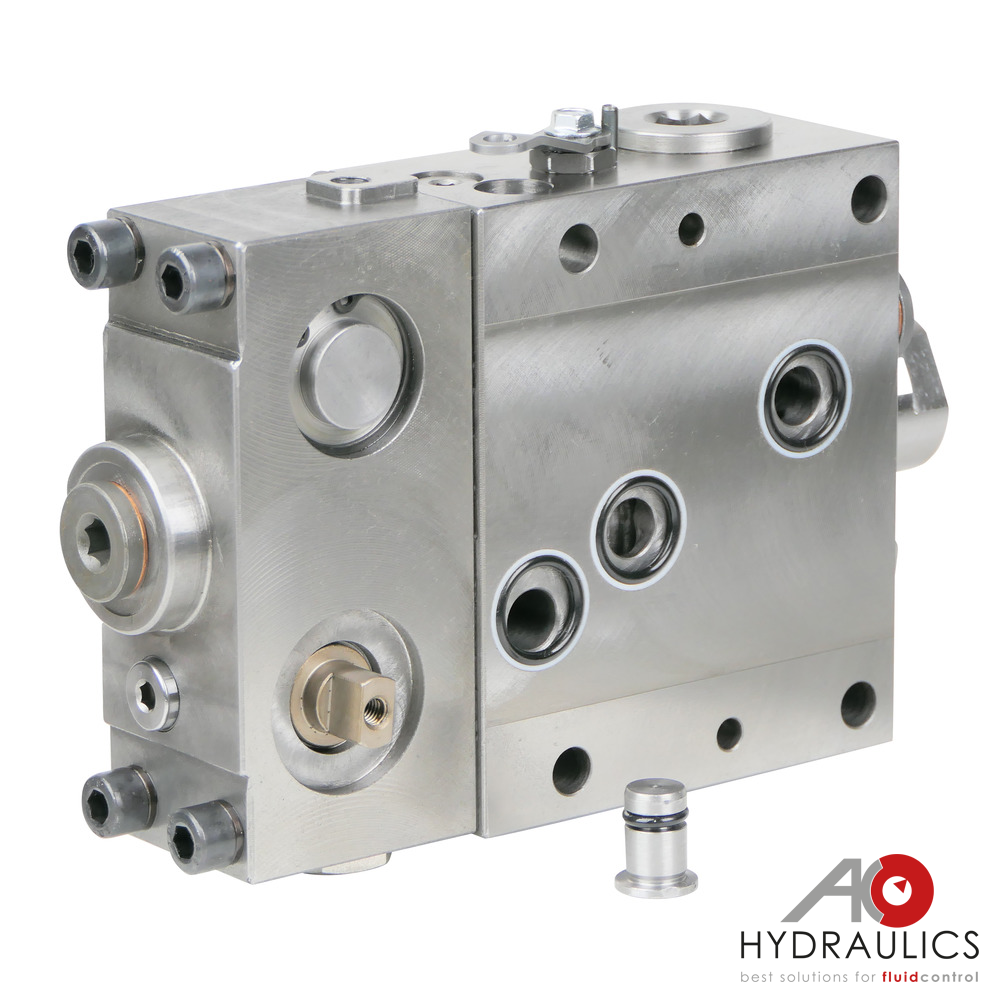

This main control unit is used in the tractor to control and regulate the hitch. With the control valve, attachments attached to the hoist can be raised and lowered continuously. The position control keeps a position preselected on the control lever (height of the attachment) constant. The traction control allows optimal use of the tractor's performance. Depending on the type of application, the control valve can also be used for mixed control of position and tension control. The control system constantly corrects disturbances automatically, making driving the tractor much easier.The control unit is equipped with a lowering throttle, with which the lowering speed of the hoist can be adjusted.There is an additional connection for the return on the front of the switch cap .Not an original replacement part!

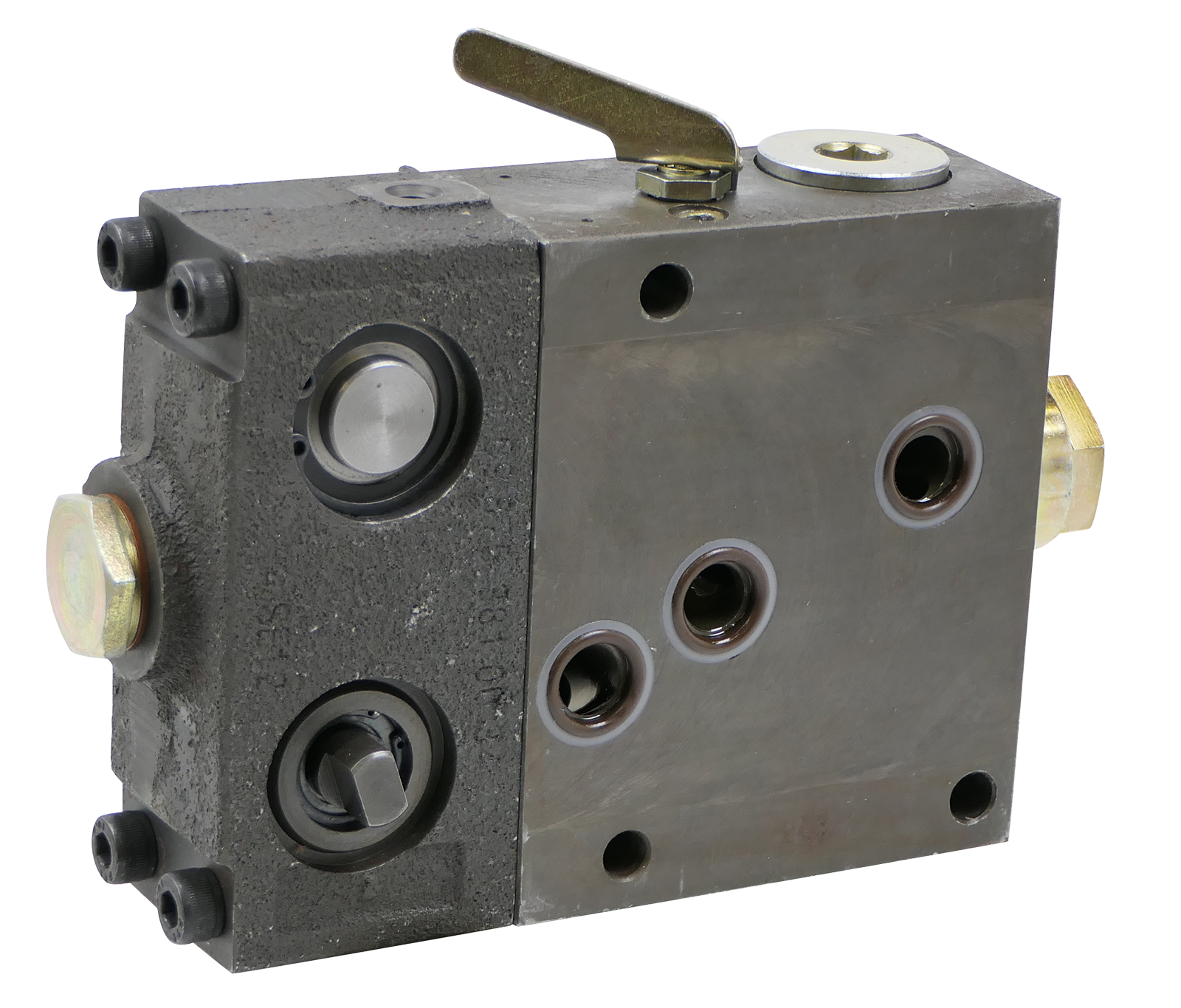

This main control unit is used in the tractor to control and regulate the hitch. With the control valve, attachments attached to the hoist can be raised and lowered continuously. The position control keeps a position (height of the attachment) preselected on the control lever constant. The traction control allows optimal use of the tractor's performance. Depending on the type of application, the control valve can also be used for mixed control of position and tension control. The control system constantly corrects disturbances automatically, making tractor driving much easier. The valve is very extensively equipped with additional connections for R and P, as well as continuous adjustment of P.The control unit is equipped with a lowering throttle, with which the lowering speed of the hoist can be adjusted.A sealing plug is included in the scope of delivery must be used in the valve if there are only 2 hydraulic connections on the hydraulic flange surface. The non-existent connection must be closed with the plug on the control valve. The sealing plug is held in its position by being flanged to the power lift.There is an additional connection for the return line at the front of the switch cap.Not an original replacement part!

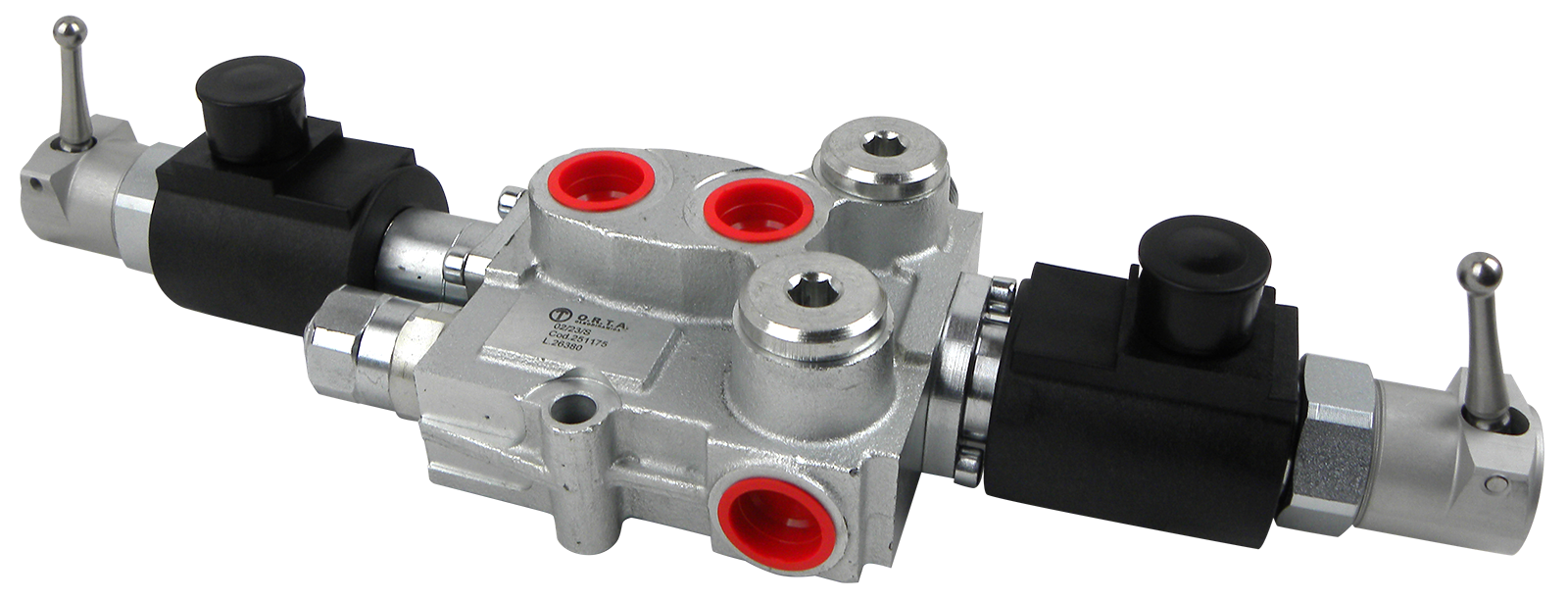

​Hydraulic control valve in monobloc design with electromagnetic 12 volt operation and manual emergency operation via hand lever. Standard radio valve for FAIE crane cable winches. The solenoid valve is double-acting and has a connection for pressure transfer,The connections to the working cylinders are locked in the zero position - no floating position in the O position!Technical data:12 V 3 AFlow rate max. 50 l/min.Operating pressure: max. 175 barConnections: 1/2 inch female thread inlet/outlet and consumer, 1/2 inch male thread for pressure transferControl valve with additional manual emergency operation.

​Electromagnetic actuation with spring return to the centre position = floating position. The centre position is designed with an unpressurised circulation and connections A, B are both open into the return flow. Pressure relief valve on connection P (pump). Negative overlap of the gate valves.Standard version of the valves in parallel connection.Version: DE50Max. flow rate: 50 litres/minOperating pressure: 250 barMax. pressure: 300 barPressure relief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8″Screw-in thread P, P2, T, T2: R1/2″H=lifting, 0=centre position = SW = floating position, S=lowering.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE50Flow max.: 50L/min Operating pressure: 250 barmax. Pressure: 300 barRelief pressure valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8?Screw-in thread P, P2, T, T2: R1/2?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE50Flow max.: 50L/min Operating pressure: 250 barmax. Pressure: 300 barRelief pressure valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8?Screw-in thread P, P2, T, T2: R1/2?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE50Flow max.: 50L/min Operating pressure: 250 barmax. Pressure: 300 barRelief pressure valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8?Screw-in thread P, P2, T, T2: R1/2?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE50Flow max.: 50L/min Operating pressure: 250 barmax. Pressure: 300 barRelief pressure valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8?Screw-in thread P, P2, T, T2: R1/2?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE50Flow max.: 50L/min Operating pressure: 250 barmax. Pressure: 300 barRelief pressure valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B: R3/8?Screw-in thread P, P2, T, T2: R1/2?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

Electromagnetic actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Version: DE85 Flow max.: 80L/min Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 100-250 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4?H=Raise, 0=Middle position, S=Lower.The switching positions listed depend on the respective model of the control valve.

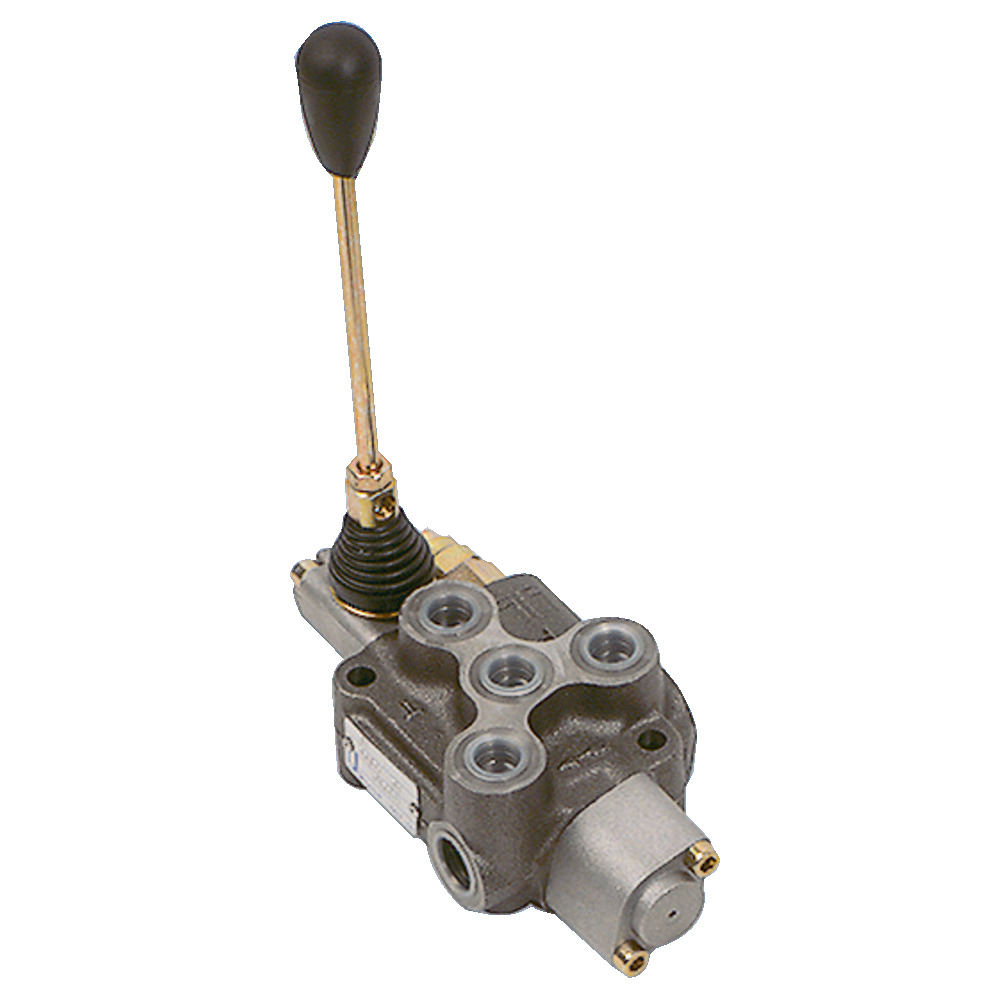

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection.Design: BM100Flow rate max.: 100 L/min. Operating pressure: 250 bar max. Pressure: 320 barRelief valve set: 200 bar, adjustable from 150-300 barScrew-in thread A, B, P, T,: R3/4"Screw-in thread P2, T2: R3/4"H=raise basic position, 0=middle position, S=lower, ELG=rapid traverse.The switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Flow max.: 100 L/min. Operating pressure: 250 bar max. Pressure: 320 barRelief valve set: 200 bar, adjustable from 150-300 barScrew-in thread A, B, P, T,: R3/4"~Screw-in thread P2, T2: R3/4"~H=Raise, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard version of the valves in parallel connection. Flow max.: 100 L/min. Operating pressure: 250 bar max. Pressure: 320 barRelief valve set: 200 bar, adjustable from 150-300 barScrew-in thread A, B, P, T,: R3/4"~Screw-in thread P2, T2: R3/4"~H=Raise, 0=Middle position, S=Lowering, SW=Floating position, ELG=Rapid traverse, R=with detent.The switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and the ports A &~ B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard design of the valves in parallel connection.Flow max.: 45 L/min.Operating pressure: 250 barmax. Pressure: 320 barRelief valve set: 140 bar, adjustable from 100-250 barScrew-in thread A, B, P, T,: R3/8?Screw-in thread P2, T2: R1/2?H=Raise, 0=Middle position, S=LoweringThe switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard design of the valves in parallel connection.Flow max.: 45 L/min.Operating pressure: 250 barmax. Pressure: 320 barRelief valve set: 140 bar, adjustable from 100-250 barScrew-in thread A, B, P, T,: R3/8?Screw-in thread P2, T2: R1/2?H=Raise, 0=Middle position, S=Lowering, SW-R=Floating position locked.The switching positions listed depend on the respective model of the control valve.
