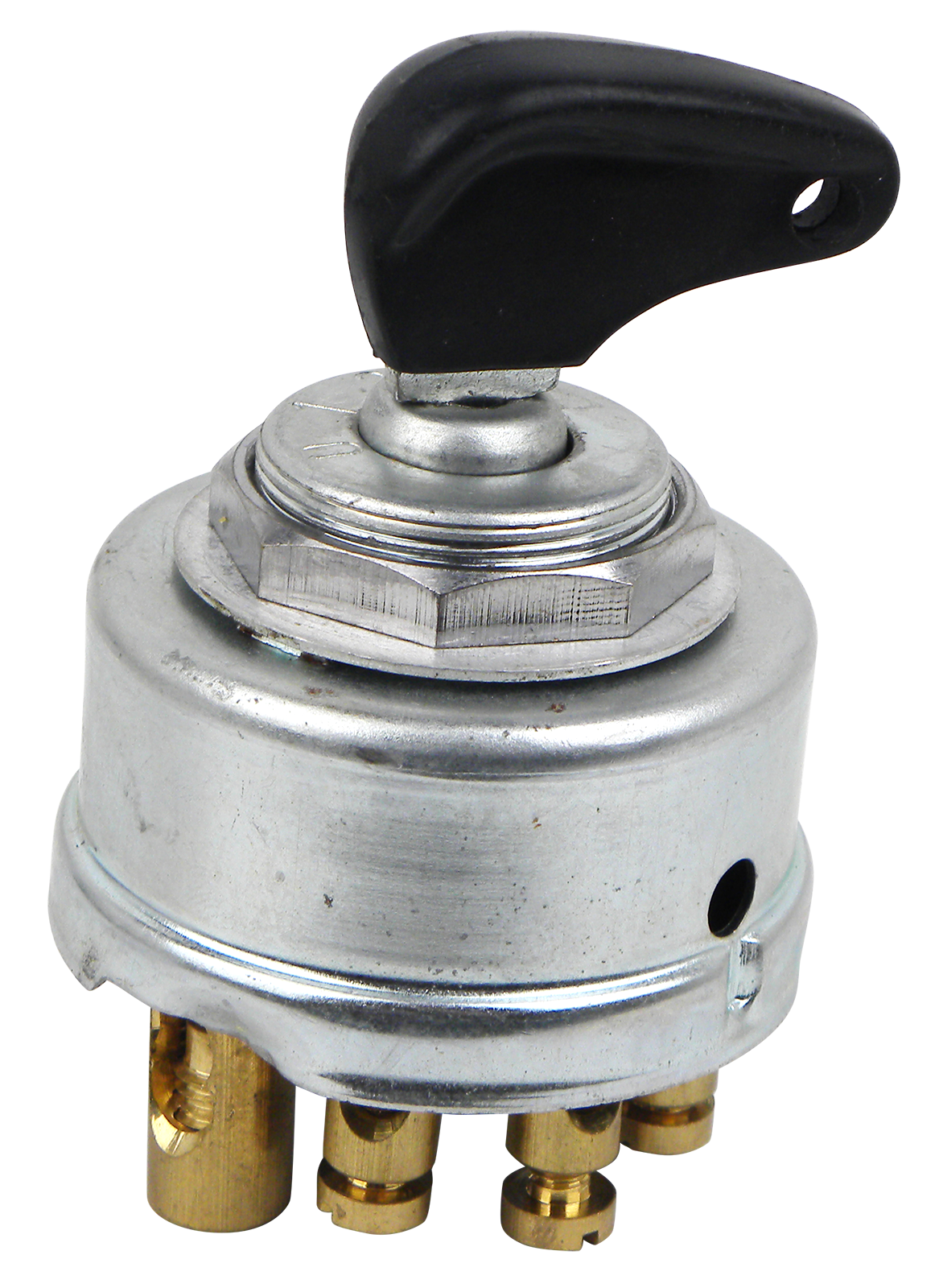

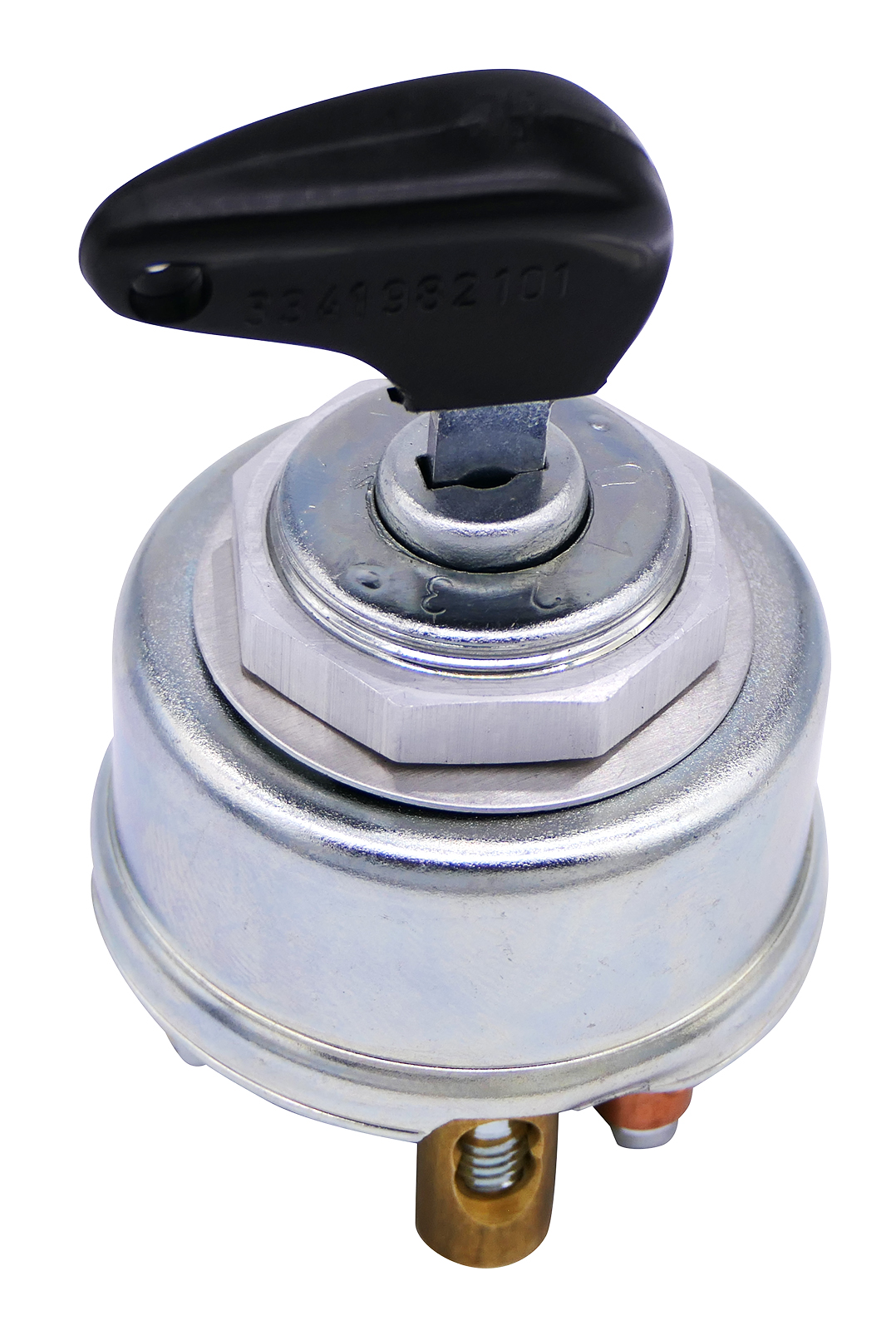

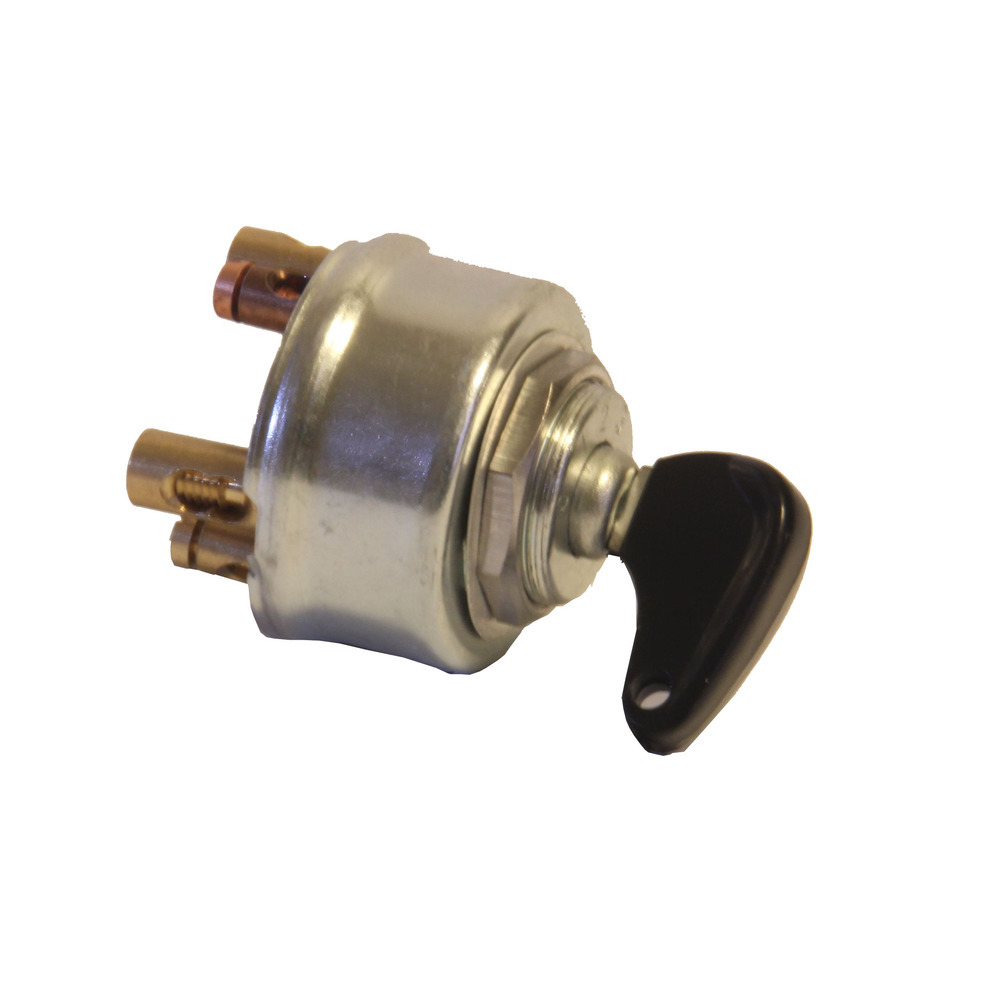

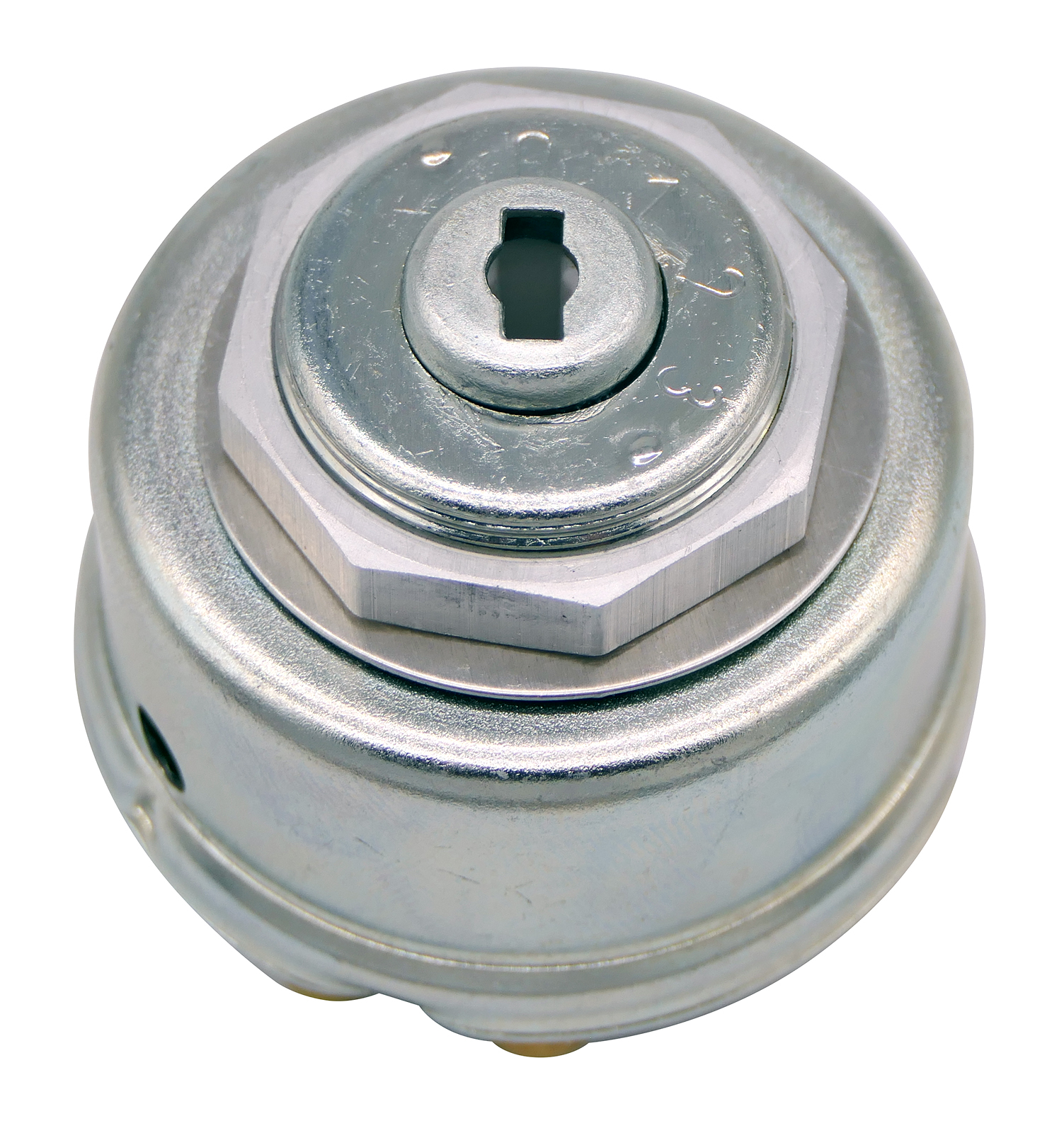

Ignition light switch for screwing
Product number:
25303
€55.00 *
Only a few in stock (Delivery time: 1-3 working days)
Beschreibung
Product information "Ignition light switch for screwing"
Version: for screwing
12 V / 24 V, nut M26 x 1 26.5 mm with recess 33.5 mm x 7.5 mm (twist-proof) for wall thickness up to 2 mm.

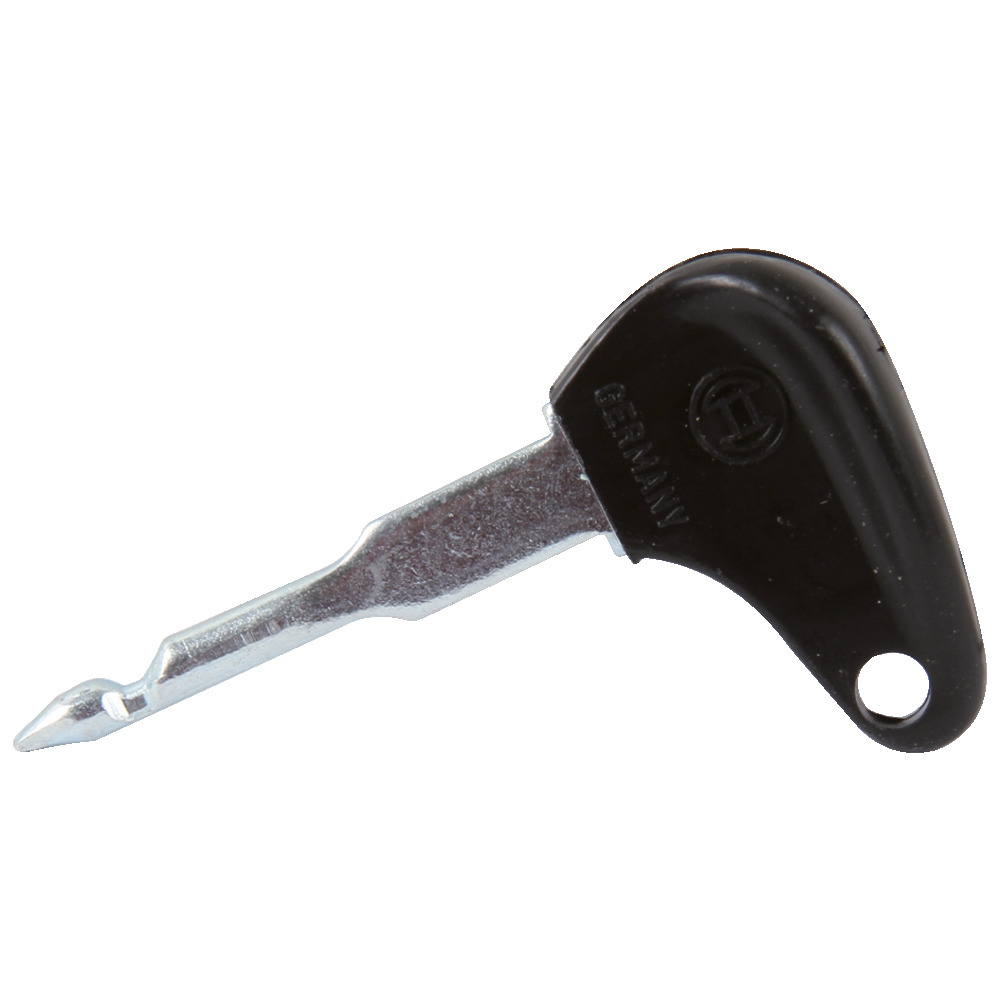

Key can be removed in any position
250 W (terminal 15), 100 W (terminal 56a, 56b), 150 W (terminal 58).
Switch positions:
0 = Off 01 = Ignition on 1 = Marker light 2 = Low beam 3 = High beam.

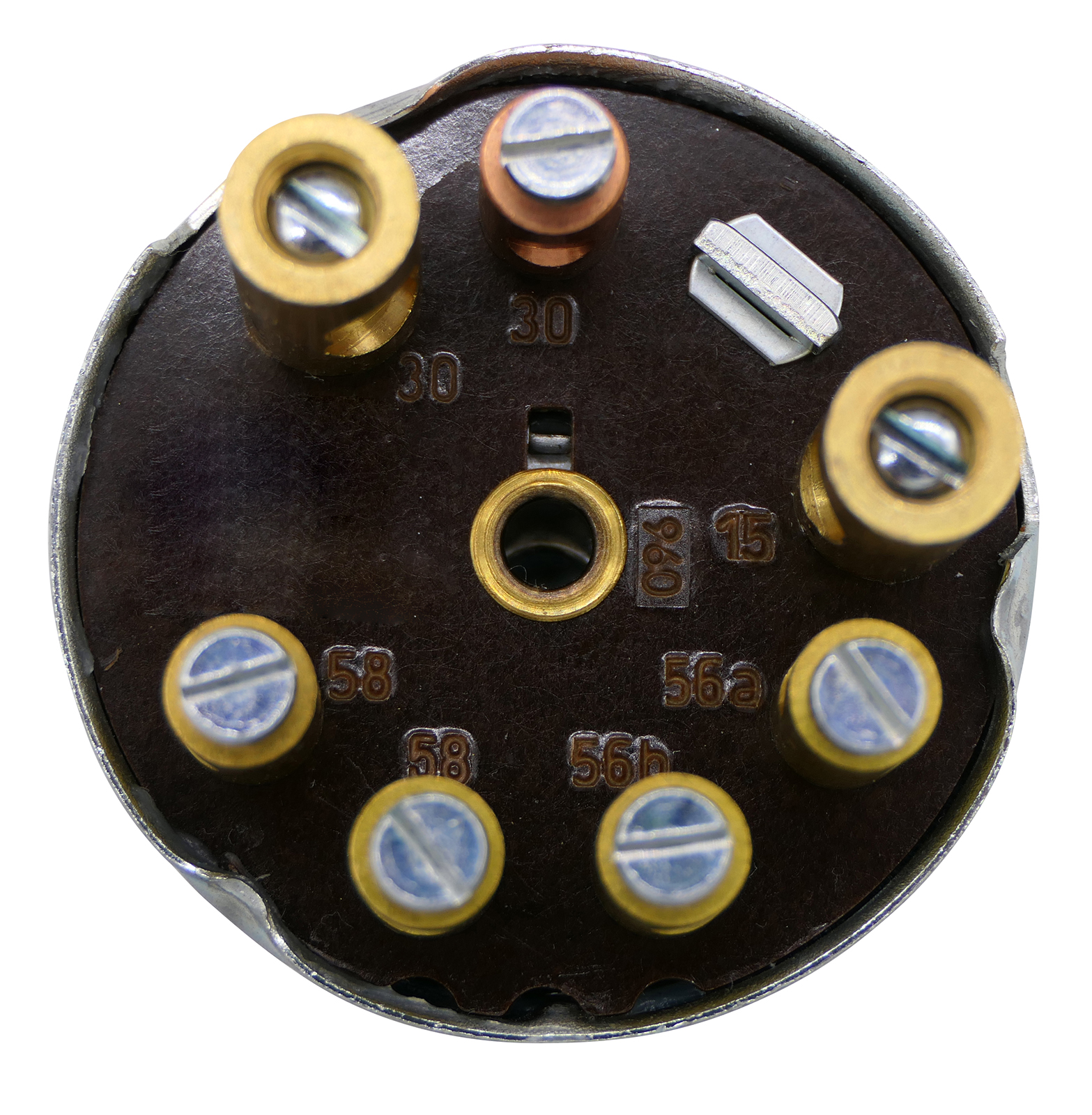

with screw terminals 15, 30, 30, 56a, 56b, 58, 58~
Housing 48 mm
12 V / 24 V, nut M26 x 1 26.5 mm with recess 33.5 mm x 7.5 mm (twist-proof) for wall thickness up to 2 mm.
Key can be removed in any position
250 W (terminal 15), 100 W (terminal 56a, 56b), 150 W (terminal 58).
Switch positions:
0 = Off 01 = Ignition on 1 = Marker light 2 = Low beam 3 = High beam.
with screw terminals 15, 30, 30, 56a, 56b, 58, 58~
Housing 48 mm
| passend zu Case: | D212, D214, D215, D217, D219, D320, D322, D324, D326, D430, D432, D436, D439, D440, DED3, DGD4 |
|---|---|
| passend zu Serie Case: | D |
| passend zu Serie Steyr: | Baureihe 13 |
| passend zu Steyr: | T80, T84, T86, T180, T182, T188, T190, T288, T290 |
| verwendbar anstatt Bosch: | 0342201009, 0342889101 |
| verwendbar anstatt Case: | 717638R91 |
| verwendbar anstatt Steyr: | 1288580046 |
