Agricultural machinery

With 3 contacts.

70x70 mm, 2 holes for fastening, hole spacing 45 mm, suitable for e.g. Deutz, ...

For mounting at the front, base plate made of plastic, snap fastening, 2 holes M5, 45 mm hole spacing.LxWxH: 95x90x54 mm

82 mm, 2 screws M5, screw spacing 45 mm, base plate metal.

With indicator light, installation opening 26 mm.

Connector width: 6.3 x 0.8 mmConductor cross section: 1.5 - 2.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Electric current: 15 AMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

Connector width: 6.3 x 0.8 mmConductor cross section: 0.5 - 1.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

Lightweight, highly resilient PVC flat hose with polyester thread reinforcement. Resistant to expansion. Application in agriculture, irrigation systems, construction industry, mining, etc.Price per m.

For welding to hydraulic cylinders for a rigid connection with bolts or screws. With centering hole for a 4mm diameter roll pin so that the attachment can be attached exactly in the longitudinal axis of the cylinder.

Connector width: 6.3 x 0.8 mmConductor cross section: 1.5 - 2.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

Connector width: 6.3 x 0.8 mmConductor cross section: 0.5 - 1.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

100 piece pack

Plug, according to DIN 2353 and ISO 16028, light series.

According to DIN 2353, ISO 8434-1-L, ISO 16028

According to DIN 2353, ISO 8434-1-L, ISO 16028

Plug, according to DIN 2353 and ISO 16028.

Sleeve, according to DIN 2353 and ISO 16028.

The PLT4 series flat-face push-fit coupling sockets are standardised hydraulic push-fit coupling components manufactured in accordance with ISO standard 16028. The flat face enables leak-free and drip-free coupling and uncoupling of hydraulic lines. Thanks to full compliance with ISO standard 16028, the coupling is universally interchangeable with flat-sealing couplings from other leading manufacturers.Operating pressure: 350–500 bar, depending on sizeLeak-free: When uncoupled, the system remains sealed – no oil escapes and no air enters the systemSafety locking mechanism: The sliding sleeve features a safety locking system to prevent accidental disconnection; this is activated by turning the sleeve after couplingHousing made of high-strength galvanised steel, with Zn-Fe and Zn-Ni finishesStandard seals made of NBR

Sleeve, according to DIN 2353, light series.

12V, DC connection with 0.5 m cable, WxHxD: 44x66x28mm, incl. DC connector

12V, connection: grommet, WxHxD: 44x66x28mm

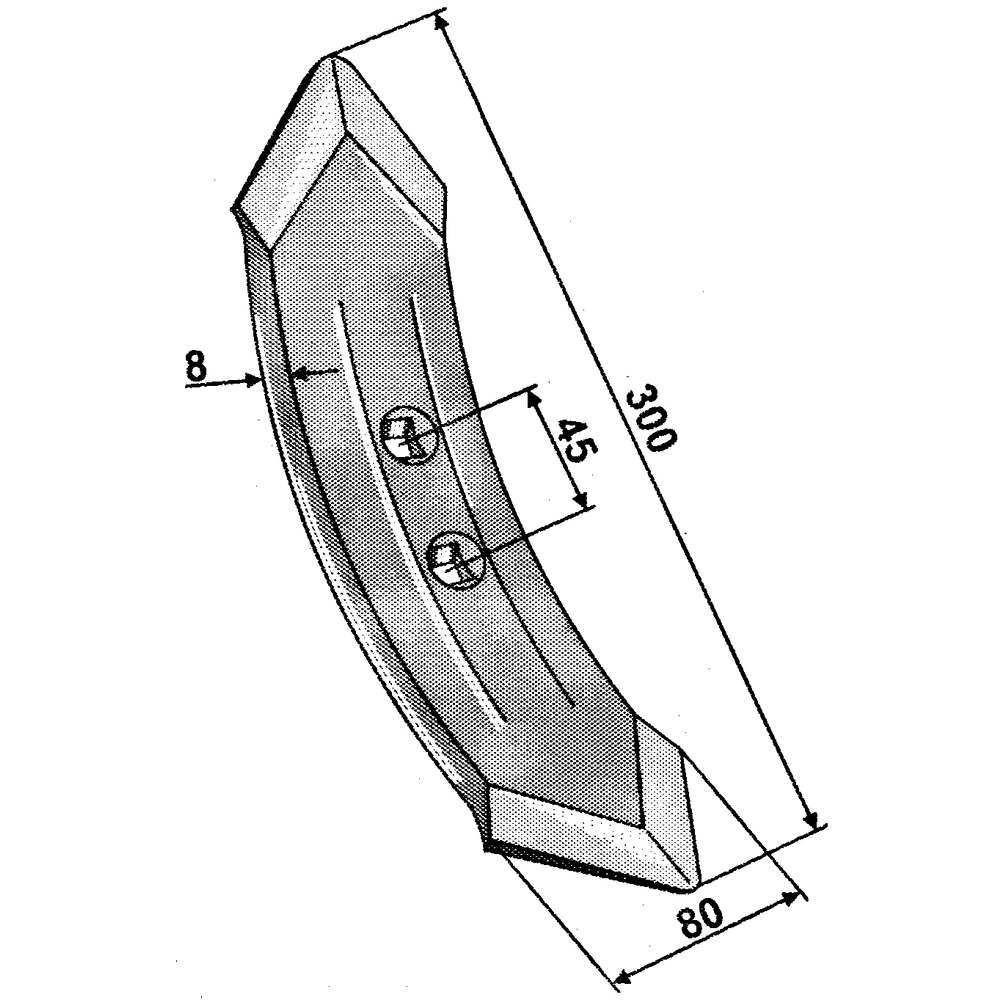

K32, 80x300x8mm

Floor mat suitable for SK2 cabins, can also be used with SK1 cabins only the holes for the accelerator pedal must be cut out!

From a pipeline with a large flow rate, a partial quantity can be withdrawn that is resilient and adjustable. For example, to supply two separate hydraulic circuits using a hydraulic pump. Port P has priority.Pressure relief valve adjustable from 10 to 250 bar.
