Agricultural machinery

Flange hole pattern 150x150 mm, for size 8" 180x180 mm3 inch = HK76, ball outside diameter D = 98 mm4 inch = HK108, ball outside diameter D = 145 mm5 inch = HK133, ball outside diameter D = 158 mm6 inch = HK159, ball outside diameter D = 180 mm8 inch = HK194, ball outside diameter D = 230 mm

Flange hole pattern 150x150 mm, for size 8" 180x180 mm3 inch = HK 76, cup width B = 98 mm3 1/2 inch = HK 89, cup width B = 120 mm4 inch = HK 108, cup width B = 145 mm5 inch = HK 133, cup width B = 160 mm6 inch = HK 159, cup width B = 180 mm8 inch = HK 194, cup width B = 230 mm

Galvanised version. Hole pattern flange connection: 150 x 150 mm, at 8" 180 x 180 mm

Flange coupling cup with lever lock ring and rubber ring. Galvanised version, socket length 150 mm.Hole pattern flange connection: 150 x 150 mm

8-hole to flange towing eye.

Flange plate with hole for connecting fittings and pipes. The surface of the flange plate is untreated and is therefore suitable for welding on various connecting parts. ~

120 mm, length 100 mm

120 mm, length 82 mm

120 mm, length 80 mm

8"~ x 200 mm, hole pattern 180x180 mm, tube inner 206 mm, tube outer 220 mm

4"~, 5"~, 6"~ x 150 mm, hole pattern 150x150 mm, tube inner 157 mm, tube outer 169 mm

The flange socket has a 4-hole square flange with a hole pattern of 150x150mm.

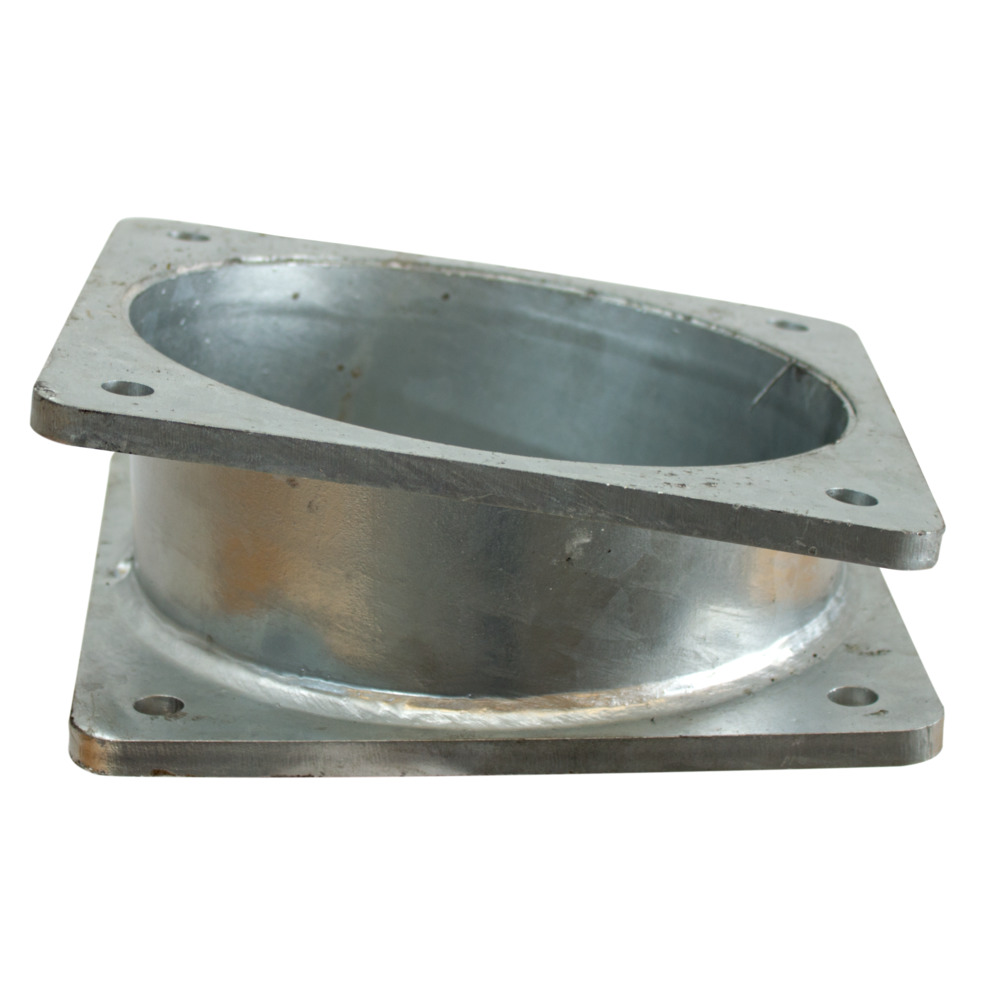

The flange socket with a 17 inclination is often used as an adapter between a quick coupler and the gate valve. The 17 inclination makes the quick coupler easier to use and the hose line easier to attach.

The flange socket has a 4-hole square flange with a hole pattern of 180x180mm.

DIN 11026, bore: D = 40 mm, support load: 2.5 to. up to 40 km/h.

With 3 contacts.

70x70 mm, 2 holes for fastening, hole spacing 45 mm, suitable for e.g. Deutz, ...

For mounting at the front, base plate made of plastic, snap fastening, 2 holes M5, 45 mm hole spacing.LxWxH: 95x90x54 mm

82 mm, 2 screws M5, screw spacing 45 mm, base plate metal.

With indicator light, installation opening 26 mm.

Connector width: 6.3 x 0.8 mmConductor cross section: 1.5 - 2.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Electric current: 15 AMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

Connector width: 6.3 x 0.8 mmConductor cross section: 0.5 - 1.5 mmMaterial: copperInsulation: PVCSurface: tin-platedMax. Operating temperature: 105 degrees CelsiusContents: 20 pieces

Lightweight, highly resilient PVC flat hose with polyester thread reinforcement. Resistant to expansion. Application in agriculture, irrigation systems, construction industry, mining, etc.Price per m.

For welding to hydraulic cylinders for a rigid connection with bolts or screws. With centering hole for a 4mm diameter roll pin so that the attachment can be attached exactly in the longitudinal axis of the cylinder.
