Agricultural machinery

with armrests, with back extension, high-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLongitudinal adjustment: 240mmBackrest adjustment: 0-15

with armrests, with back extension,horizontal suspension, high-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLength adjustment: 240mmBackrest adjustment: 0-15

3-pin Plug to 3-pin Double socketmax. 25A, cable length approx. 200mm

Bobcat adapter set with round tube 82.5mm, locking eye 36mm, hole spacing 569.5mm

For attaching wiper blades to the wiper arm

Adapter set with round tube 82.5mm, locking eye 35mm, hole spacing 352.3mm

from 13-pin. Socket to 7-pin Plug

from 7-pin. Socket to 13-pin Plug

Ideal for retrofitting vehicles without a remote thermometer, for installation in the radiator hose.External thread: M14x1.5mm ~Internal thread: M10x1mm ~

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The operating lever is included in delivery.

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The consumer connections A and B are located at the top and bottom of the housing. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The operating lever is included in delivery.Case-IHC: 844S, 846, 946, 1046, 1146, 1246, 743XL-856XL, 955XL-1055XL.Eicher:< /strong> King TigerFendt: 102, 103, 104, 105, 106, 108, 200S, 300, 304, 305, 306, 307, 308, 309, 310, 311, 312, 395GTA, 600, 610, 611, 612, 614, 615. Kramer: all models. Lindner: with Steyr transmission. MB-Trac: all models. Schlter: all models. Steyr: Anniversary series with control hydraulics, Plus series, Series 80.Switchable from single-acting to double-acting ~Hydraulic limit switch in lifting ~< br>Locked floating position as fourth switching position after lowering

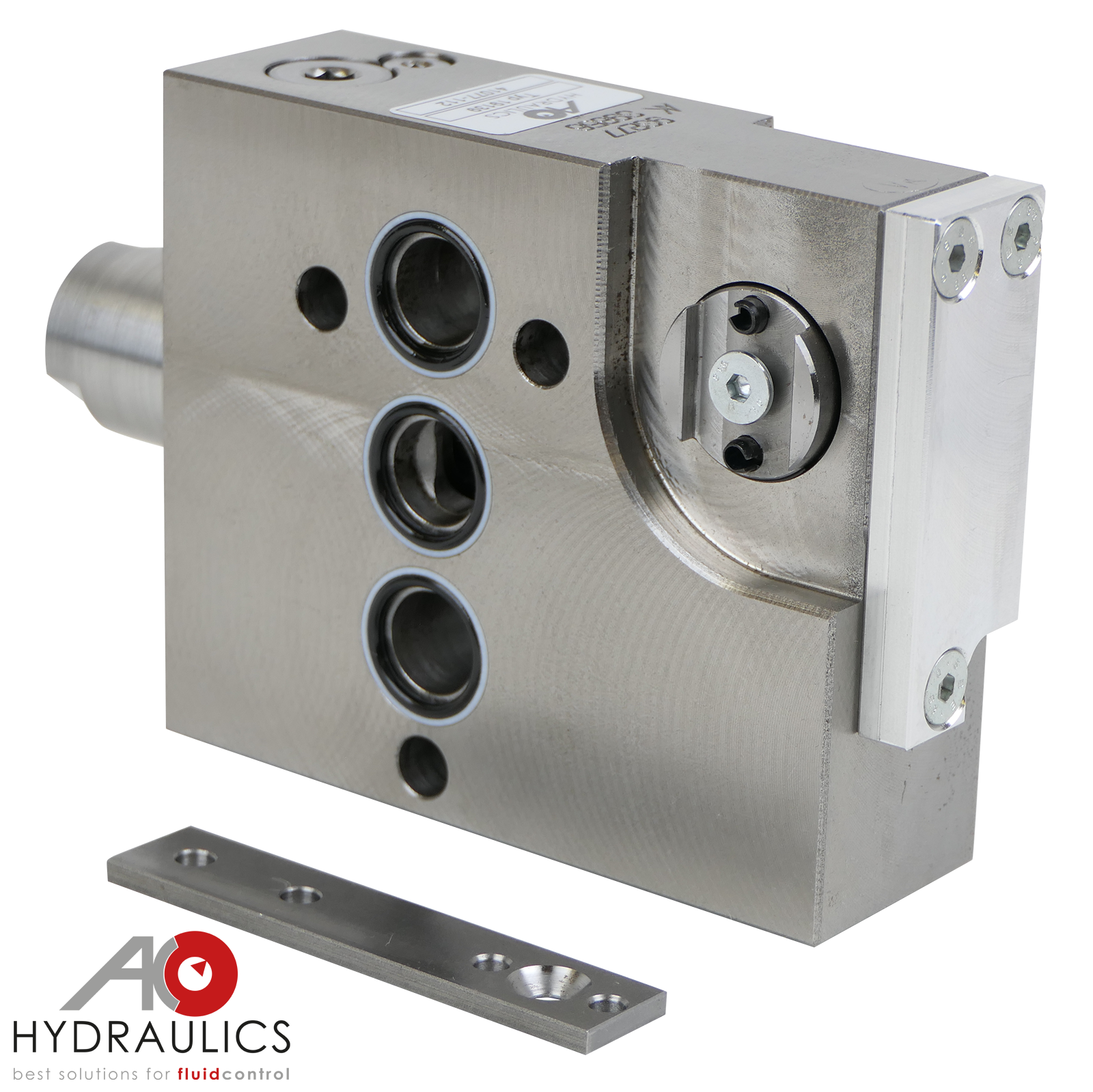

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The consumer connections A and B are located at the top and bottom of the housing. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The operating lever is included in the scope of delivery.Deutz: All types built up to 1984, DX85, DX90, DX110, DX120, DX145 until the switch to large glass doors.Connection thread:< /strong> M18x1.5mm internal thread ~Switchable from single-acting to double-acting ~Hydraulic limit switch in lifting ~Locked floating position as fourth switching position after lowering

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. It has slide-sealed cylinder ports A and B. This means that extremely low leakage is permitted at high loads. The consumer connections A and B are located at the top and bottom of the housing. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation.Deutz: 07C series, DX3.10-DX4.70, Agro Prima 4.31-6.17, Agro Xtra 3.57-6.07, Star Cab Series, DX90-145 with large glass door.Switchable from single-acting to double-acting ~Hydraulic limit switch in raising ~Locked floating position as fourth switching position after lowering

The version is a mobile control block with 2 additional control devices, a switching valve from the original hydraulics to the additional control device and an operating lever for the three-point hydraulics via the additional control device. Installation is carried out using a mounting plate on the hydraulic riser pipe. The two additional control devices can be used double-acting. The outer control spool can be switched from single-acting to double-acting.The functions of the additional control valve are:Lever No. 1, Switching valve from original hydraulics to additional control unit Lever up: normal tractor hydraulic Lever down: work control valveLever No. 2, actuation of the three-point hydraulics without control hydraulics when switching to the additional control unit with lever No. 1, position downLever No. 3, double-acting control deviceLever No. 4, double-acting control device can be switched to single-acting via the changeover tap on the side of the end plate. If the changeover tap is screwed onto the seat, the control slide can be used double-acting. If the changeover cock is turned out to the stop, the function of the control slide is switched to single-acting.The operating lever of the tractor hydraulics/power lift must be in the outer hydraulics position so that the function of the additional control unit is guaranteed. The scope of delivery includes:The screws for attaching to the hydraulic block are included. ~There is also a hose package with 4 hydraulic hoses and matching hollow screws, ~ 4 pieces of clutch sleeves with dust protection and a holder for the clutch sleeves for attaching to the differential housing included. ~

This control valve is a /4-way valve that is operated manually to control single-acting and double-acting cylinders as well as hydraulic motors. The control valve from AK- Regeltechnik was developed specifically for Fiatagri tractors with Kontak hydraulics. Due to the high liter output, up to 4 control valves can be flanged directly. Since the hole pattern is completely identical to Kontak/Parker, this valve can also be installed with original Kontak/Parker control valves. The valve is a four-position device. It can be converted from double-acting to single-acting and vice versa. The control valve is a slide-sealed valve that exhibits absolutely neutral fine control behavior and allows extremely low fit leakage even at higher pressures. The device has a locked safety limit switch in the LIFTING position. If you switch further via the LOWER position, you will reach a locked floating position. This can be returned to the NEUTRAL position manually at any time.

The additional control device is a 5/4-way valve, which is operated manually to control hydraulic consumers. It is a four-position control device that can be used for double and single-acting lifting cylinders. The device has a grid position in the lifting position, which is equipped with a hydraulic-automatic limit switch. If you switch further via the lowering position, the locked floating position is switched on, which is not unlocked hydraulically (consumer connections A and B connected to each other for the return). The floating position can be used as a locked lowering position for both double-acting and single-acting lifting cylinders. The additional control unit can be switched from double-acting to single-acting during operation. The valve can be mounted on the left or right using a freely positionable sealing plate. The sealing plate is included in delivery.Bosch: 0 521 609 001, 0 521 609 005, 0 521 609 009, 0 521 609 013, 0 521 609 015, 0 521 609 019, 0 521 609 021, 0 521 609 022, 0 521 609 053, 0 521 609 054, 0 521 609 062, 0 521 609 063, 0 521 609 064.0 521 609 074, 0 521 609 098. Case-IHC: 743XL-844XL, 585XL (BJ 87/88), 1055XL, 1255XL, 856XL, 956XL-1056XL, 1256XL(A)-1455XL(A), CS48-CS150, 3220, 4210, 4220, 4230, 4240. Deutz: Agro Star 4.61-6.81, Agro Tron 4.70-4.95, 6.00, 6.05, 6.15, 6.20, 6.30. Fastrac: 135, 155, 185, 525, 1115. JCB Fastrac: 130, 135, 150, 155, 185, 1115, 1135, 2115.Lindner: Geo Trac. Massey-Ferguson: 3000 series. Steyr: 900, 9000 series. Valmet: 6000, 6200 , 6300, 6400, 8000, 8100, 8200, 8300, 8400. Zetor: 3320-3341, 4320-4340, 5320-5341, 6320-6341, 7320-7540, 8520-18345 . ~Switchable from single-acting to double-acting ~Hydraulic limit switch in lifting ~Locked floating position as fourth switching position after lowering

For vehicles that are only approved for certain roads (routes) in accordance with Section 39 Para A circular yellow plate with a diameter of at least 20 cm, a black border and the Latin letter R in permanently legible and erasable black writing must be clearly visible on each of the towing vehicle and the license plate attached to the rear of the last trailer. These boards make it possible to identify vehicles with restricted registration in accordance with Section 39 Paragraph 1 KFG, which makes it easier to monitor compliance with the prescribed route.

Suitable for Bucher M500, M550, Record

Suitable for type RM58, 158, 110, 111, 111S, 112, 131.

Suitable for type 110, 111, 111S, 112, 112K, 115, 131 from 1976.

Adjusting screw with thread M16x1.5 for cutter head with serrated holder for Aebi, BCS and Reform.
