The valve is designed as a 3/2-way changeover valve. In the neutral position, connection P is connected to connection A~ when energized, connection P is connected to connection B. The control magnet can be supplied for different operating voltages. Small internal leaks are permitted because the valve is designed as a slide valve. A magnetic plug (FAIE No. 28483) can optionally be supplied. The valve can be used in all common hydraulic systems. Technical data: max. operating pressure: 250 bar max. return pressure: 10 bar< br> Nominal flow: 40 l/min Tightening torque: 78 Nm Coverage: positive Connections: G3/8 Weight: 2.46 kg Dimensions: 162.5x46x65 mm Operating fluid: Hydraulic oil according to DIN 51524 Viscosity: 10-200 Operating temperature: -20 to +80C

Can be used as an electromagnetic 3-way tap. Basic position de-energized - continuity from P to B. Switched position - continuity from P to A. 100% duty cycle.

with screw connections

to fixed part with lever

​The manually operated 4/3-way valve INV has the function of a hydraulic control valve. The changeover valve can be used to control a double-acting hydraulic consumer such as a double-acting hydraulic cylinder. The 4/3-way valve enables the oil flow to be switched from port A to port B.In the centre position, all connections are closed. In this switching position, the flow through the valve is blocked.

to fixed part with lever

6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Basic position without current - continuity P1/P2 to C/D. Switched position - continuity P1/P2 to A/B. Duty cycle 100%. With leak oil connection R1/4",directional valve 8/3, double flanged, galvanized.

6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Basic position without current - continuity P1/P2 to C/D. Switched position - continuity P1/P2 to A/B. Duty cycle 100%. With leak oil connection R1/4",directional valve 8/3, double flanged, galvanized.The specified operating pressure refers to operation without a connected leak oil line!

e.g. for front loaders to operate the front loader bucket and to open and close the silo bale gripper via 1 control valve. 6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Flow 50 L/min, voltage 12 V, connections R1/2", operating pressure 250 bar. With leak oil line.The specified operating pressure refers to operation without a connected leak oil line!

e.g. for front loaders to operate the front loader bucket and to open and close the silo bale gripper via 1 control valve. 6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Flow 50 L/min, voltage 24 V, connections R1/2".The specified operating pressure refers to operation without a connected leak oil line!

6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Basic position without current - continuity from P1/P2 to C/D. Switched position - continuity from P1/P2 to A/B. 100% duty cycle. With leak oil connection R 1/4"The specified operating pressure refers to operation without a connected leak oil line!

e.g. for front loaders to operate the front loader bucket and to open and close the silo bale gripper via 1 control valve. 6/2-way changeover valves are suitable for tractors and tractors, attachments, telehandlers, excavators, backhoe loaders, wheel loaders and many other machines. Switching valves are used to switch a double function through electrical control. The application takes place between a hydraulic control block and two different hydraulic functions or hydraulic consumers. Flow 50 L/min, voltage 12 V, connections R3/8".The specified operating pressure refers to operation without a connected leak oil line!

The 6/2-way valve is suitable for expanding a double-acting hydraulic function. e.g. for front loaders to operate the front loader bucket and to open and close the silo bale gripper via 1 control valve. Without current, the oil flows from ports P1 and P2 to ports C and D. If the magnet is energized, the oil flow is diverted from ports P1 and P2 to the additional consumers A and B. This valve can be used as a universal valve and can can be expanded directly with the same valve. Small internal leaks are permitted because the valve is designed as a slide valve.

​The manually operated 6/2-way changeover valve DEV has the function of a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied by the upstream control unit, which retains all control functions.In the centre position, all connections are closed.

​The hand-operated 6/2-way switching valve DEV functions as a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied with power from the upstream control unit, where all control functions are retained.In the centre position, all connections are closed.

The hand-operated 6/2-way switching valve DEV functions as a hydraulic switch. This function allows several double-acting consumers to be connected and operated with a time delay. The consumers are supplied with power from the upstream control unit, where all control functions are retained.In the centre position, connections P, A and B are connected. The connections P1, A1 and B1 are also connected.

With plug contacts for the Fendt plug (wiring harness) Can be used instead of Fendt: G716900070010 Standards: ISO 1724 - Type N Voltage: 12 V Housing material: Reinforced plastic Number of poles: 7 Contact connection: Plug contact 2.1 mm Protection class: IP44

With lid, especially for Steyr Plus series, LxWxH: 120x45x30 mm.

​The manually operated 8/3-way valve INV has the function of a hydraulic control valve. The changeover valve can be used to control 2 double-acting hydraulic consumers, e.g. two double-acting hydraulic cylinders. The 8/3-way valve enables the oil flow to be switched from port A to port B and port A1 to port B1.In the centre position, all connections are connected to each other.

Suitable for ESM universal beams type 30 - 16.

Suitable for Steyr

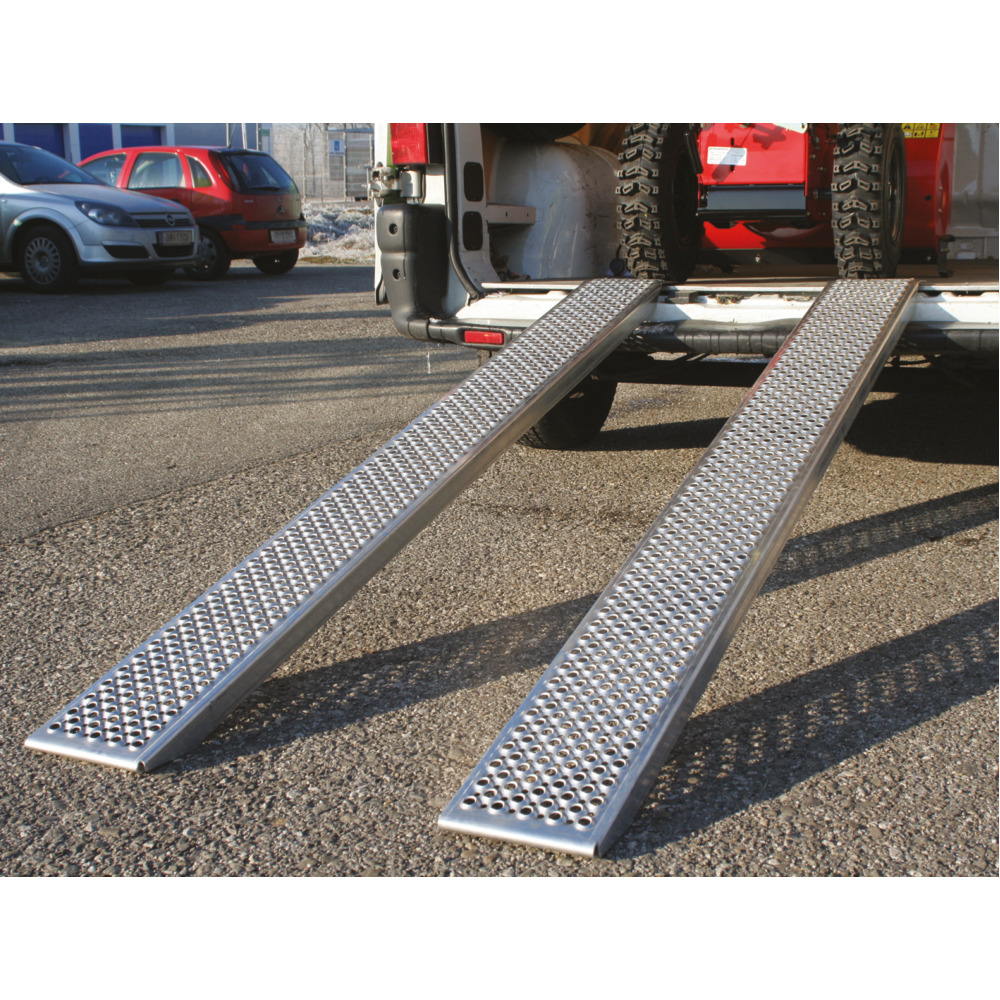

For trailers, transporters,... made of aluminum (per pair). Load capacity with a width of 200 mm: max. 400 kg/set, with a width of 260 mm: max. 900 kg/set. (Max. weight on 4 wheels with even distribution).

Ideal for a quick car check and car presentation. max. load 2000kg per pair, max. tire width 210mm, height 260mm, length 840mmTV/GS tested

High-quality, ergonomic comfort seat with horizontal base plate, ball bearings, black velor fabricTechnical data:Spring travel: 100mmWeight adjustment: 50-120kgHeight adjustment: 60mmLongitudinal adjustment: 240mmBackrest adjustment: 0-73 (folds forward)
