Agricultural machinery

Front attachment, 2 holes M4, hole spacing 104mm,LxWxH: 125x63x49mm,suitable for e.g. Class, Deutz, John Deere right/left

Metal housing, 2 M6 holes, hole spacing 45mmLxWxH: 110x57x45mm

44 mm, with indicators, horn, high/low beam.

15-pin connector

2 circuit indicator system, indicator light redInstallation : 26 mm Connections: 49a/R/L/54R/54F/L/C/C

left with license plate lighting, dimensions: 155x140mm, including bulbs, suitable for Case Series CS, CS Pro, CVX, Steyr Series 9000, 9100, CVT

right without license plate lighting, dimensions: 155x140mm, including bulbs, suitable for Case Series CS, CS Pro, CVX, Steyr Series 9000, 9100, CVT

AI3070 with two wide-angle flat jets, therefore very suitable for lower spray heights for better use of the droplet energy during deposition.30 jet forward in the direction of travel optimizes penetration in the upper leaf and ear area on the front sides, 70 jet towards the rear covers rear target areas.Drop sizes like short AIXR TeeJet and therefore the perfect compromise between loss reduction and degree of coverage. Large, round, free cross-sections for liquid and air increase operational safety and wear.Plastic designInjector can be removed if necessary.Automatic alignment with Quick TeeJet cap and seal Order No. 72989 Pressure range 1.5 - 6 bar, optimal 2 - 5 bar.Typical applications: Ear treatmentsother fungicides and insecticides in grain, leafy crops and special crops, potato cultivationHerbicides, especially for grasses and rough fields .

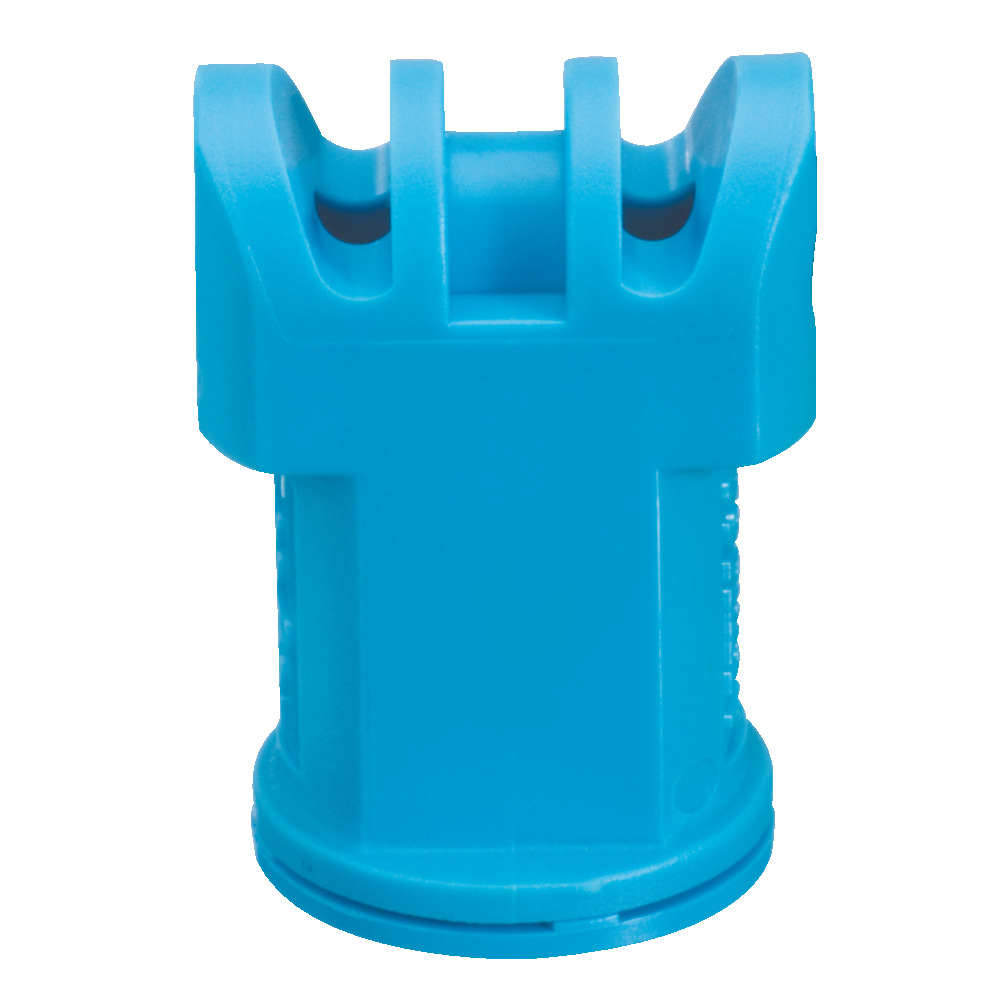

Application: Area sprayingInjector nozzle with double flat jet, 110 spray angle each.Angle of 60 between the two spray jets directed forward and backwards.Drop size like long AI TeeJet, therefore very low drift from 1.5 to 4 bar , optimal pressure for the effect from 4 bar, drift reduction excellent.Good lateral attachment to upright target surfaces and intensive penetration of tiered foliage.Large, round cross-sections for liquid and air increase operational safety and minimize wear.Two outer and inner air intake holes, injector insert can be removed if necessary.Automatic alignment of the spray jets with Quick TeeJet cap Order No. 66757.When using the nozzle with a fastening cap from a manufacturer other than TeeJet pay attention to the orientation of the nozzle. The black dot on the nozzle must point in or against the direction of travel.

Application: Liquid fertilization, surface sprayingPlastic versionVery low drift at 2-4 bar, optimal pressure for the effect 4-8 bar, JKI loss-reducing, Very good drift reduction.Thanks to the injector principle and depending on the properties of the crop protection product, drops with air pockets are possible.Larger drops can burst on the target surface, smaller drops that are created improve the deposition.The AI nozzle mouthpiece pressed into the Quick TeeJet cap ensures automatic alignment of the spray jet.

Application: surface spraying, liquid fertilization110 spray angle, injector technology, especially designed for the low pressure area, flat jet spray pattern.Compact dimensions with a length of 22 mm reduce the risk of damage.The injector principle produces larger drops, depending on the preparation Air pockets are also possible.Removable injector insertPressure range from 1.0 to 6 bar, optimal pressure 2 to 3.5 bar.Drift reduction very good, reducing JKI lossesAutomatic alignment of the spray jet with Quick TeeJet cap Order No. 66756

Passend zu Steyr Plus Serie

Inlet pipe to water pump for Steyr: T188

Consists of: fender trim left+right and trim behind the seat

Diameter: 125mmInner plate PTO shaft clutch Steyr ?

Knife holder for lower knife guide arm for riveting. Suitable for Busatis double knife mower BM 321KW, BM 1102, BM1124, BM1260.

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

Suitable for BUSATIS mower BM 1102, BM 1124, BM 1135 and BM 1260. Original ESM spare part.

0.2mm thick shim for adjusting the height of the knife holder on finger bars from Agria, ESM mowers and Vogel &~ Noot mowers.

Shim plate for adjusting the distance between the knife holder and the friction plate. Suitable for Aebi, Agria, Bucher, ESM, Kppl, Nussmller Rasant and Rapid.

Tab cross section 51x10 mm

Sleeve for fixed part PSF with locking
