Agricultural machinery

Hose connector for compressed air hoses with external thread M16 x 1.5 and internal hose diameter 11 mm

Hose connector for compressed air hoses with external thread M16 x 1.5 and internal hose diameter 13 mm

Hose connector for compressed air hoses with external thread M22 x 1.5 and internal hose diameter 11 mm

Hose connector for compressed air hoses with external thread M22 x 1.5 and internal hose diameter 13 mm

The galvanised steel hose end piece is a practical accessory for the slurry hose. It is fitted with a lateral angle iron which protrudes from the spout. The hose end piece prevents the slurry hose from sticking to the container or pit floor. The slurry hose is fastened with wide band clamps.The total length is 370 mm. The spout is 220 mm long.

Marking arrow for identifying hose lines, arrow (alternately marked with - and +) and plastic fastening tab. Commercially available cable ties can also be used for assembly.

9 pieces, 7 patches, 1 tube of SVS solution 5 g, 1 rough paper. For bicycles, wheelbarrows, rotary haymakers,...

12 pieces, with 10 patches, 1 tube of SVS solution 10 g, 1 rough sheet. For cars, trailers,...

26 pieces, with 17 patches, 1 tube of SVS solution 25 g, 3 rough plates, 3 short valve inserts, for agricultural/construction machinery.

These valves allow an adjustable flow from the consumer to the return. If the flow rate determined by the setting is exceeded, for example in the event of a pipe burst, the valve closes immediately. The movable baffle plate is pressed onto the valve body against the built-in spring due to the increased flow forces. The valves should be installed on the consumer as soon as possible to ensure maximum safety.

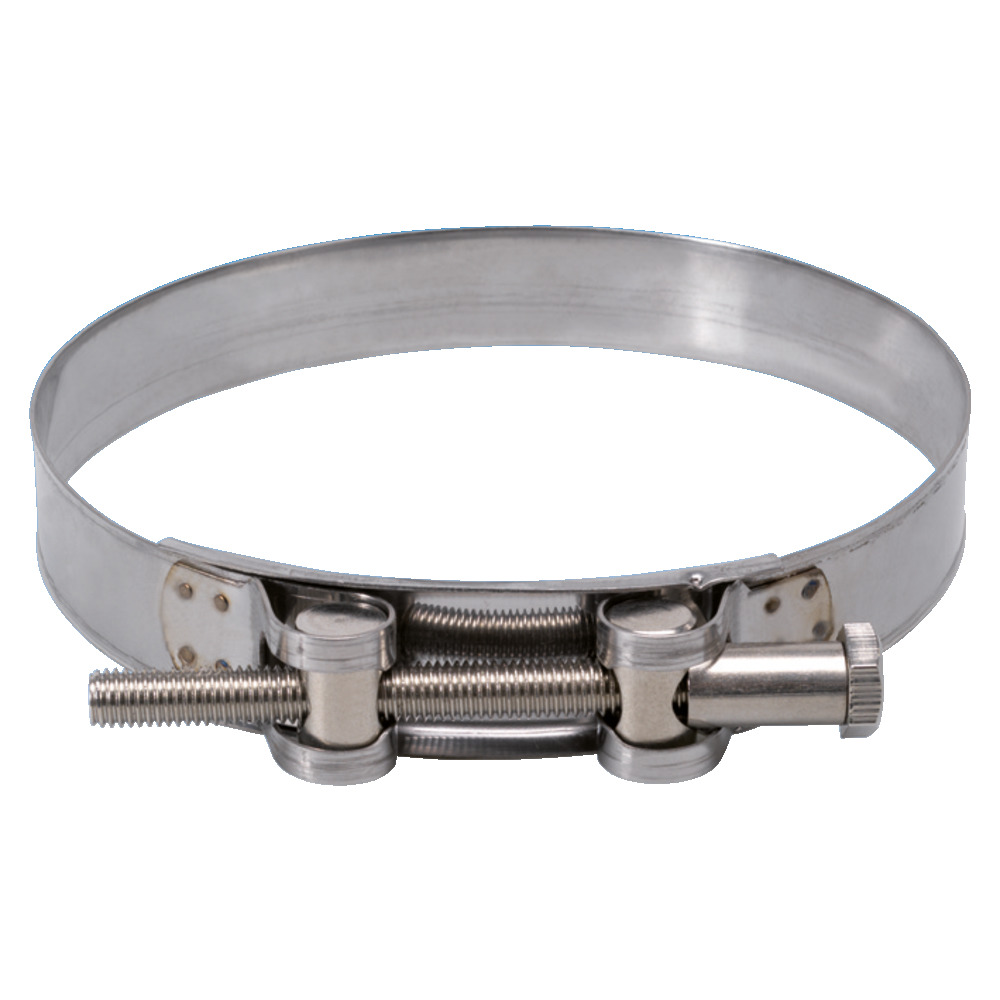

Stainless steel hose ties RUST FREE, version W4. All individual parts are made of stainless steel AISI 304. The edges of the wide band clamps are crimped to ensure easier installation.

Radio control with hydraulic control valve!2-channel radio control set for hydraulically driven winches, oil motors or hydraulic cylinders with 12 volt monoblock valve, the radio is pre-wired with a 7-pin vehicle plug , the solenoid valve is double-acting and has a connection for pressure continuation, technical data: 12 volts 3 amps, flow rate max. 50 L/min. Connections: 1/2?IG inlet/output and consumer<~cbht/>~1/2?AG to continue printing

Pressure force 2261 kg, tensile force 1378 kg at 180 bar, connection G 1/4, nominal pressure 250bar

Pressure force 14137 kg, tensile force 10602 kg at 180 bar, connection G 1/2, nominal pressure 250bar

Bolt d=40 mm, connection G=R1/2", T=69 mm, U=25 mm, pressure force 14137 kg, tensile force 9047 kg at 180 bar, nominal pressure 250 bar.

Pressure force 20357 kg, tensile force 13430 kg at 180 bar, connection G 1/2, nominal pressure 250bar

Bolt d=16 mm, connection G=R1/4", T=35 mm, U=15 mm, pressure force 883 kg, tensile force 521 kg at 180 bar, nominal pressure 250 bar.Joint eye 16 mm with lubrication hole on both sides .

Pressure force 883 kg, tensile force 521 kg at 180 bar, connection G 1/4, nominal pressure 250bar

Pressure force 1447 kg, tensile force 882 kg at 180 bar, connection G 1/4, nominal pressure 250bar

Bolt d=20 mm, connection G=R1/4", T=38 mm, U=22 mm, pressure force 1447 kg, tensile force 882 kg at 180 bar, nominal pressure 250 bar.Joint eye 20 mm on the piston rod side with a lubrication hole .
