Agricultural machinery

To keep the load in one position without leaking oil! The following functions are achieved:Limitation of the oil flow (even in the event of a line break)Prevents a pulling or pushing load from rushing awayPressure limiting functionUse only possible with control valves that have a consumer tank in the zero position -Connection (floating position) havePressure range 60 to 350 bar., max. load pressure 270 bar, control ratio 4.25:1.

Partial ratio 1:1. The incoming oil flow is divided into 2 equal parts regardless of the operating pressure. If the flow direction changes, the partial flows are added back together. Eg for silo tongs with 2 cylinders. If the silo tongs are filled unevenly, the cylinders are subjected to different stresses. This can be prevented with the flow divider.

​Bolt-øD=20.5 mm, connection P=G 3/8 inch, G=28 mm, F=40 mm, compressive force 2261 kg, tensile force 1378 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=20.5 mm, cross bushing ØD=20.5 mmCylinder Ø C = 50 mmPiston base Ø K = 50 mm

Bolt-øD=25.5 mm, connection P=G 3/8 inch, G=43 mm, F=45 mm, compressive force 5089 kg, tensile force 3810 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=25.5 mm, cross bushing ØD=25.5 mmCylinder Ø C = 70 mmPiston base Ø K = 70 mm

Bolt-øD=30.5 mm, connection P=G 3/8 inch, G=34 mm, F=55 mm, compressive force 6927 kg, tensile force 4665 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=30.5 mm, cross bushing ØD=30.5 mmCylinder Ø C = 80 mmPiston base Ø K = 80 mm

The valve is used for overpressure or overload protection in 2 pressure lines. It can be used both as a shock valve and as a pressure relief valve for continuous operation. The valve is an ideal protection against sudden pressure surges and enables the setting of different pressures at two inlets of the hydraulic system. The shock valve is used to protect hydraulic motors, synchronised cylinders and systems with the same stroke volume. For example, the protection of snow plough cylinders that are constantly exposed to external forces and loads during operation. Shock valves are positioned as close as possible to the consumer to be protected. Adjustable pressure range: 40 - 210 bar

​The valve is used for overpressure or overload protection in 2 pressure lines. It can be used both as a shock valve and as a pressure relief valve for continuous operation. The valve is an ideal protection against sudden pressure surges and enables the setting of different pressures at two inlets of the hydraulic system. The shock valve is used to protect hydraulic motors, synchronised cylinders and systems with the same stroke volume. For example, the protection of snow plough cylinders that are constantly exposed to external forces and loads during operation. Shock valves are positioned as close as possible to the consumer to be protected. Adjustable pressure range: 40 - 210 bar

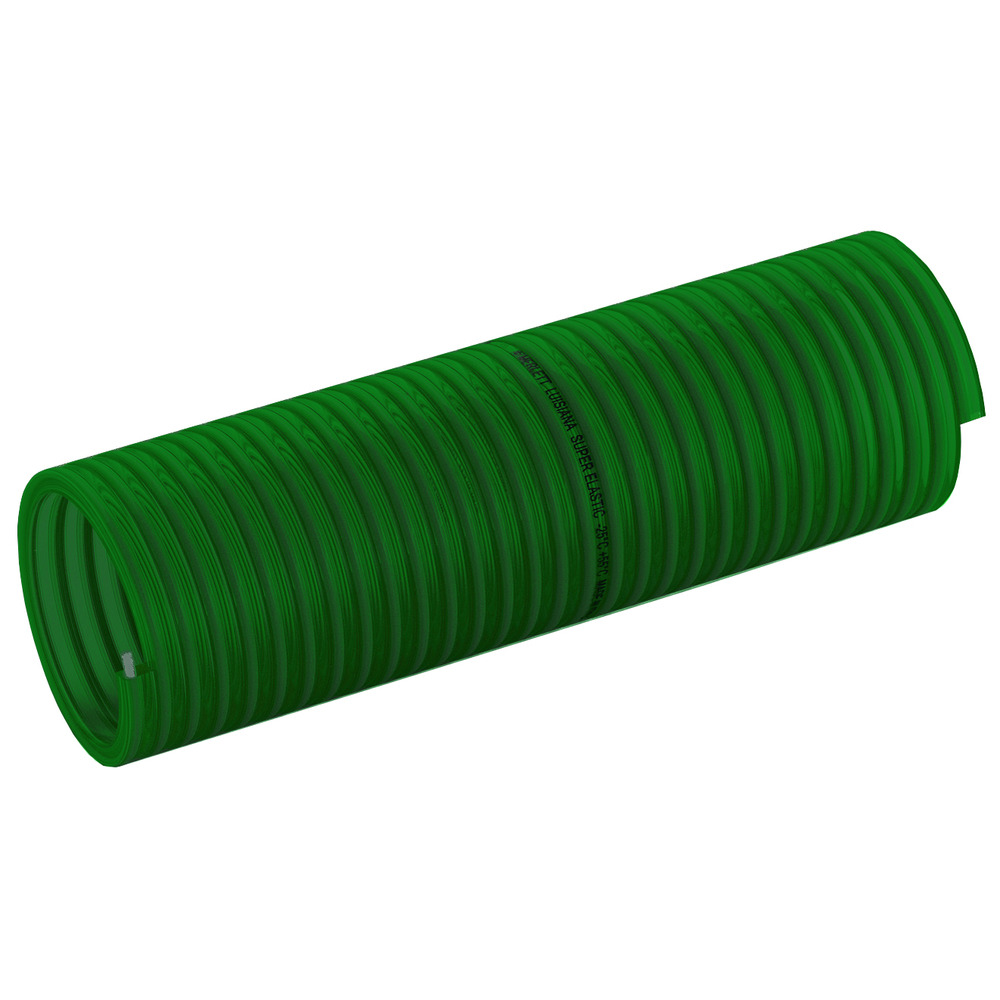

PVC suction and pressure hose with hard PVC spiral. The high rigidity (Shore hardness 85) of the hose makes it possible to precisely position the end piece on the drag hose distributor near the ground. This ensures optimal and precise spreading of the manure.

Brass, for draining condensation from the air tank, venting the pressure lines and air tank

simple, 1/4? connection.

double, connection 1/4?.

Outer diameter 96.70 mm Inner diameter 65.00 mm Height 23.00 mm

Release bearing 62x102x18

In order to drive the RT series gearboxes with a drive shaft, a PTO stub is fitted instead of an oil motor. The PTO stub has a profile of 1 3/8 x 6 and, on the gearbox side, a smooth shaft with a diameter of 25 mm and a keyway.

Suitable for AEBI Type A33, A35, A41 center section.

Suitable for AEBI Type A71, A73, A81, AM9, AM20.

Driver screw suitable for Aebi, Agria and Nussmller-Rasant motor mowers and cutter bar for mower blade drive with mushroom rivets on the swing arm

Driving rod wood suitable for Mrtl cutter bars. The crank rod wood is made from local ash wood.

drop forged

Druckfeder für Schalthebel zu Steyr: T188, T190, T288, T290AußenØ: 42mm InnenØ: 37mm Länge: 65mm  Stärke: 2,5mm

Einbaudurchmesser: ø 15mmSchraubkontakt: 2 x M5Ausführung: SchließerIP 40
