Agricultural machinery

Double disc coulter suitable for David, Kongskilde and Kverneland spring tine cultivators. The coulter has a material thickness of 8 mm, ensuring a longer service life.

M14 x 1.5 mm on both sides

Suitable for AEBI Type A71, A73, A81, AM9, AM20.

Agria: Suitable for 1700, 2300, 2400, 3300, 5400, 6000, BM3600.Bird &~ Noot: Suitable for Plus 1, 3, 4 middle cut.

Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

Double finger plate for BCS mowers in the 94 EUROPA series. These mowers can be found on Aebi, BCS mowers in the 600 and 700 series, as well as on Reform motor mowers in the 600 and 700 series.

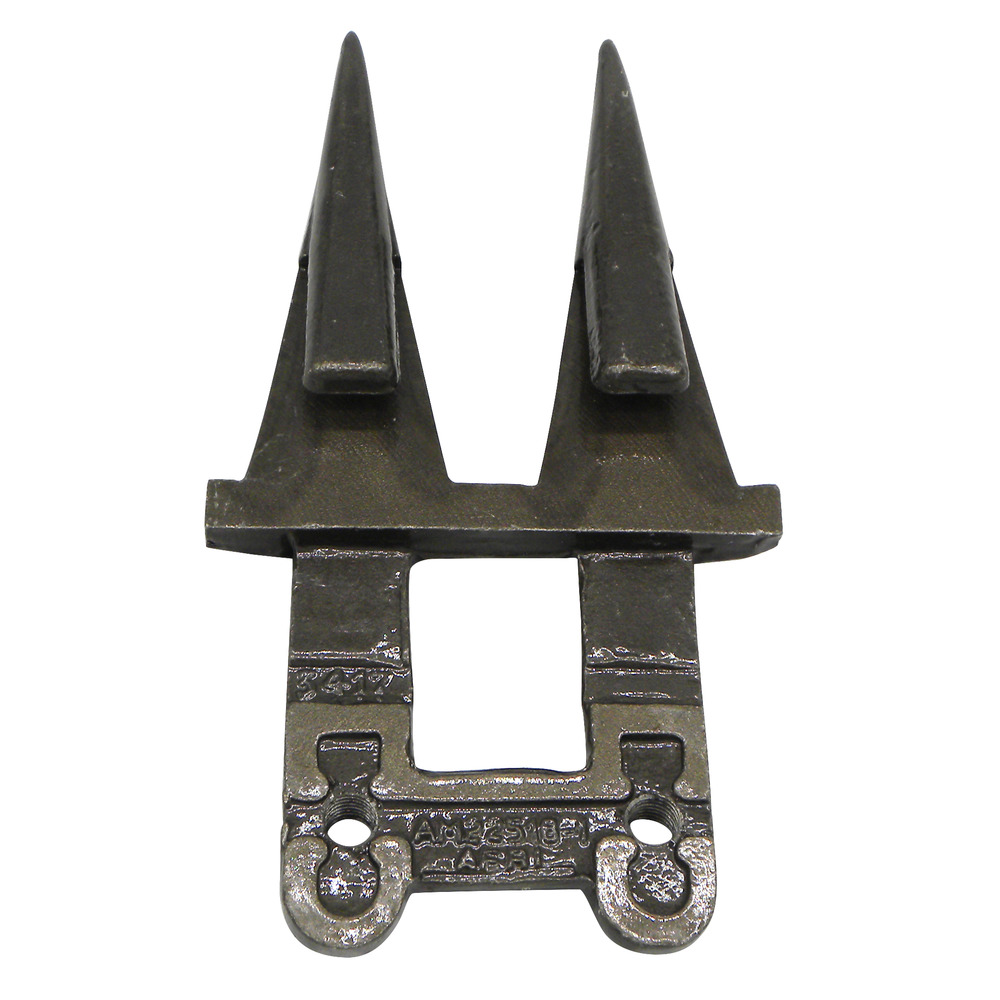

Double finger 22160 suitable for Gaspardo, Gutbrod, Kppl and RapidHole spacing of the mounting thread holes 51mm with M10 thread.

Suitable for Reform Type RM58, 158, 110, 111, 111S, 112, 115, 116, 131, 316.

Replacement for single finger A33Suitable for AEBI Type A33, A35, A41 center cut and A71, A73, A81, AM9, AM20

Pipe elbow 90 in size 6" with two flange connections. The square 4-hole flange has the dimensions 180x180mm. The hole spacing of the holes is 150x150mm and the holes have a diameter of 13mm. The double flange elbow has a radius of 195mm and a height of 285mm.

Pipe elbow 90 in size 6" with two flange connections. The square 4-hole flange has the dimensions 180x180mm. The hole spacing of the holes is 150x150mm and the holes have a diameter of 13mm. The double flange elbow has a radius of 400mm and a height of 490mm.

The straight double nipple or BSP adapter is used for screw connections with the same or different internal threads. The adapter is made of steel and has two cylindrical threads of the same or different sizes. The 60° internal cone enables a tight connection with a hose connection with a 60° universal sealing cone.

Made of polypropylene, with 2 clamp halves, welding plate, cover plate and hexagon screw.

Suitable for Steyr with SK1 cabin

Particularly suitable for hydraulic cylinders that need to hold large loads in position. Max. pressure 350 bar, control ratio 4:1.

To keep the load in one position without leaking oil! The following functions are achieved:Limitation of the oil flow (even in the event of a line break)Prevents a pulling or pushing load from rushing awayPressure limiting functionUse only possible with control valves that have a consumer tank in the zero position -Connection (floating position) havePressure range 60 to 350 bar., max. load pressure 270 bar, control ratio 4.25:1.

Partial ratio 1:1. The incoming oil flow is divided into 2 equal parts regardless of the operating pressure. If the flow direction changes, the partial flows are added back together. Eg for silo tongs with 2 cylinders. If the silo tongs are filled unevenly, the cylinders are subjected to different stresses. This can be prevented with the flow divider.

​Bolt-øD=20.5 mm, connection P=G 3/8 inch, G=28 mm, F=40 mm, compressive force 2261 kg, tensile force 1378 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=20.5 mm, cross bushing ØD=20.5 mmCylinder Ø C = 50 mmPiston base Ø K = 50 mm

Bolt-øD=25.5 mm, connection P=G 3/8 inch, G=43 mm, F=45 mm, compressive force 5089 kg, tensile force 3810 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=25.5 mm, cross bushing ØD=25.5 mmCylinder Ø C = 70 mmPiston base Ø K = 70 mm

Bolt-øD=30.5 mm, connection P=G 3/8 inch, G=34 mm, F=55 mm, compressive force 6927 kg, tensile force 4665 kg at 180 bar, nominal pressure 250 bar.Cross bore in base ØD=30.5 mm, cross bushing ØD=30.5 mmCylinder Ø C = 80 mmPiston base Ø K = 80 mm

The valve is used for overpressure or overload protection in 2 pressure lines. It can be used both as a shock valve and as a pressure relief valve for continuous operation. The valve is an ideal protection against sudden pressure surges and enables the setting of different pressures at two inlets of the hydraulic system. The shock valve is used to protect hydraulic motors, synchronised cylinders and systems with the same stroke volume. For example, the protection of snow plough cylinders that are constantly exposed to external forces and loads during operation. Shock valves are positioned as close as possible to the consumer to be protected. Adjustable pressure range: 40 - 210 bar
