Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and the ports A &~ B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.1. Double-acting control slide DW: H=lifting, 0=middle position, S=lowering2. Control slide doubleacting DW: H=lifting, 0=middle position, S=lowering3. Control slide doubleacting DW: H=lifting, 0=middle position, S=lowering4. Control slide double-acting DW: H=lifting, 0=middle position, S=loweringStandard version of the valves in parallel connection.Flow rate max.: 90 L/min. Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 20-315 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4? The switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and the ports A &~ B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.1. Single-acting control slide DW: H=Raise, 0=Middle position, S=Lower2. Control slide doubleacting DW: H=lifting, 0=middle position, S=lowering3. Control slide doubleacting DW: H=lifting, 0=middle position, S=lowering4. ~Control slide double acting ~DW-SWR: H=raising, 0=middle position, S=lowering, SW-R=floating position lockedStandard version of the valves in parallel connection. Flow max.: 90 L/min.Operating pressure: 250 barmax. Pressure: 315 barRelief valve set: 100 bar, adjustable from 20-315 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T, T2: R3/4? The switching positions listed depend on the respective model of the control valve.

Mechanical actuation with spring return as standard. The middle position is designed with a pressureless circulation and ports A, B are blocked. Pressure relief valve at connection P (pump). Negative overlap of the slides.Standard design of the valves in parallel connection.Flow max.: 90 L/min.Operating pressure: 250 barmax. Pressure: 320 barRelief valve set: 150 bar, adjustable from 50-350 barScrew-in thread A, B, P, P2: R1/2?Screw-in thread T1, T2: R3/4? H=Raise, 0=Middle position, S=Lowering.The switching positions listed depend on the respective model of the control valve.

with the matching attachment kit for Cat.

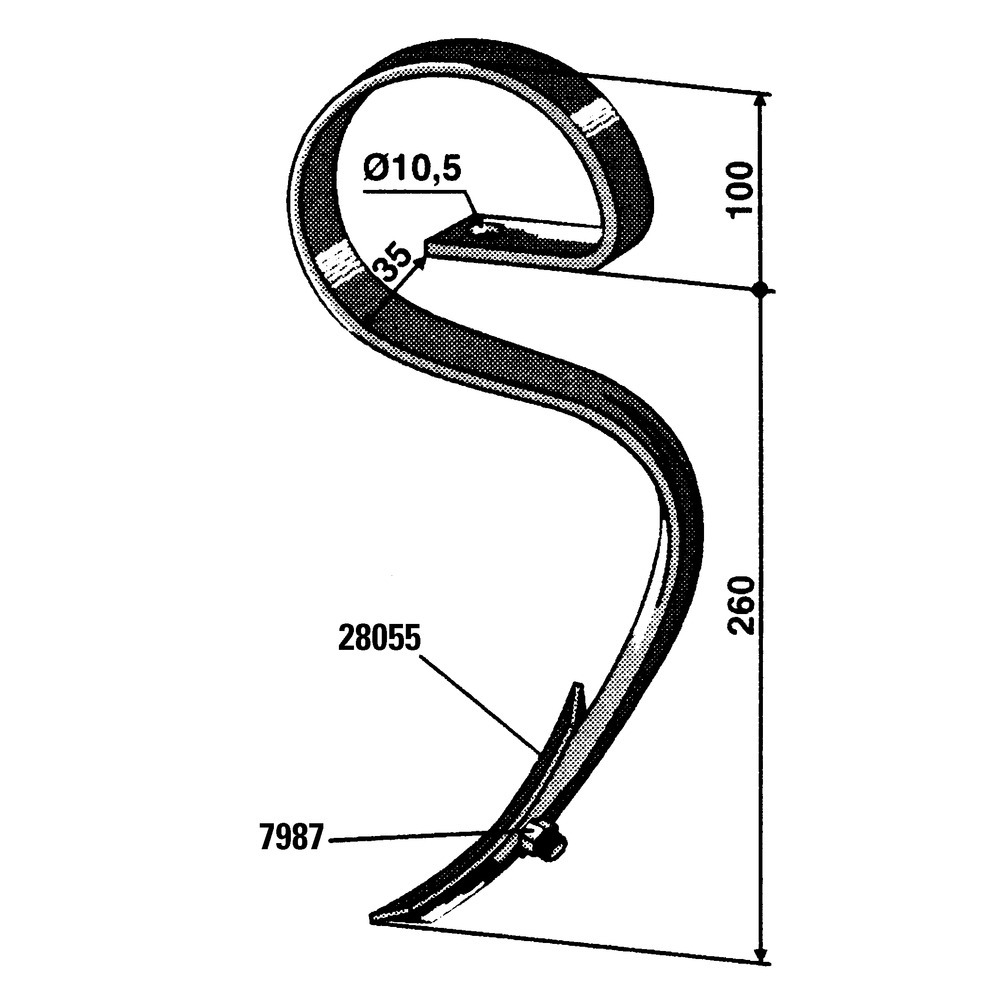

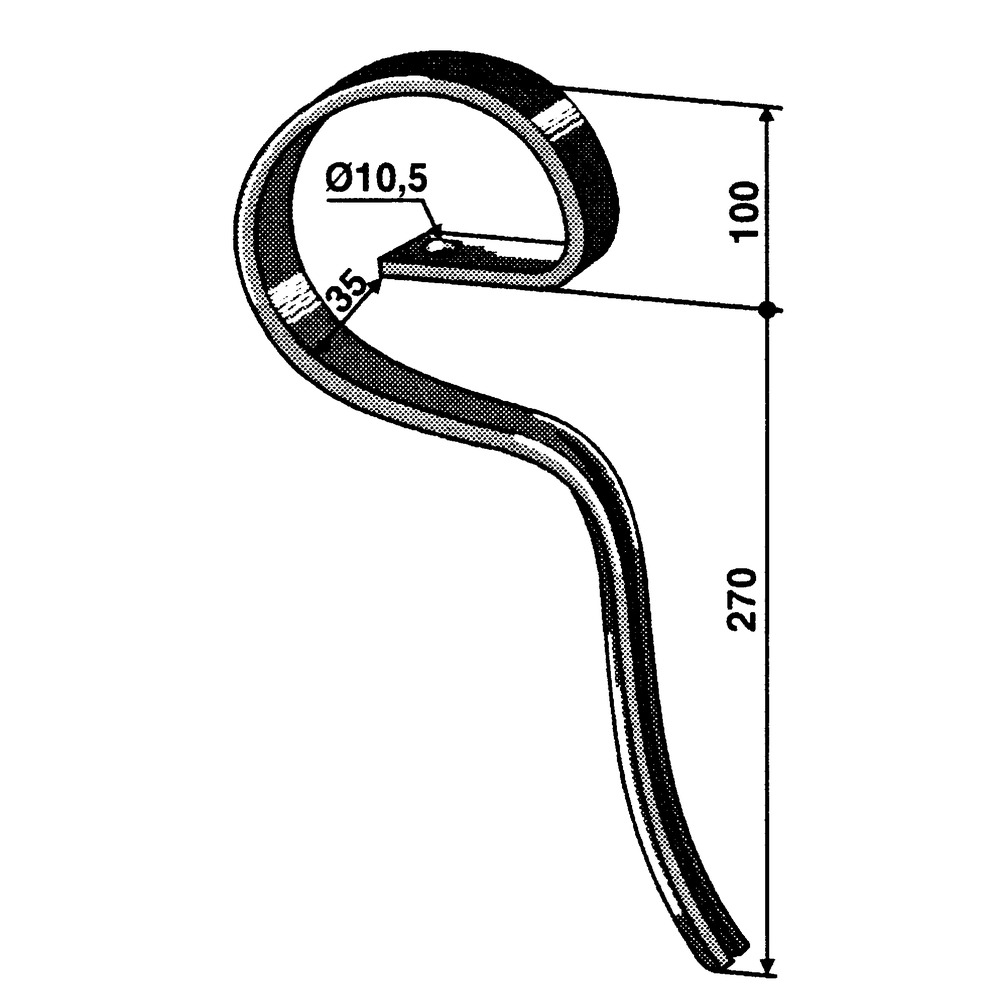

Cooking tine from European production. ~ The tine material has a width of 25mm and a thickness of 8mm.

for the front row, tine material 25x8.

Tine material 25x8.

for the front row, tine material 25x8.

​Height: 585 mmWidth: 420 mmConnections: ø 35 mm

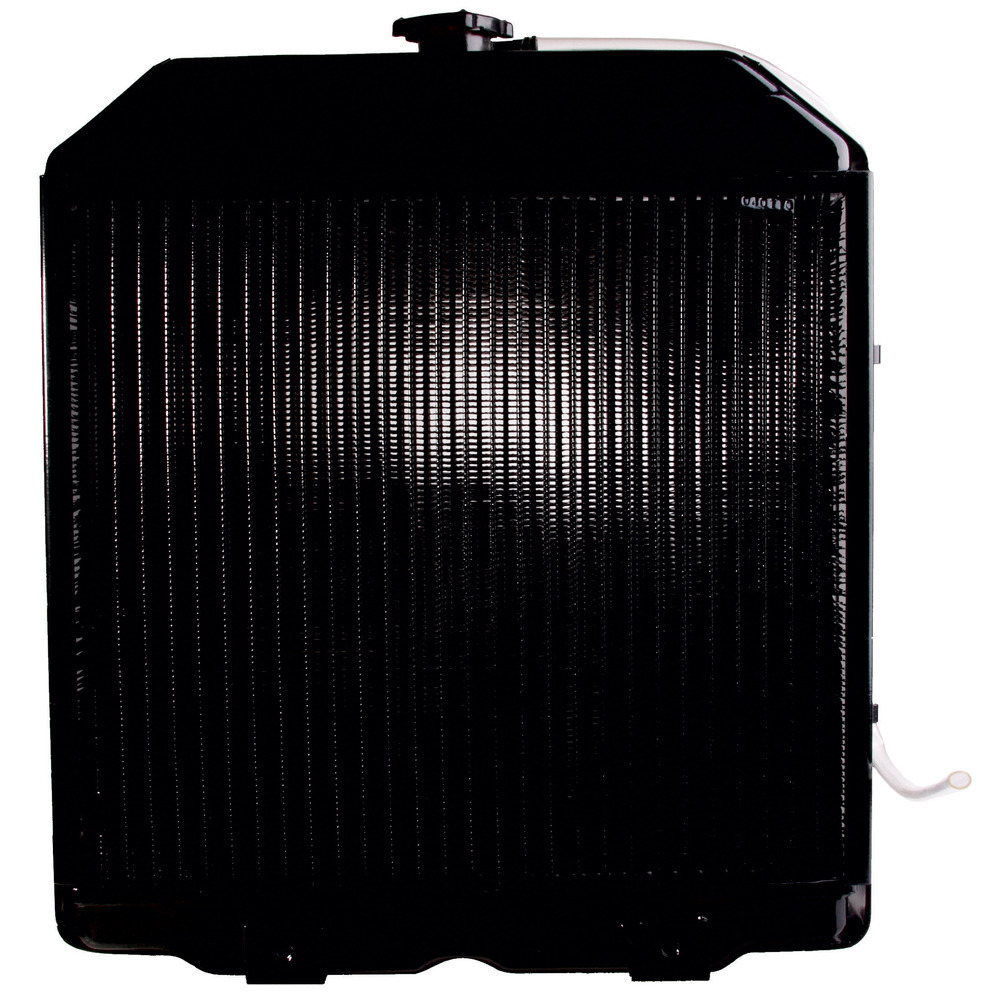

Suitable for Steyr Plus series

4 rows

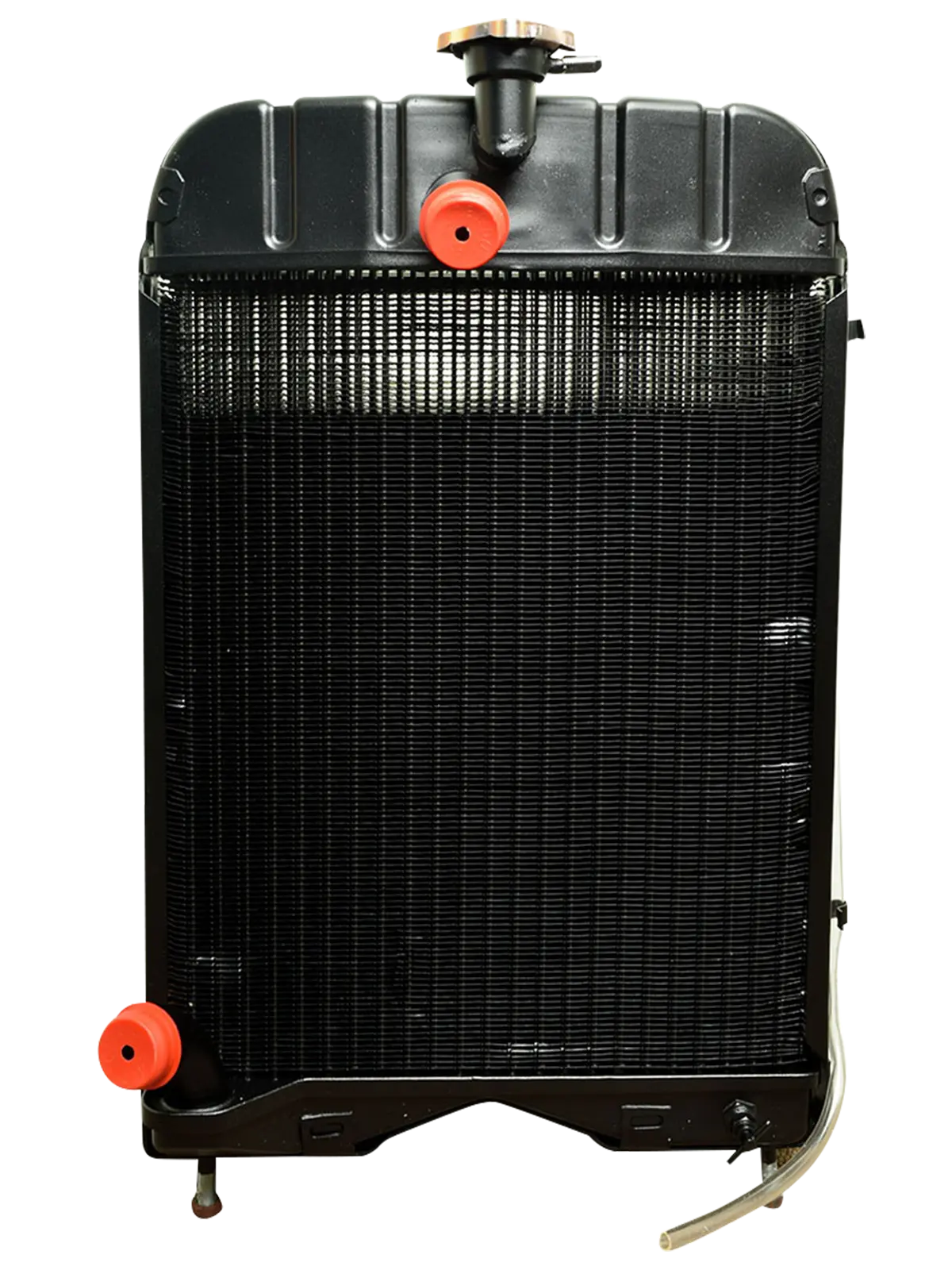

​Overall height: 770 mm,Total width: 598 mm,Thickness: 95 mm,Inlet: Ø 50 mm,Outlet: Ø 50 mmFits from serial number: B246029

​Universal drain valve, e.g., for radiators, engine blocks, etc.Thread: M10 x 1.5 mm conical thread

​Universal drain valve, e.g., for radiators, engine blocks, etc.Thread: M16 x 1.5 mm conical thread (tapered thread)

Universal drain plug, e.g. for radiators, engine blocks, etc.Thread: M14 x 1.5 mm tapered thread (conical thread)

100 pieces, suitable for Faie brake pads No. 24933, 24942, 24943

100 pieces, suitable for Faie brake pads No. 24944, 24953

100 pieces, suitable for brake pad Faie No. 24916

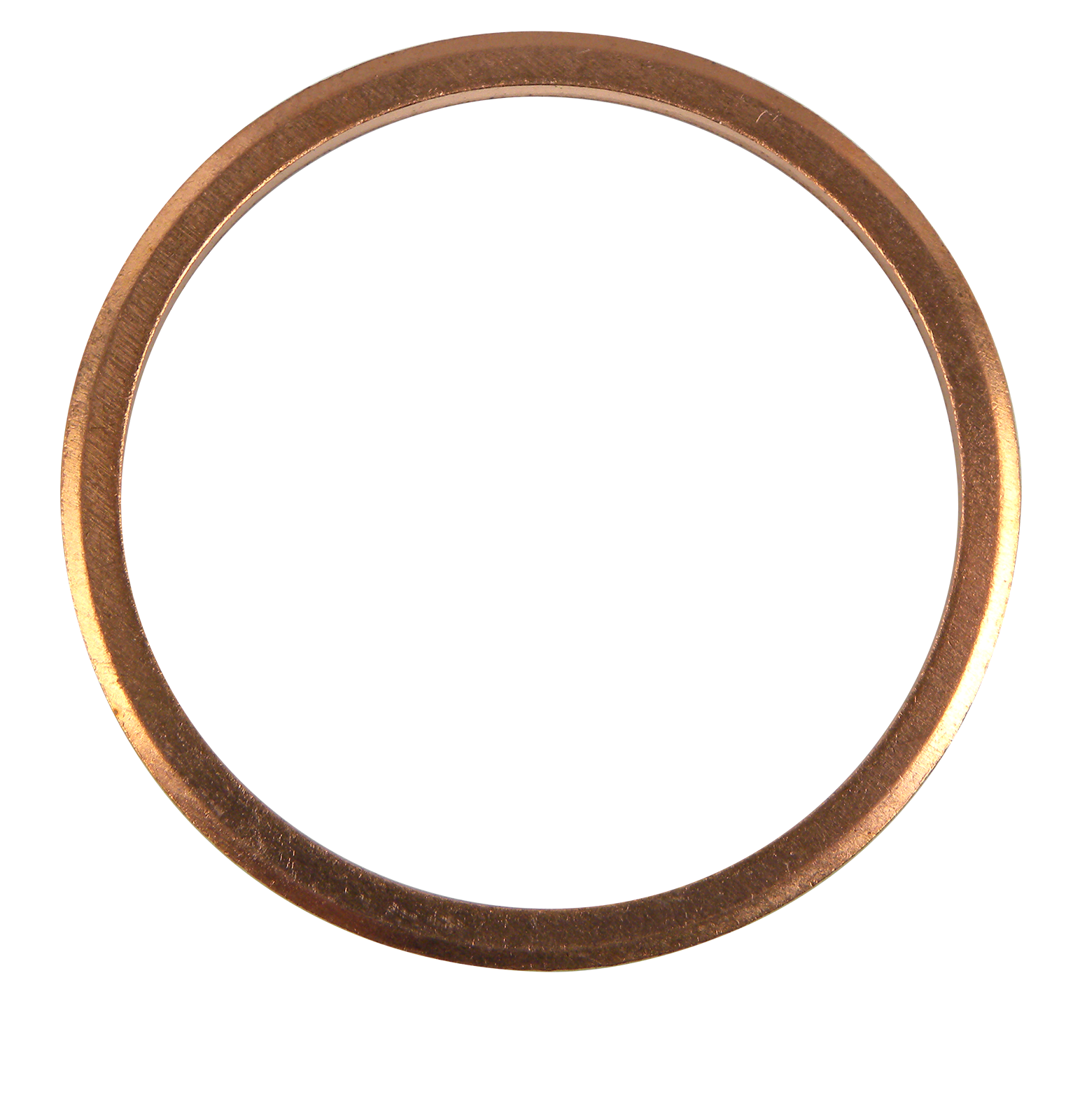

DIN 7603A

Dimensions: 19x11x1.5mm

Dimensions: 19x11x1.0mm

Inner diameter: 10.04mmOuter diameter: 21.08mm

Core hole cover 17mm

Core hole cover 20mm
