Agricultural machinery

​Bottom knive for double knife bar Busatis with a total number of 23 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76,2 mm. The blade is supplied complete with the riveted upper cutter head, on the left-hand side when viewed in the direction of travel. Suitable for Nussmüller-Rasant Junior 90 motorised mowers with Busatis double blade mower.Cutting width: 167 cm Overall length with cutterhead: 177 cm Length of cutter back: 173 cm Cutter head on the left in the direction of travel, 40 mm projection over the back of the blade Cutterhead length: 335 mm Total number of blades: 23, of which 3 blades with knobPosition of the blades with knob starting from the cutterhead: 6th, 12th and 18st blade Blade pitch (blade centre to blade centre): 76,2 mm

​Bottom knife for Busatis double knife bar with a total number of 24 blades. Of these, 3 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 76 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Suitable for Bucher and Reform Kombi M12 motorised mowers with Busatis double blade mower. Overall length with cutterhead: 184 cm Length of cutter back: 181 cm Cutter head on the left in the direction of travel, 28 mm projection over the cutter back Cutterhead length: 360 mm Total number of blades: 24, of which 3 blades with knobPosition of the blades with knob starting from the cutterhead: 5th, 12th and 19th blade Blade pitch (blade centre to blade centre): 76 mm

Bottom knife for bidux double knife bar with a total number of 24 blades. Of these, 4 pcs. blades with knob for holding the knife guide arms. The pitch of the blades from blade centre to blade centre is 84 mm. The blade is supplied complete with the riveted-on lower blade head, on the left-hand side when viewed in the direction of travel. Total length with knife head: 2020 mm Length of knife back: 1990 mm Cutter head 5840.055.01, 345.0770 Protrusion of knife head over knife back: 28 mm Length of knife head: 400 mm Tang knife head: 18 mmTotal number of blades: 24, of which 4 blades with knobPosition of the blades with knob starting from the knife head: 6th, 11th, 16th and 21st. Blade and blade pitch (blade center to blade center): 84mm

Bottom knife 26 blades DME1606B

Connection joint between rocker arm and bedknife head. Thread M14x1.5, bore 18mm, left

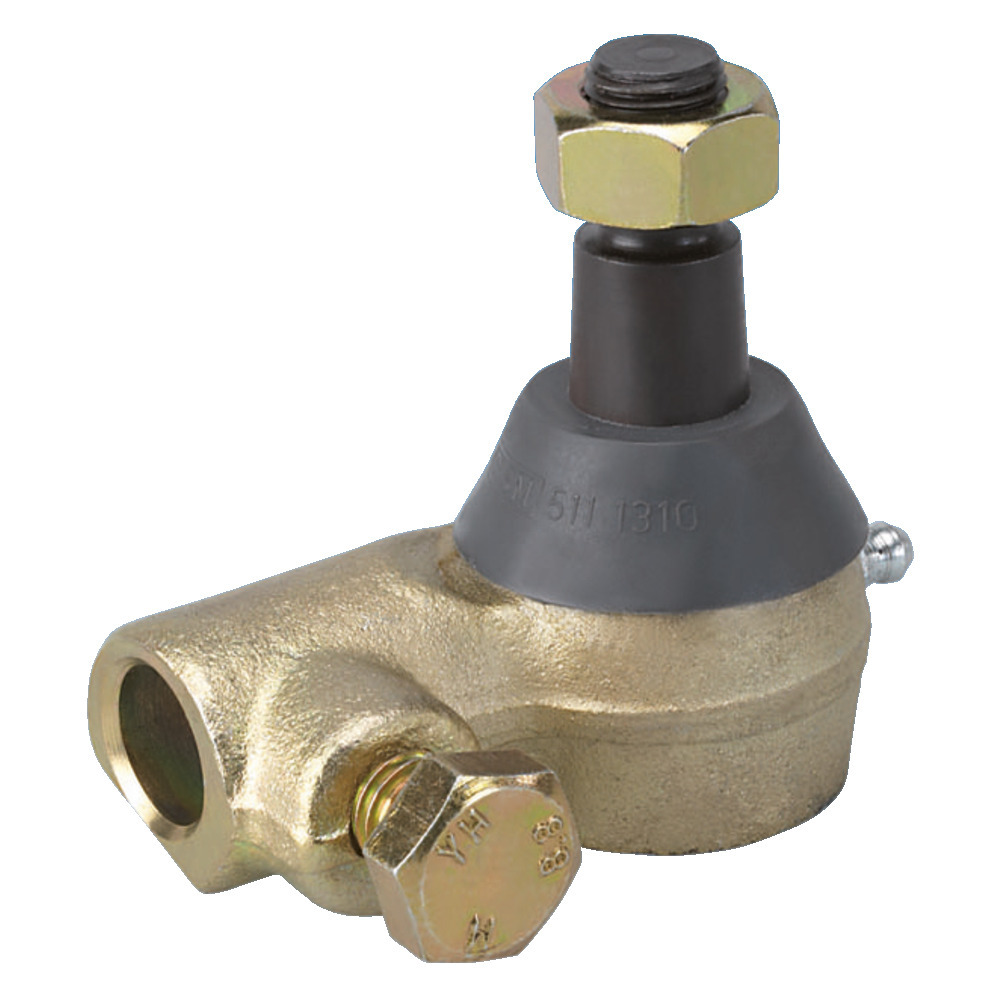

Connection joint between rocker arm and bedknife head. Thread M14x1.5, bore 18mm, right

Thread M14x1.5, pin hole 16 mm.

Bottom knife to double knife bar bidux system with a total number of blades of 26 pieces. 4 of these are blades with mushrooms to hold the knife guide arms. The pitch of the blades in the distance from blade center to blade center is 84mm. The knife is delivered complete with the riveted bottom cutter head, seen on the left side in the direction of travel.Suitable for Aebi Mähtrac TT33 and Rapid MT200 with double-blade front mower and for Busatis rear and side mower BM 1205.

Bottom knife to double knife bar bidux system with a total number of blades of 30 pieces. 5 of these are blades with mushrooms to hold the knife guide arms. The pitch of the blades is 84mm distance from blade center to blade center. The knife is delivered complete with the riveted bottom cutter head. Suitable for Aebi Mhtrac TT33 with double knife front mower and for Busatis rear and side mower BM 1205.

​​Bottom knife for the bidux ESM double-blade bar, compatible with Aebi, IBEX and Köppl, with a total of 29 blades. Four of these are blades with knob for attaching the knife guide arms. The spacing between the centres of the blades is 70 mm. The knive is supplied without the blade head, which is screwed onto the left-hand side when viewed in the direction of travel. The upper-knive-head is secured with 3 M8 fixing screws. The blades with knob are positioned at the 5th, 12th, 18th and 25th blades.

Bottom knife for the bidux double-blade bar system, with a total of 28 blades. Of these, 5 are blades with knob for mounting the blade guide arms. The spacing between the centres of the blades is 84 mm. The knife is supplied complete with the riveted Bottom blade head, located on the left-hand side when viewed in the direction of travel.Suitable for the Nussmüller-Rasant with bidux double-blade mower.Total length including blade head: 234 cmLength of blade backs: 233 cmBlade head on the left-hand side when viewed in the direction of travel, offset 7 mm outwards; blade head length: 380 mmTotal number of blades: 28, of which 5 are blades with knob, position of the blades with knob relative to the blade head: 9th, 11th, 16th, 21st, and 25th bladesBlade spacing (centre to centre): 84 mm

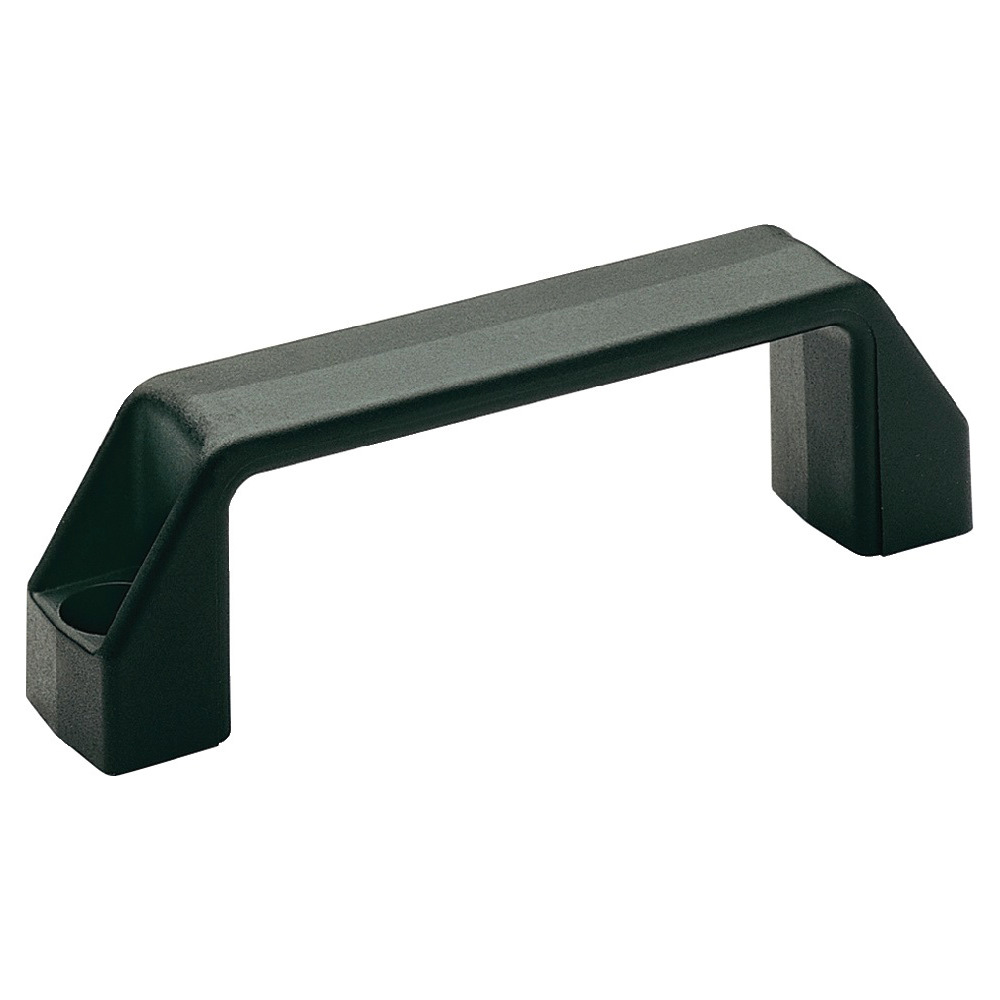

High-quality bow handle made of plastic, PA thermoplastic (polyamide) glass fiber reinforced, temperature resistant up to 150 C, black, RAL 9005SW

Bow knife suitable for Breviglieri Type MBE

Foldable, galvanized, hole spacing 30 mm.

for trailer lighting socket

This top link bracket enables hydraulic top links to be securely mounted on the tractor and ensures a stable attachment to the tractor. The robust design makes installation easy and reliably holds the top link in position when it is not in use. Suitable as a practical retrofit or spare part for hydraulic top links. Advantages & Features • Simple, robust mounting for the retaining bracket of a top link. • Tractor-side design – secure and neat mounting. • Robust steel construction – durable and resilient in daily use. • Easy retrofitting – ideal as a replacement or addition to agricultural vehicles. Frequently Asked Questions What is the mount used for? It is used to secure or mount the retaining bracket of a (hydraulic) top link on the tractor side. Is the bracket suitable for retrofitting? Yes, it is suitable as a spare part or for retrofitting compatible tractors. Is a top link bracket or a top link included in the scope of delivery? No, only the tractor-side bracket is supplied. Translated with DeepL.com (free version)

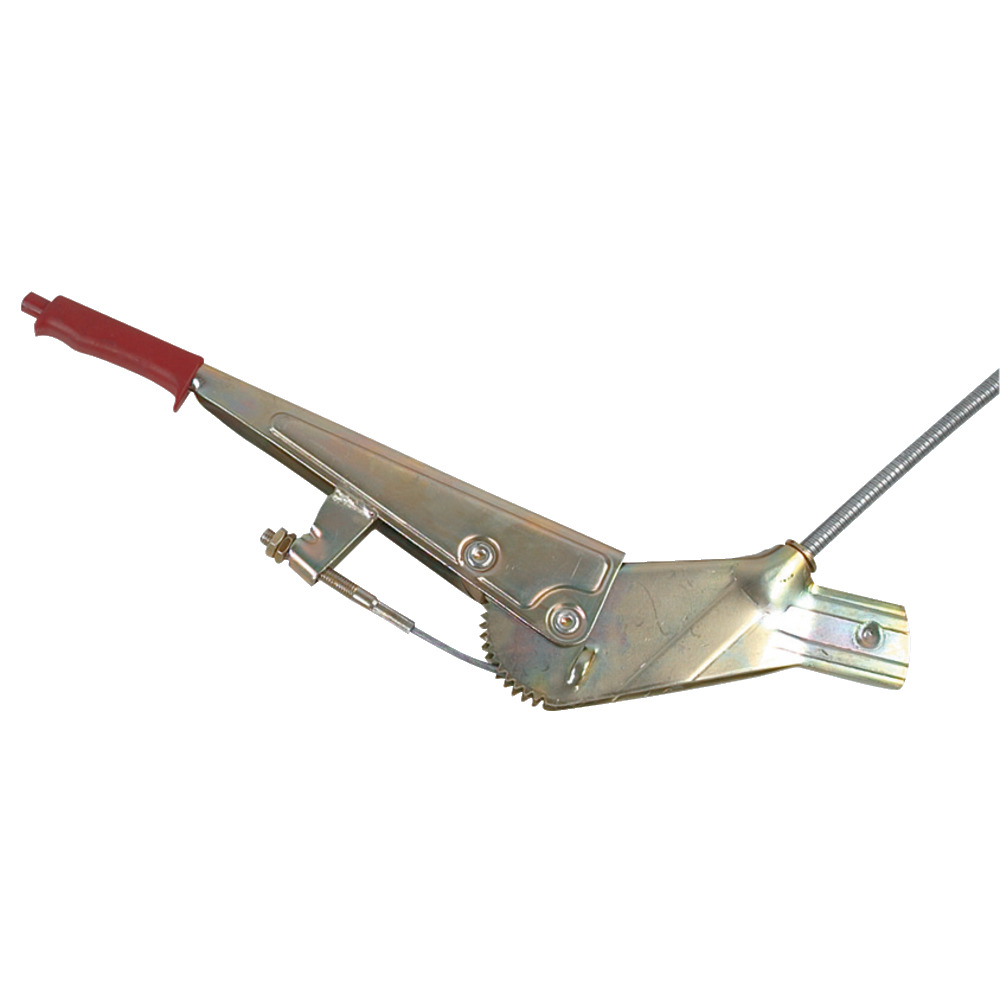

Sheath 2300 mm long, 12 mm, rope 3800 mm long, 5 mm, incl. insert pocketReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome, tab cross section 51x10 mm.

Sheath 3500 mm long, 12 mm, rope 6200 mm long, 5 mm, including insert pocket, tab cross-section 51x10 mmReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome.

Sheath 2300 mm long, 12 mm, rope 5200 mm long, 5 mm, incl. insert pocketReversible brake cable for vehicles up to a permissible total weight of 4000 kg, yellow chrome, tab cross section 51x10 mm.

Galvanized cable pull, cable connection thread M8, sleeve length 1230 mm, cable length 1440 mm, bell outer dimension 22 mm

With 2 return springs. Single-acting, total length: 360 mm, stroke: 110 mm, piston rod 30 mm, connection: R3/8"~ IG.

With built-in return spring, installation length: 280 mm, stroke: 100 mm, cylinder inner 40 mm, connection: R1/4"~ Female thread, cylinder outer 50 mm, bolt 21 mm, fork slot 14.5x40 mm,

​Pull cylinder with built-in release spring, installation length centre-to-centre 405 mm, total length 430 mm, stroke: 85 mm, cylinder inner diameter 35 mm, cylinder outer diameter 45 mm, piston rod 25 mm, forks with 11 mm holes, connection: R 3/8"UF AG.
