Tractor parts

Einzelstufe

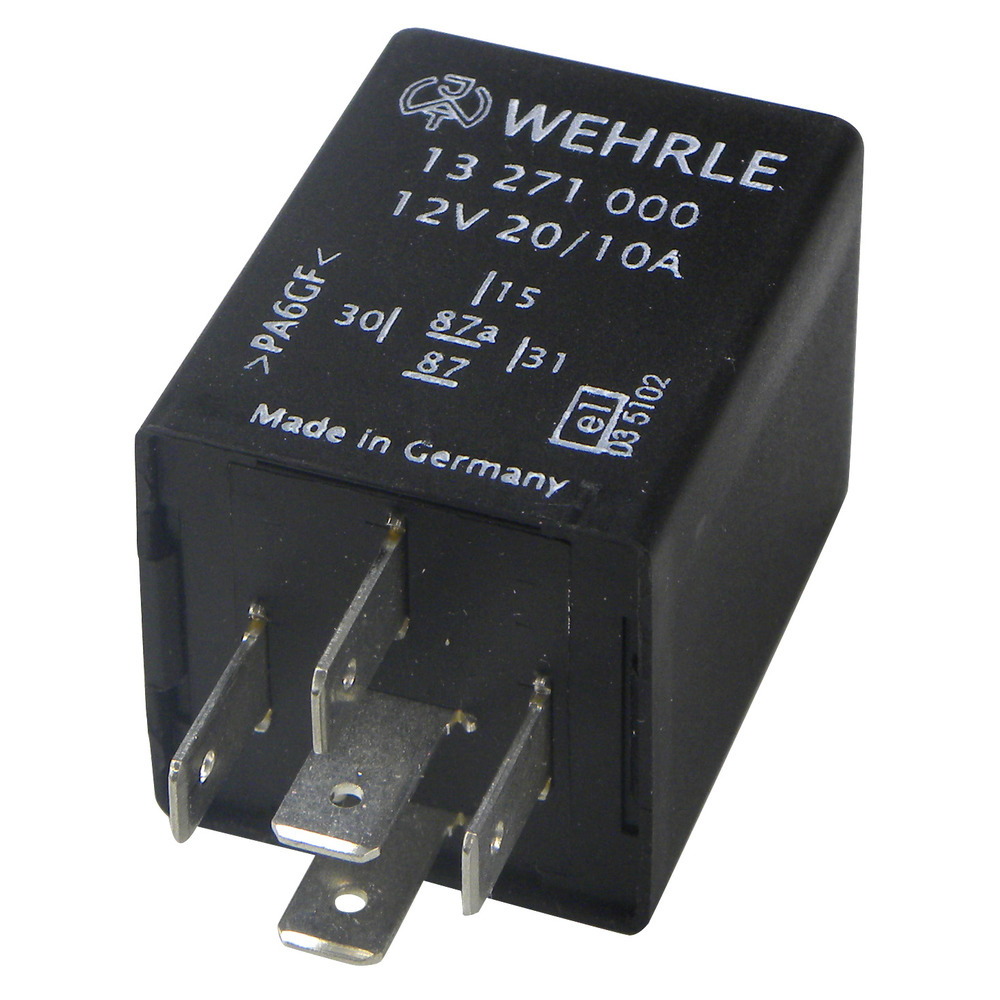

Stepping relays are used where consumers are to be switched on or off using a switch/button, e.g. work lights, seat valves, directional control valves, etc.Ie, if a current is applied to terminal 15 (button pressed once), the relay switches on terminal 87 and holds itself - current on terminal 87 despite releasing the button! When you press the button (impulse) again, the relay switches off again and terminal 87 is de-energized - impulse switch or toggle flip-flop.In the rest position of the relay, terminal 87a is constantly supplied with power and is in one Changeover function with terminal 87.Connections: 30 directly from the battery, continuous positive 87 consumer 1 87a consumer 2, constantly supplied with power over 30 when the relay is in the rest position 31 ground15 of switch/button, switching current 87, 87a changeover function (alternating current on 87 &~ 87a)

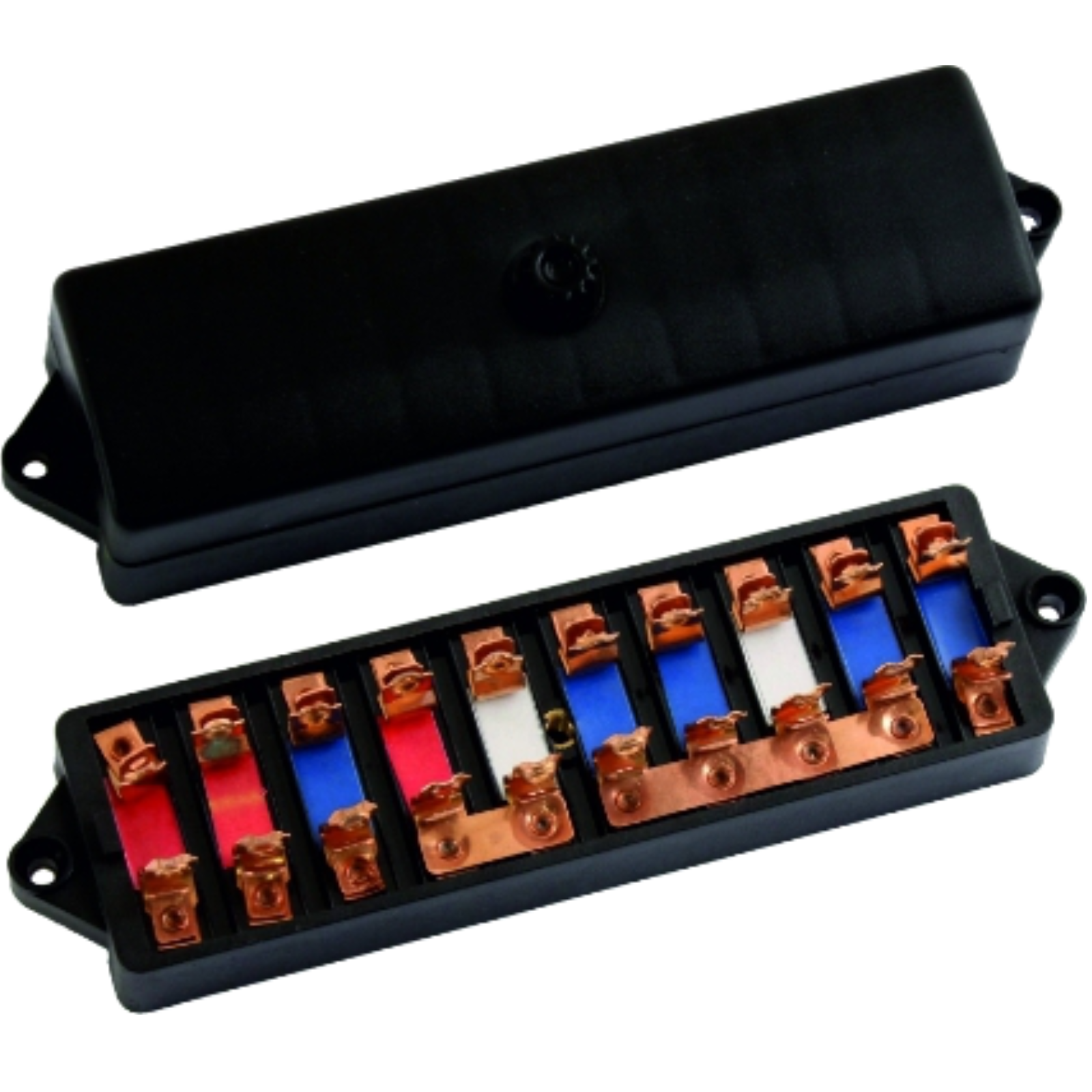

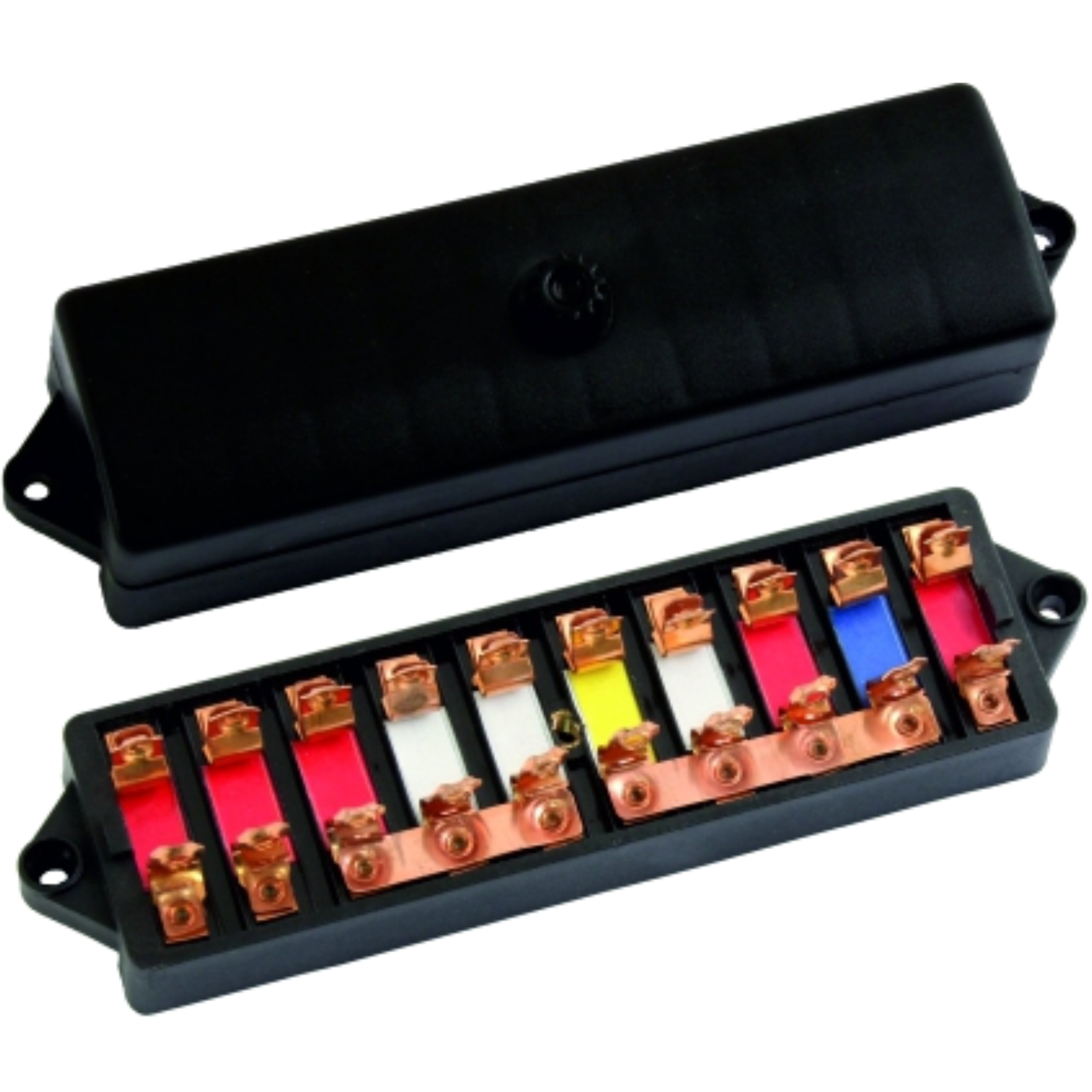

Number of poles: 10

Number of poles: 10

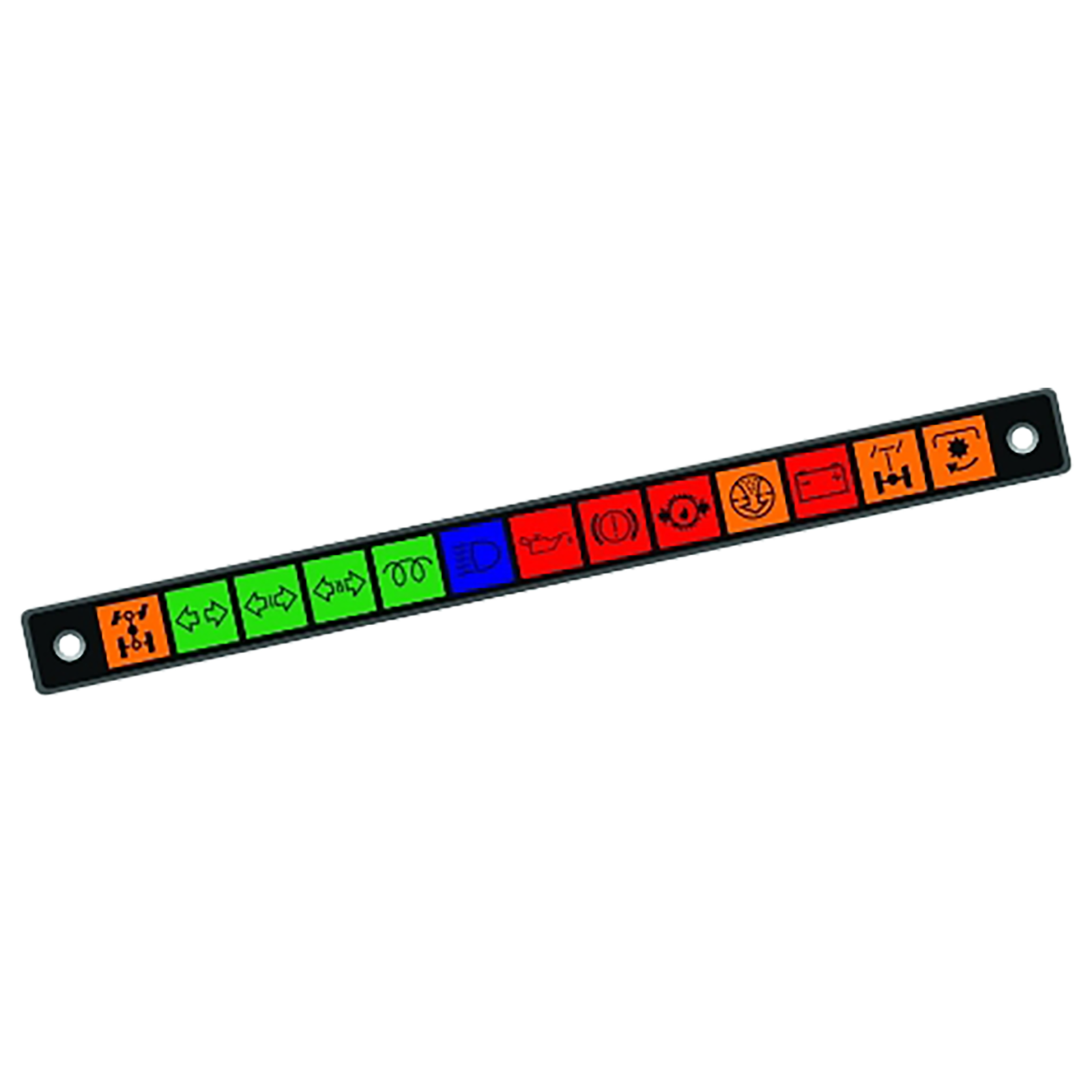

Instrument panel with 13 indicator lights / symbols

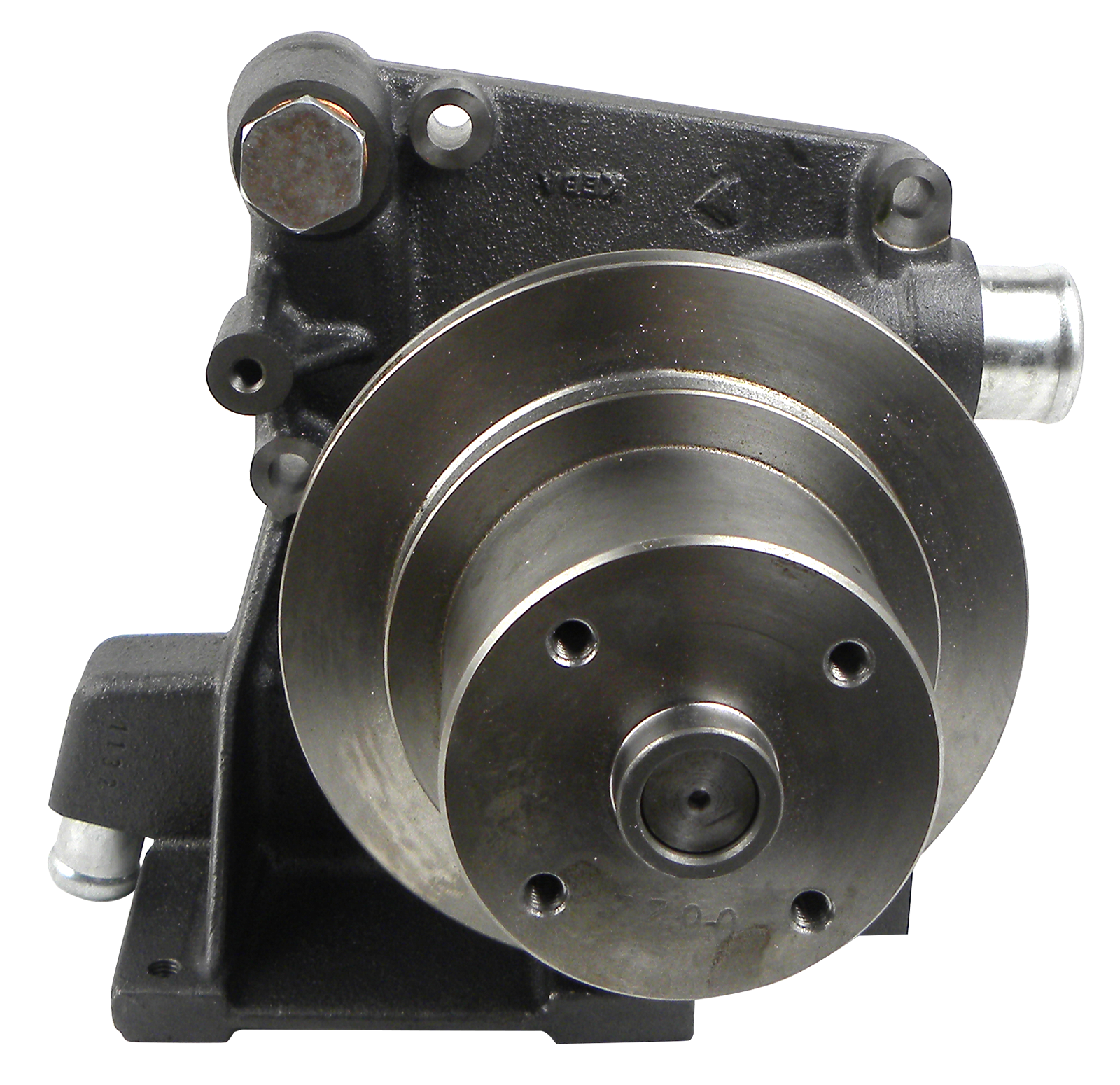

including seal, with heating connection

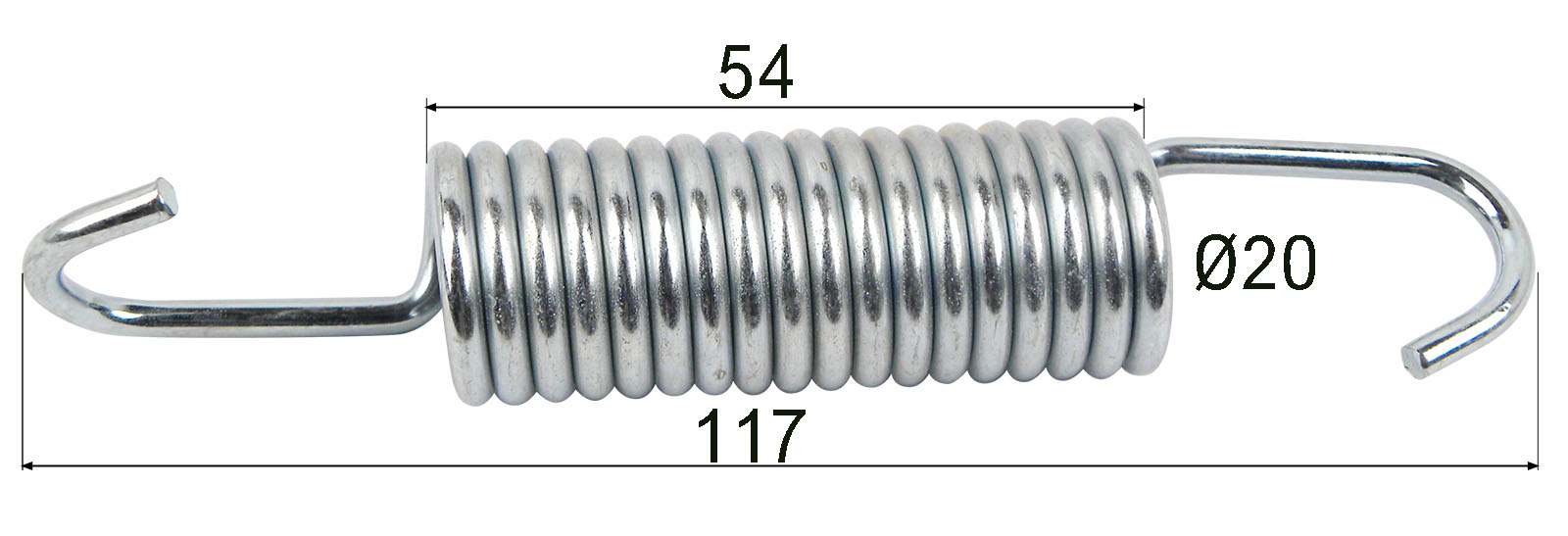

for brake shaft with brake drum

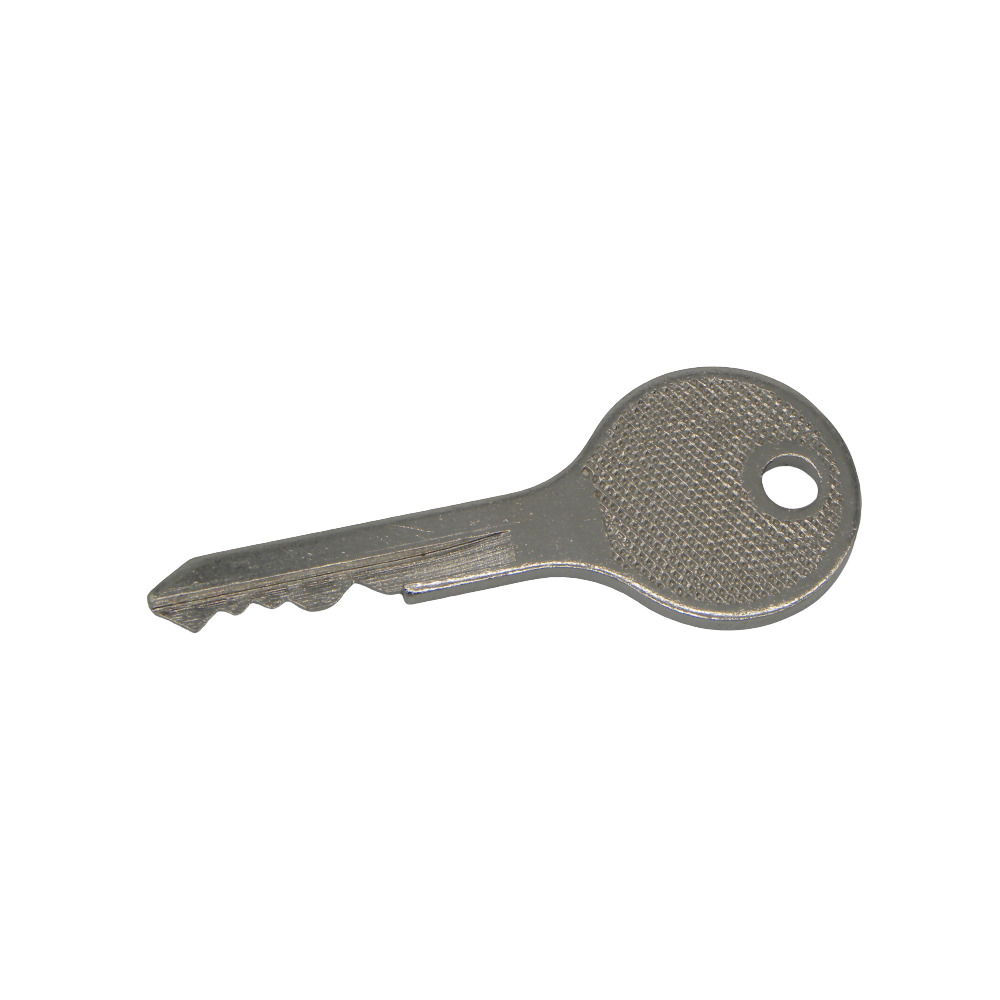

Fits SK1 and SK2 cabin from Steyr

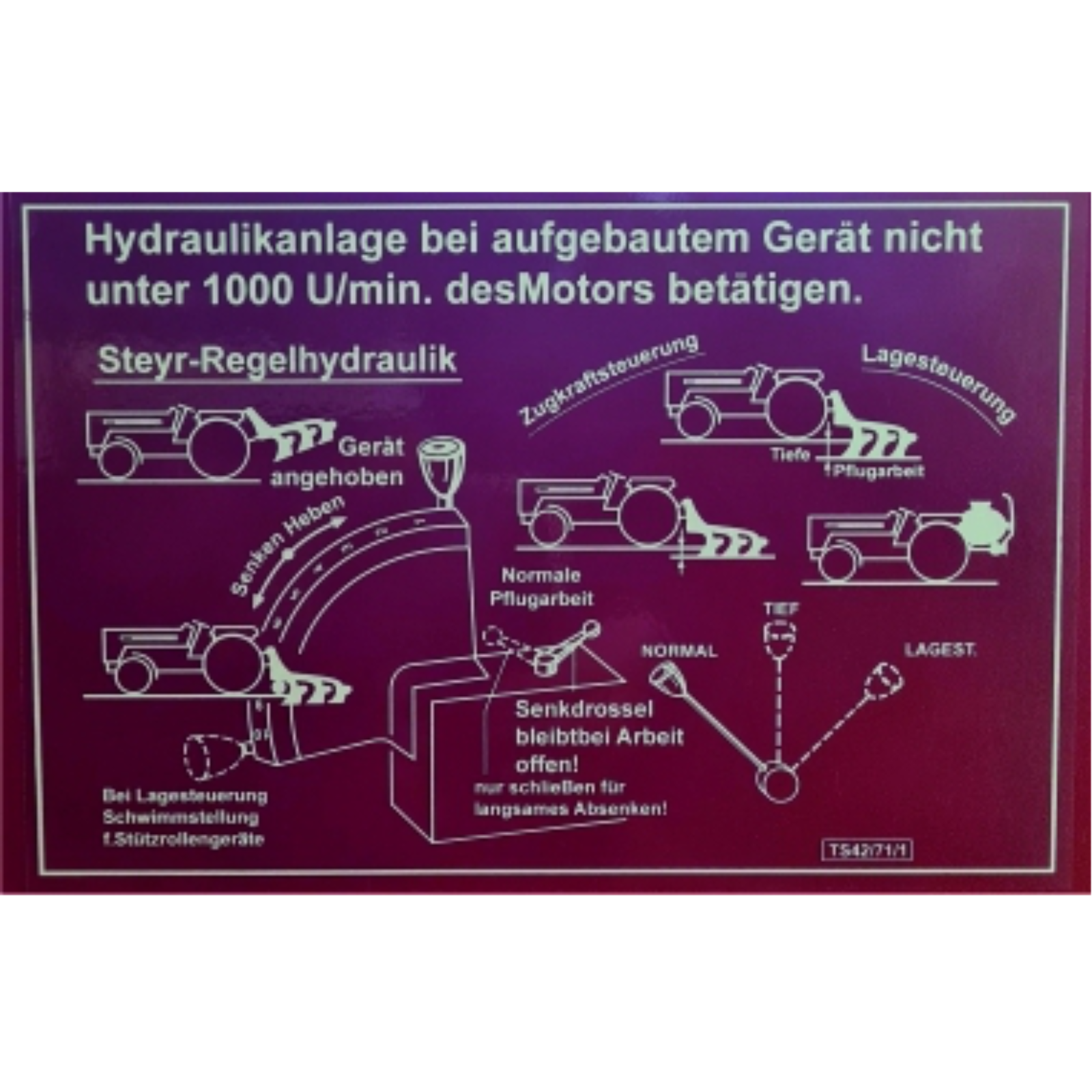

“Control hydraulics” sticker to describe the function of the control hydraulics

ID: 30 mmAD: 35 mmB/H: 30 mm

Inner diameter: 35mmOuter diameter: 40mmLength: 55mm ~

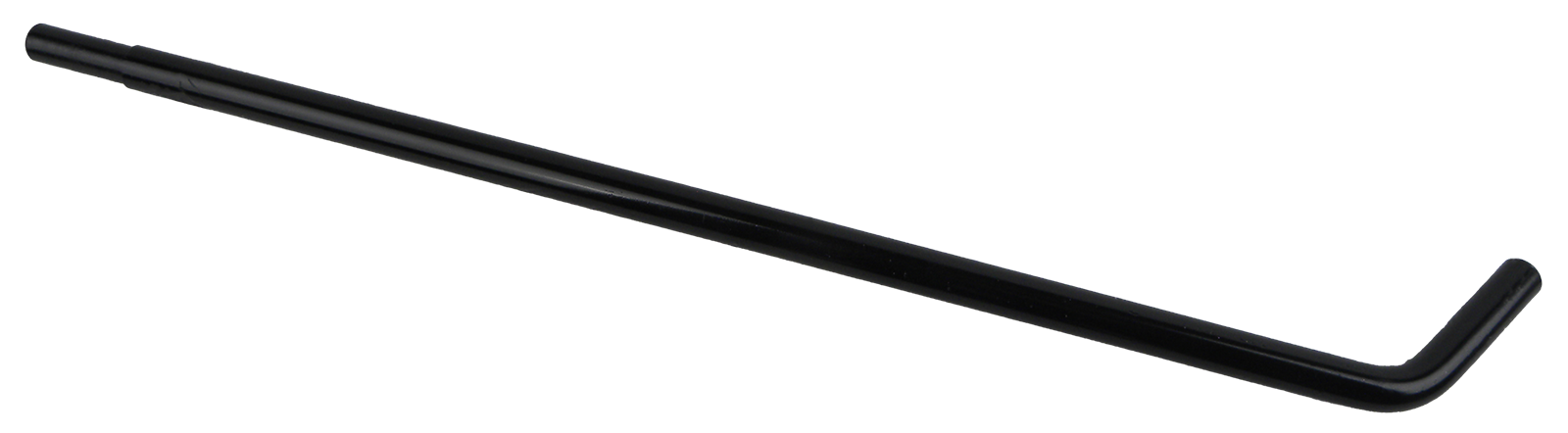

Length: 410mm, diameter 10mmDesign: Color painted black ~

Dimensions: approx. 154x35 mm

Length: 340 mm

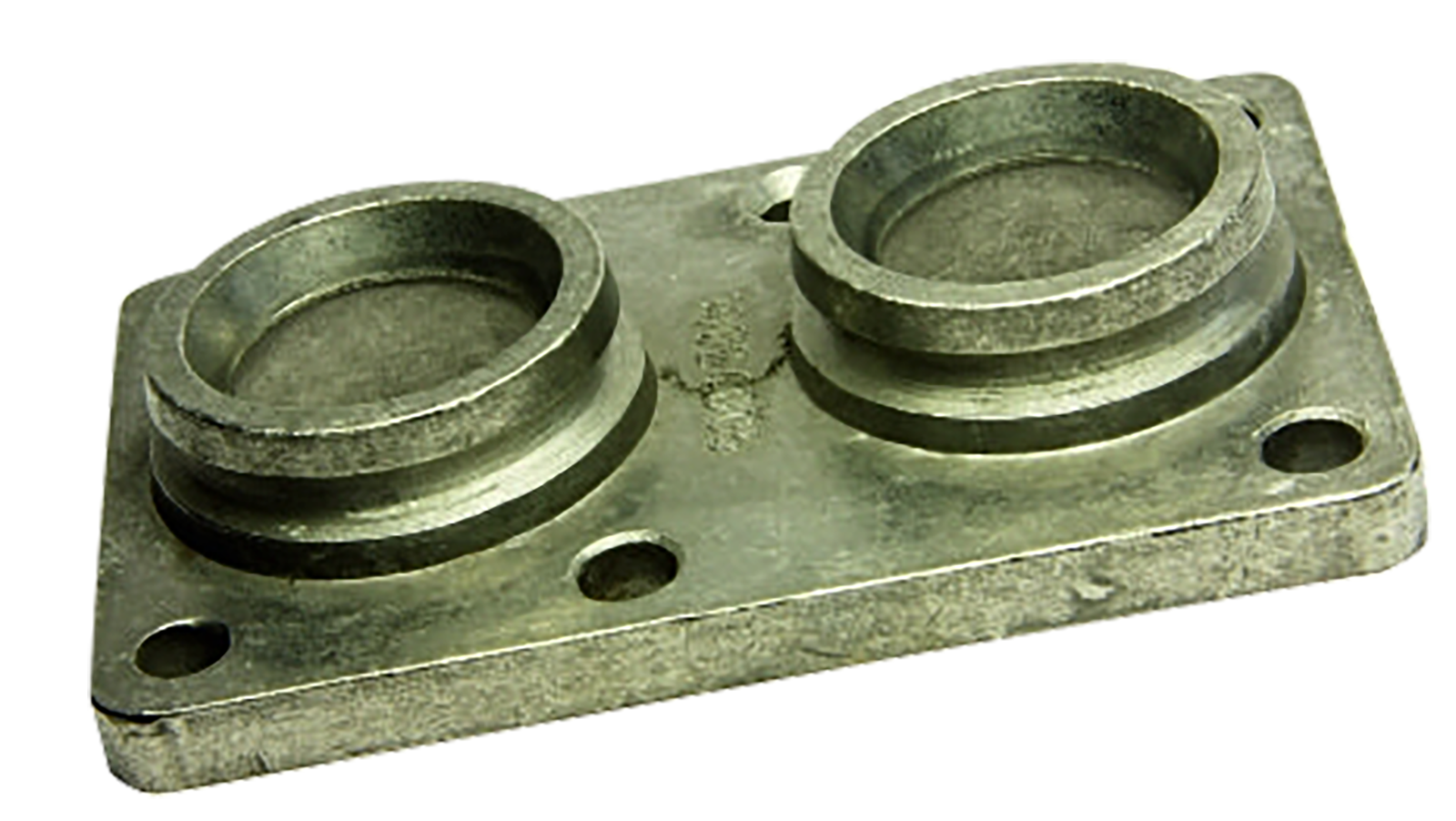

double-switch cover

including seal and cover???Does not fit Steyr 942, 948 with heating?????has no heating connection

Suitable for Stabilus LIFT-O-MAT. Complete with fastening elements, end position cushioned (no damage to the hinges).This is just a small excerpt from the LIFT-O-MAT gas pressure spring program. We can supply you with the right gas pressure spring for many tractor types. Please provide us with the 6-digit Stabilus number that is printed on the gas spring.

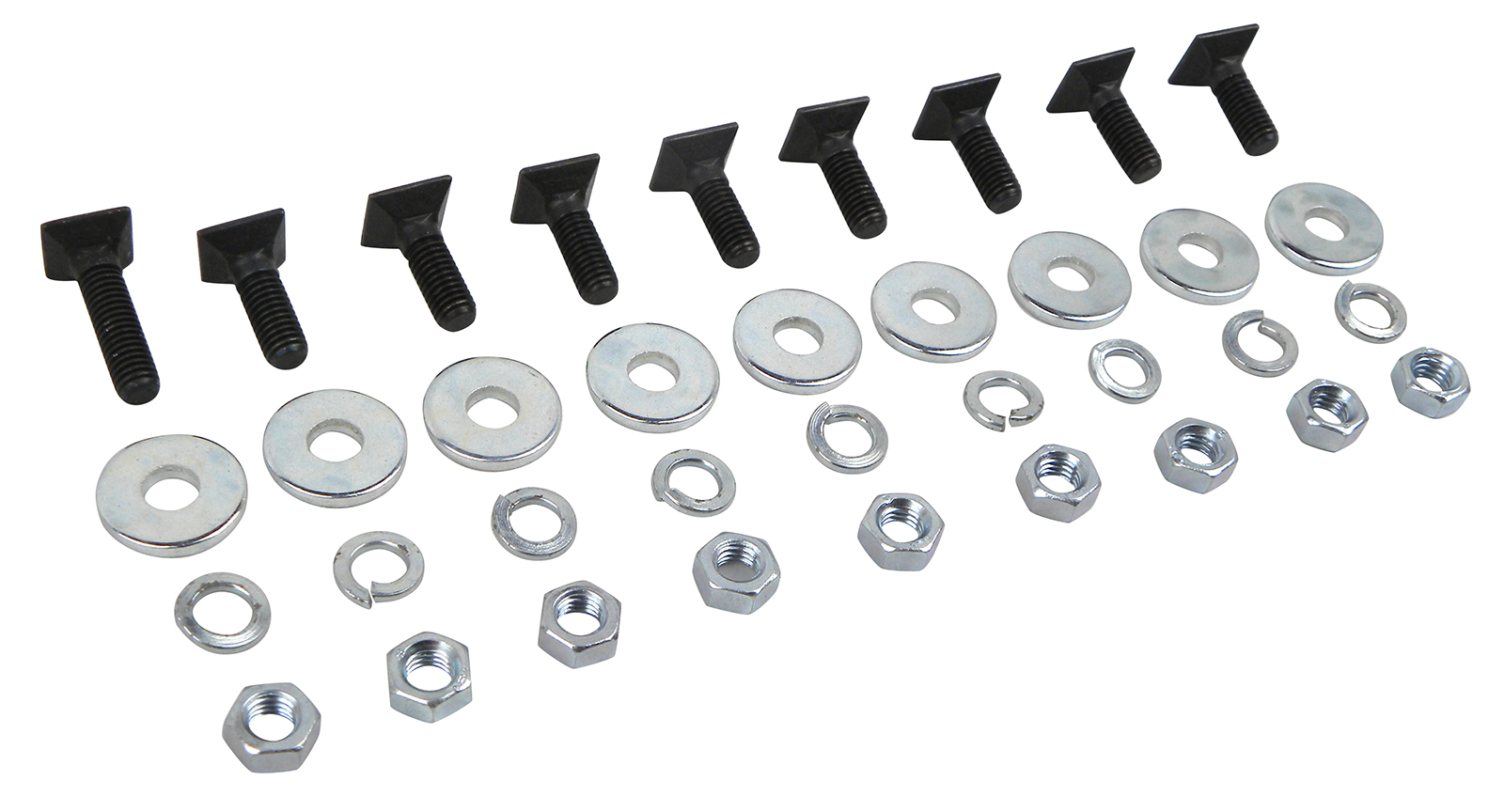

Schraubensatz für Zierleiste oben passend für die Steyr Jubiläumsserie

Passend für die vordere Zierleiste

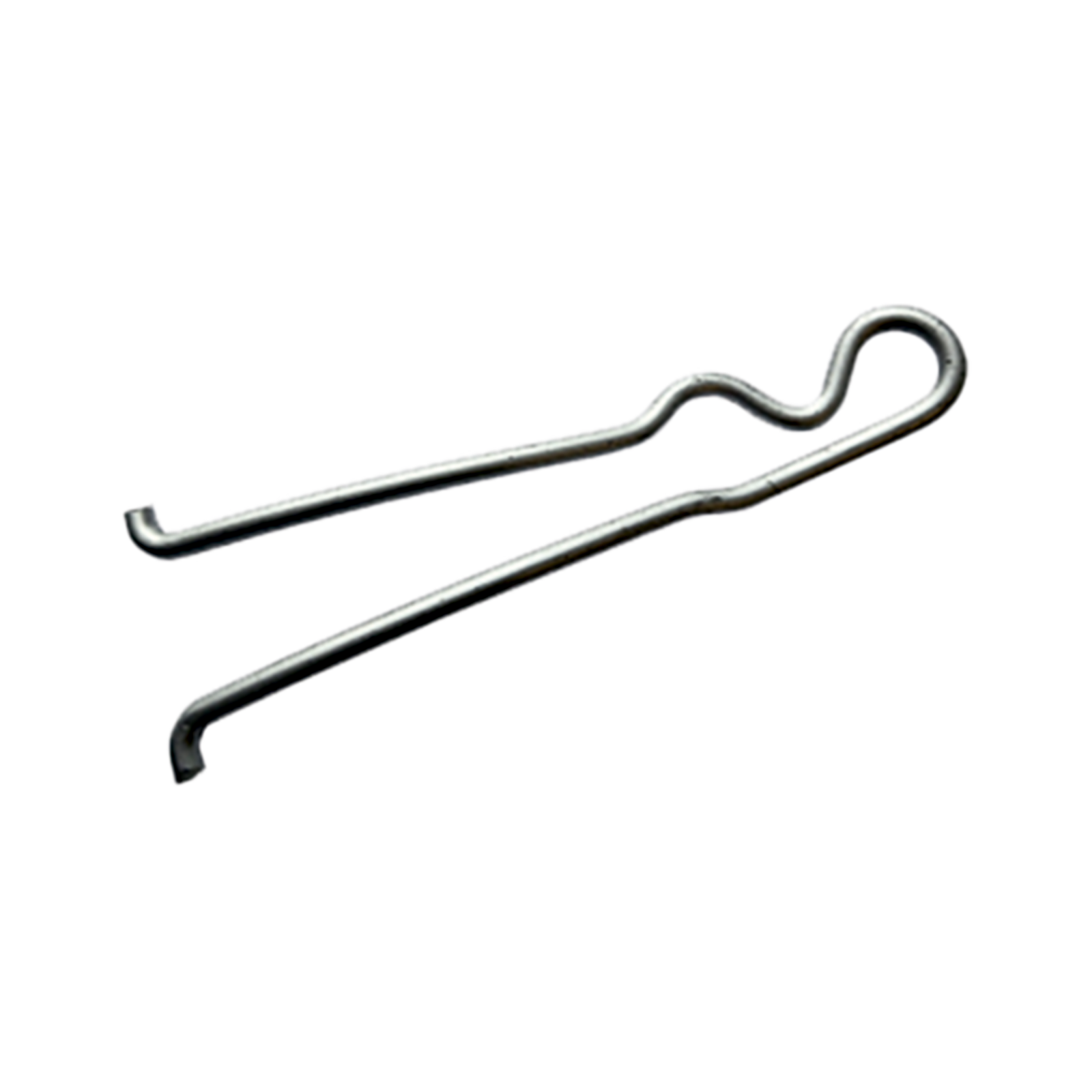

​Door retaining spring for Steyr SK1 cabVersion: left

Dimensions: approx. 110x25 mm Hole spacing: 89 mm

"~"~"~ not suitable for front loader operation"~"~"~

380 mm, metal steering wheel plastic-coated, mount 21.5 mm, with fine teeth.

Version with 6 spokes
