Agricultural machinery
All Products
Inner diameter 8.20 mmV-belt width 9.7 mm Radius 86.00 mm Voltage 14.00V Current 33.00A Type 1 Angle L60 Effective diameter 68, 00 mm Additional information W connection, dustproof Length 56.00 mm
"""suitable for Plus series when converting from DC alternator to alternating current"""Inner diameter 8.20 mmV-belt width 9.7 mm Radius 83.00 mm Voltage 14.00 V < br>Current strength 34.00 A Type 2 Angle L60 Effective diameter 62.00 mm Length 70.00 mm
Inner diameter (d) 8.20 mmV-belt width (B) 9.7 mm Radius (R) 83.00 mm Voltage 14.00V Current 55.00A Type 2 Angle (W) L60 Effective diameter (DW) 68.00 mm Additional information W connectionLength (L) 86.00 mm
Inner diameter.(d) 12.20.mmV-belt width (B) 9.7.mm Radius (R) 85.00.mm Voltage 14.00.V Current 55.00.A Type 2 Angle (W) 0. Effective diameter (DW) 80.00.mm Length (L) 70.00.mm
Inner diameter 12.20 mm Radius 85.00 mm Voltage 14.00 V Current 65.00 A Type 2 Angle 0
Inner diameter 10.20 mm Radius 86.00 mm Voltage 14.00 V Current 65.00 A Type 1 Angle 0. Additional information W connection, dustproof < br>Length 50.80 mm
W connection, length: 56 mm, inner : 8.2 mm, radius: 86 mm, voltage: 14V, current: 65A, type: 1, angle: L60
Passend für Wechselstromlichtmaschine
Passend für Gleichstromlichtmaschine
Kit for converting DC to AC alternatorV-belt pulley width: 13mmAlternator 12 volts 45AScope of delivery: alternator, cable set, start switch and charging control lamp ~
dustproof, length: 56 mm, inner : 8.2 mm, V-belt width: 9.7 mm, radius: 86 mm, voltage: 14V, current: 33A, type: 1, angle: L60, angle : 65mm
Passend zu Massey Ferguson 35, 135
Required by law since January 1, 1993. To be used in place of the front number plate. 537x137mm

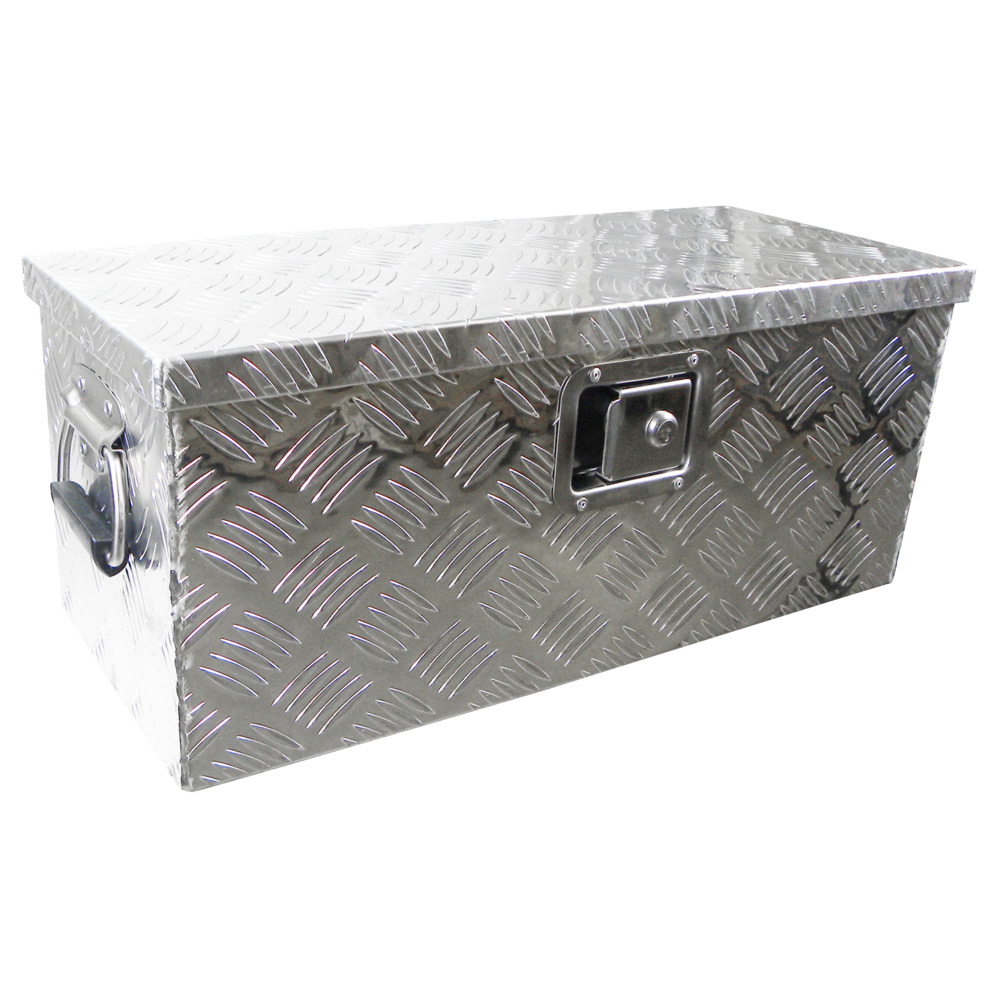

Stable tool box made of aluminum checker plate, with integrated lock, 2 keys, gas damper, 2 carrying handlesThe lid seal prevents water from enteringThe aluminum tool box is an all-rounder. This storage box has enormous stability.

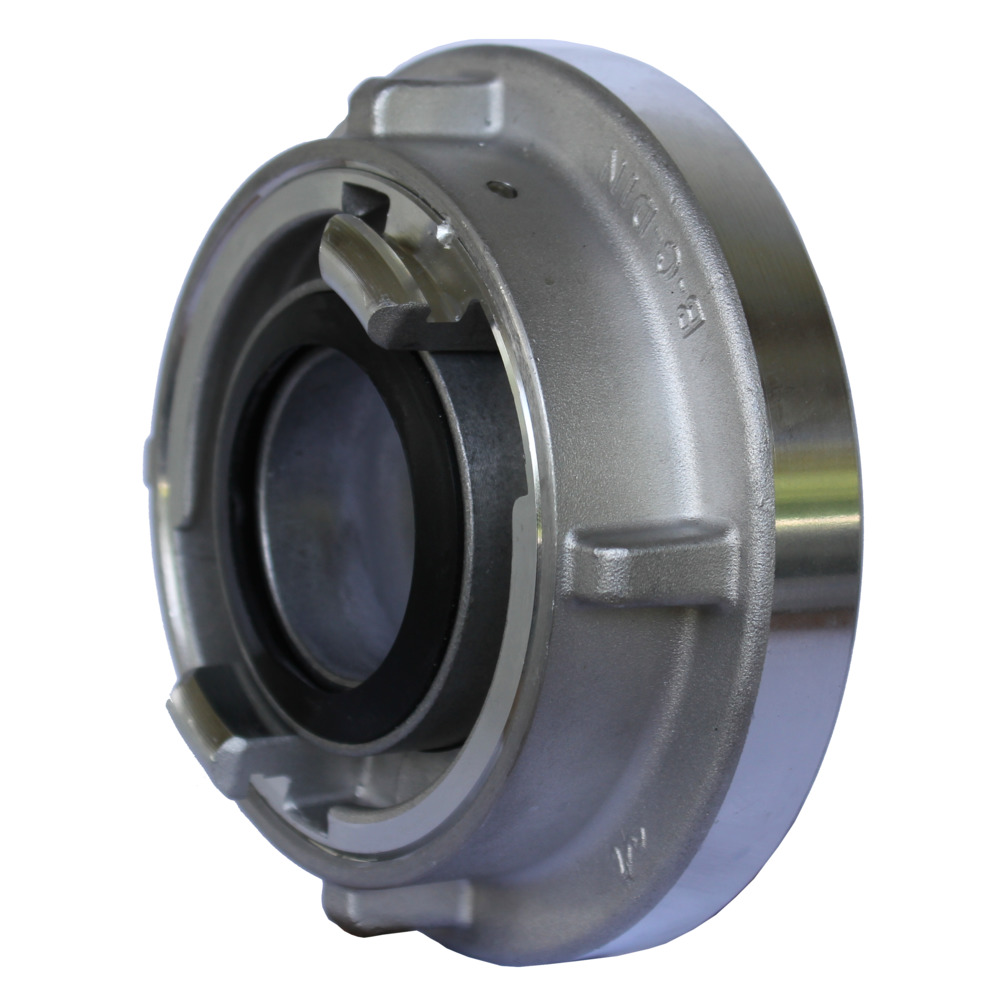

Aluminum transition piece Storz to Storz with cast lugs. The seal is made of nitrile rubber. Made in Germany.
The angular gear 1018 is a compact and lightweight gear designed for use in circular saws. The gearbox has a gear ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is consistent with the direction of rotation of the input shaft (viewed from the visible end of the shaft). The angle gearbox is equipped with a high-strength aluminum housing, a PTO shaft profile 1 3/8 x 6 at the input and an output shaft with a diameter of 25 mm. The gearbox can accommodate torque peaks of up to 2 times the rated torque. of the nominal torque. ~We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. Please note that before putting the gearbox into operation, fill and check the oil level. The maximum power transmission is 7kW at 540rpm and 11kW at 1000rpm. Compact and light High-quality workmanship High torque Long service life Universal applications< /li>
The angular gear 1018 is a compact and lightweight gear designed for use in circular saws. The gearbox has a gear ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is opposite to the direction of rotation of the input shaft (viewed from the visible end of the shaft). The angle gearbox is equipped with a high-strength aluminum housing, a PTO shaft profile 1 3/8 x 6 at the input and an output shaft with a diameter of 25 mm. The gearbox can accommodate torque peaks of up to 2 times the rated torque. We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. Attention, fill and check the oil level before putting the gearbox into operation. ~The maximum power transmission is 7kW at 540rpm and 11kW at 1000rpm.Compact and light< li>High-quality workmanshipHigh torqueLong service lifeUniversal applications
The angular gear 1020 is a compact and lightweight gear designed for use in circular saws. The gearbox has a gear ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is consistent with the direction of rotation of the input shaft (viewed from the visible end of the shaft). The angle gearbox is equipped with a high-strength aluminum housing, a PTO shaft profile 1 3/8 x 6 at the input and an output shaft with a diameter of 25 mm. The gearbox can accommodate torque peaks of up to 2 times the rated torque. of the nominal torque. ~We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. Please note that before putting the gearbox into operation, fill and check the oil level. ~ ~The maximum power transmission is 9kW at 540rpm and 13kW at 1000rpm. Compact and light High-quality workmanship High torque Long service life Universal applications < /ul>
The angular gear 1020 is a compact and lightweight gear designed for use in circular saws. The gearbox has a gear ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is opposite to the direction of rotation of the input shaft (viewed from the visible end of the shaft). The angle gearbox is equipped with a high-strength aluminum housing, a PTO shaft profile 1 3/8 x 6 at the input and an output shaft with a diameter of 25 mm. The gearbox can accommodate torque peaks of up to 2 times the rated torque. of the nominal torque. ~We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. Attention, fill and check the oil level before putting the gearbox into operation. ~ ~ The maximum power transmission is 9kW at 540rpm and 13kW at 1000rpm.Compact and lightweightHigh-quality workmanshipHigh torqueLong service lifeUniversal applications
The 2020 angular gearbox is a compact gearbox designed for heavy-duty use. The gearbox has a transmission ratio of 1:2.78, which means that the speed at the output of the gearbox is 2.78 times higher than the speed at the input. The direction of rotation of the output shaft is reversed or the same as the direction of rotation of the input shaft (looking at the visible shaft end). The angular gearbox is equipped with a robust cast housing, a 1 3/8 x 6 PTO profile at the input and an output shaft with a diameter of 25 mm (order no. 65792) and 30 mm (order no. 59917). The gearbox can absorb torque peaks of up to 2 times the nominal torque. We would like to point out that an overload protection device must be used in accordance with the performance data of the gearbox. The maximum power transmission is 9kW at 540rpm and 14kW at 1000rpm.Compact and robustHigh-quality workmanshipHigh torqueLong service lifeUniversal applications
Maximum power transmission for professionals: Bondioli & Pavesi S2050 gearboxesWhen it comes to absolute reliability in continuous operation, farmers and machine builders worldwide rely on drive technology from Bondioli & Pavesi. With the S2050 series right-angle gearboxes, you get robust solutions made of high-quality grey cast iron, specially developed for the toughest mechanical requirements.Why the S2050 series?These gearboxes form the backbone of many agricultural machines – from feed mixers to soil cultivation equipment. They impress with:Maximum load capacity: Thanks to their solid grey cast iron housings, these models offer outstanding stability and vibration damping.Precise performance: The S2050 is the all-rounder for medium loads with an input power of up to 37 kW (50 hp) at 540 rpm.Versatile gear ratios: With common gear ratios (e.g. 1.91:1 or 1:1), the gearboxes can be precisely adapted to your machine requirements.Durability through quality: Developed to the highest industry standards for minimal maintenance intervals and maximum service life.Technical highlights at a glance, transmission ratio 1:1,46Max. power (540 rpm) approx. 37 kW / 50 hpMax. output torque up to 446 Nm (at 540 rpm)Material High-quality grey cast ironApplication Fertiliser spreaders, small mowersEnsure original quality for your drive!Whether as original equipment or as a durable spare part, with Bondioli & Pavesi you are choosing efficiency and safety in the field.
